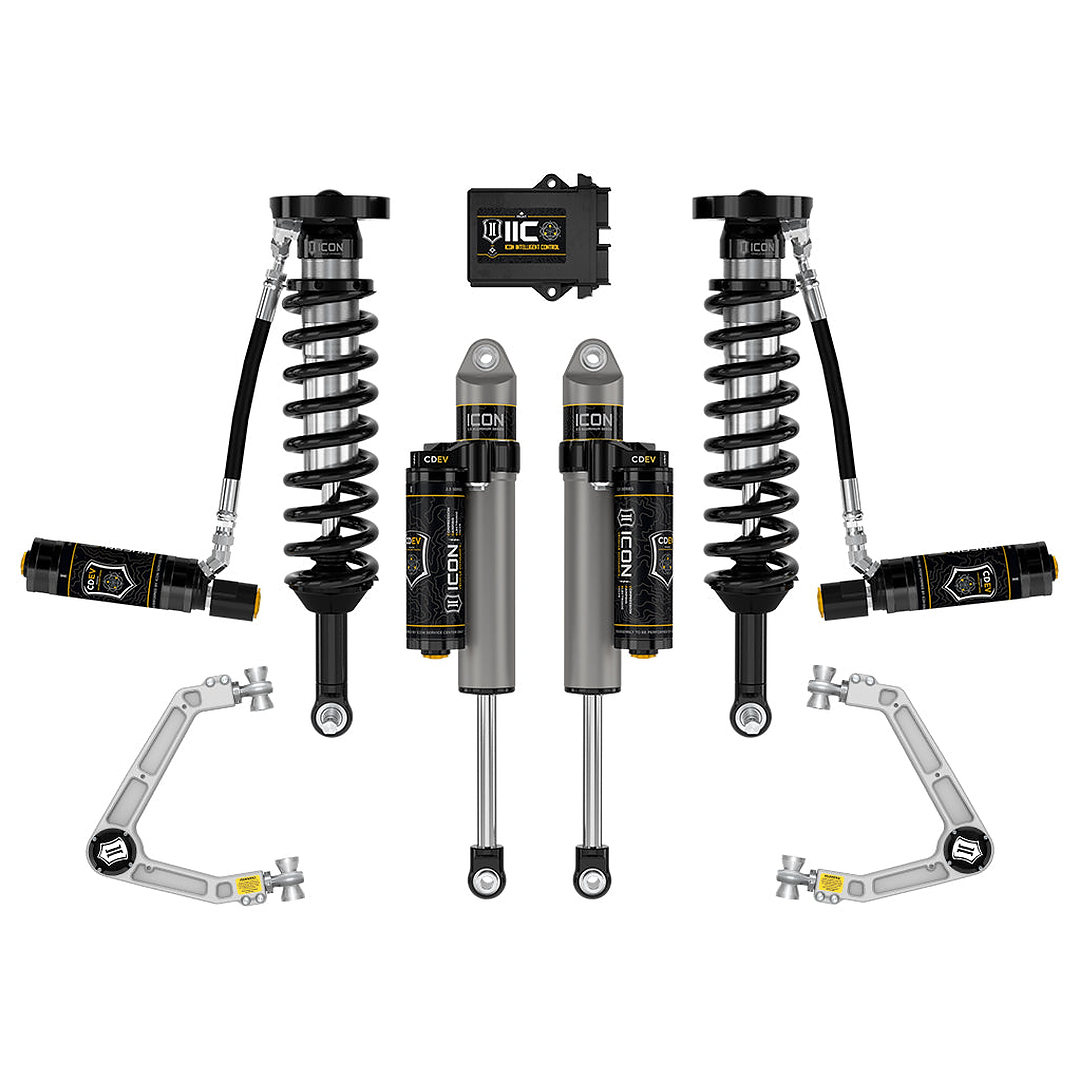

ICON 2023-2026 Chevrolet Colorado WT, LT, & Z71, 1.75-2.5" Lift, Stage 6 Suspension System, Billet (K73096)
The ICON Vehicle Dynamics Stage 6 Suspension System is a premium performance upgrade engineered for 2023–2026 Chevrolet Colorado WT, LT, and Z71 models. Designed to increase wheel travel, improve damping control, and enhance overall ride quality, this system features 2.5 Series CDEV-equipped remote reservoir coilovers, billet aluminum upper control arms, and ICON Intelligent Control technology. Built for drivers who demand advanced suspension capability, this system delivers exceptional comfort, durability, and performance across both daily driving and off-road environments.
Adjustable 1.75–2.5” Front Lift for Improved Clearance
The 2.5 Series extended travel coilovers provide adjustable lift from 1.75” to 2.5” over stock, allowing the installation of larger wheels and tires while improving ground clearance. This adjustability enhances both vehicle stance and off-road capability without sacrificing ride comfort.
2.5 Series Coilovers with CDEV Remote Reservoir Technology
The front coilovers feature remote reservoirs equipped with Compression Damping Electronic Valve (CDEV) technology, providing improved cooling performance and consistent damping control. The extended travel design increases front wheel travel by approximately 20% over stock, delivering improved suspension articulation and control across challenging terrain.
ICON Intelligent Control for Active Damping Adjustment
This system includes ICON Intelligent Control (IIC), which uses onboard sensors to monitor chassis movement and G-forces, making near-instant compression damping adjustments automatically. Once configured through the mobile app, the system continues adjusting in real time without driver input, improving comfort and control in changing driving conditions.
Billet Aluminum Upper Control Arms with Delta Joint PRO
High-strength billet aluminum upper control arms improve suspension geometry while maintaining factory alignment specifications. ICON’s Delta Joint PRO provides increased articulation, improved durability, and a rebuildable design with up to 90 degrees of movement for maximum suspension travel.
Balanced Rear Performance with 2.5 Series Piggyback Shocks
ICON 2.5 Aluminum Series rear piggyback reservoir shocks provide vehicle-specific valving for improved damping control and heat dissipation. These shocks work together with the front coilovers to maintain balanced handling and consistent ride quality across all terrain types.
Extended Travel Design for Increased Capability
This Stage 6 system increases total front suspension travel to approximately 9.5”, improving off-road articulation and vehicle stability. The extended travel design enhances obstacle clearance and overall suspension performance during aggressive driving or trail use.
Engineered for Bolt-On Installation and Long-Term Reliability
Designed as a complete bolt-on system, this suspension upgrade installs without cutting or welding. Durable aluminum and steel components provide long-term reliability, while fully serviceable shock components allow future maintenance and tuning as needed.
Specifications
- Vehicle Fitment: 2023–2026 Chevrolet Colorado WT, LT, & Z71
- SKU: K73096
- Lift Height: 1.75"–2.5" Adjustable Front Lift
- Front Shocks: ICON 2.5 Series Extended Travel Coilovers with CDEV Remote Reservoirs
- Rear Shocks: ICON 2.5 Aluminum Series CDEV Piggyback Reservoir
- Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
- Suspension Travel: Approximately 20% Increase in Front Wheel Travel
- Total Front Travel: Approximately 9.5"
- Damping Control: CDEV Electronic Compression Adjustment
- Technology: ICON Intelligent Control (IIC)
- Shock Shafts: 7/8"
- Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
- Recommended Tire Size: Up to 32" Diameter Tires
- Wheel Fitment: Compatible with OEM Wheels and Tires
- Serviceability: Fully Rebuildable and Serviceable Shocks
- Install Type: 100% Bolt-On System
- Fitment Notes: Fits WT, LT, and Z71 Models Only
- Compatibility Note: Not Compatible with Trail Boss or ZR2 Models
- Use Case: Daily Driving, Overlanding, Off-Road Performance
