ICON Vehicle Dynamics

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD, Diesel, 4.5" Lift, Stage 5 Suspension System w/ Radius Arms & Expansion Packs (K65904RL)

SKU ICOK65904RL
$8,382.75
$8,382.75

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Course & Trail, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

  • 14-Day Return Window: You can return unused, undamaged items in original packaging within 14 days of receiving your order.
  • Free Return Shipping: We cover return shipping costs for eligible returns and exchanges.
  • Change of Mind? Return within 7 days for a refund (25% restocking fee applies).
  • Defective or Wrong Item? Contact us within 48 hours—we’ll replace it or refund you in full.
  • Didn’t Receive Your Order? Let us know and we’ll investigate or send a replacement.
  • Exclusions: Custom items, perishables, intimate goods (unless unopened), gift cards, and digital products are non-returnable.

Refunds are processed to your original payment method within 14 days of approval.

Questions? Reach us at support@courseandtrail.com or +1 463-465-2453 (Mon–Fri, 9am–5pm EST)

Product Description

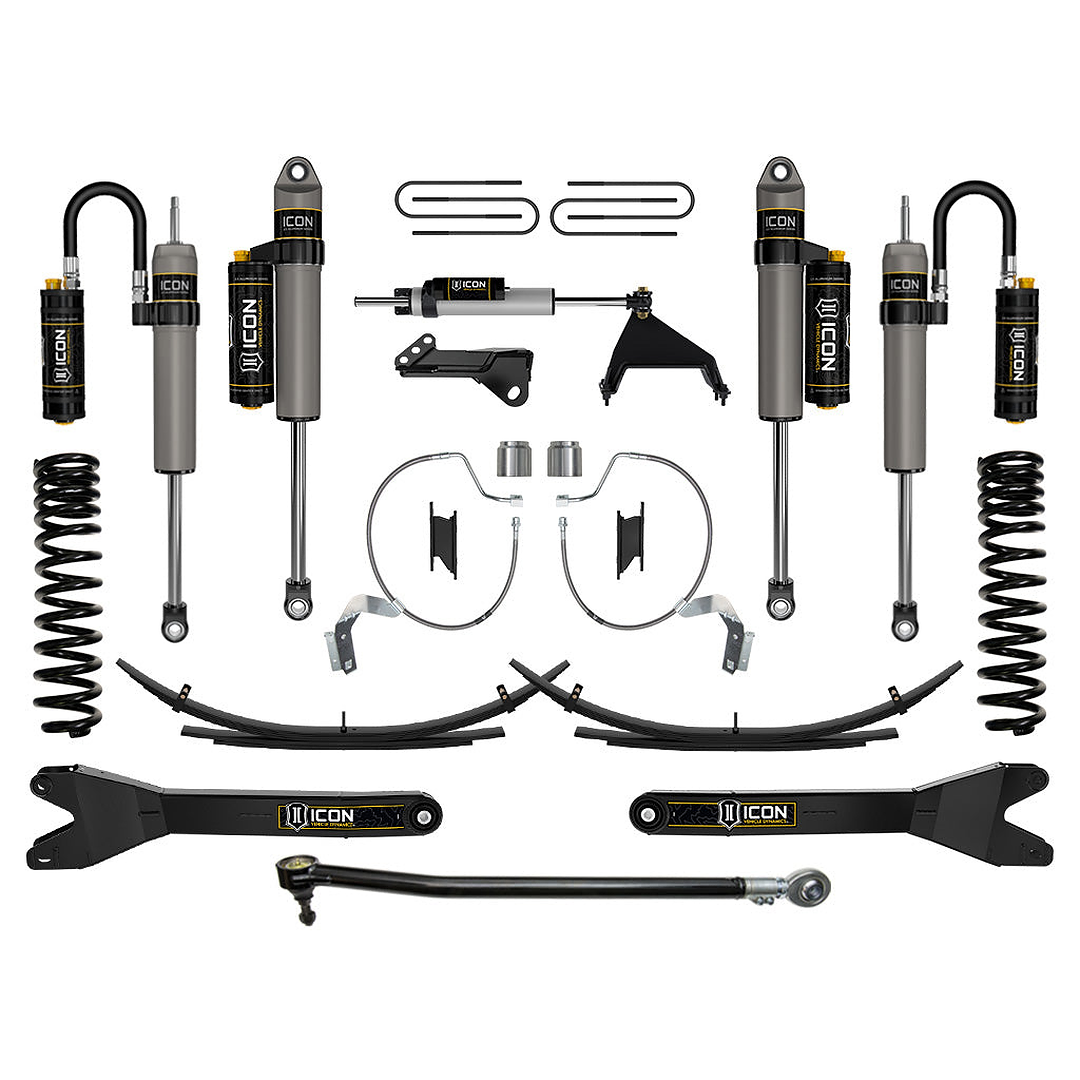

ICON 2023-2025 Ford F-250/F-350 Super Duty 4WD Diesel 4.5" Lift Stage 5 Suspension System w/ Radius Arms & Expansion Packs (K65904RL)

The ICON Vehicle Dynamics Stage 5 Suspension System is a premium, high-performance upgrade engineered for 2023–2025 Ford F-250 and F-350 Super Duty 4WD diesel trucks. Designed for maximum capability, this system significantly improves wheel travel, ride quality, and damping control while maintaining excellent towing and hauling performance. Featuring remote reservoir coilovers, fabricated radius arms, and rear expansion packs, it delivers a complete suspension solution for demanding work and off-road environments.

4.5” Lift for Maximum Stance and Clearance

This system provides a 4.5-inch lift designed to level and elevate your Super Duty, allowing for larger wheel and tire fitments while improving ground clearance and approach angles for off-road use.

2.5 Series Remote Reservoir Shocks with CDCV

ICON 2.5 Aluminum Series remote reservoir shocks deliver exceptional damping performance with increased oil capacity for improved heat dissipation. The CDCV (Compression Damping Control Valve) system allows 10 levels of external compression adjustment for fine-tuning ride quality based on load and terrain.

Fabricated Radius Arms for Strength and Geometry

Heavy-duty fabricated radius arms replace factory components with a stronger design that improves caster adjustment, increases tire clearance at full steering lock, and eliminates the need for drop brackets, helping maintain ground clearance under the chassis.

Track Bar System for Steering Precision

The included track bar drop bracket and adjustable track bar work together to properly center the axle, reduce bump steer, and improve overall steering response and handling both on-road and off-road.

Leaf Spring Expansion Packs for Rear Performance

Rear expansion packs provide approximately 2 inches of lift while improving load support, reducing axle wrap, and enhancing ride quality under towing or hauling conditions.

Steering Stabilization and Brake Upgrades

The system includes a high-performance steering stabilizer with a 2.5 Aluminum Series shock and stainless steel extended brake lines to improve steering control, reduce feedback from larger tires, and maintain safe braking performance.

Engineered for Heavy-Duty and Off-Road Use

ICON designed this Stage 5 system to excel in demanding environments including towing, job sites, gravel roads, and aggressive off-road terrain while maintaining comfort and stability for daily driving.

Specifications

  • Vehicle Fitment: 2023–2025 Ford F-250/F-350 Super Duty 4WD Diesel
  • Lift Height: 4.5" Front Lift / ~2" Rear Lift (Expansion Packs)
  • Front Shocks: ICON 2.5 Series Remote Reservoir Shocks w/ CDCV
  • Rear Shocks: ICON 2.5 Series Remote Reservoir Shocks w/ CDCV
  • Front Suspension: Fabricated Radius Arm System
  • Rear Suspension: Leaf Spring Expansion Packs
  • Steering: Adjustable Track Bar + Drop Bracket
  • Steering Stabilizer: ICON 2.5 Series Stabilizer Included
  • Brakes: Stainless Steel Extended Brake Lines Included
  • Damping Adjustment: 10-Position Compression Adjustment (CDCV)
  • Shock Construction: Aluminum Bodies with Remote Reservoirs
  • Recommended Tire Size: Up to 37" (May Require Modifications)
  • Install Type: 100% Bolt-On System
  • Use Case: Towing, Hauling, Off-Road, Daily Driving
