Product Description

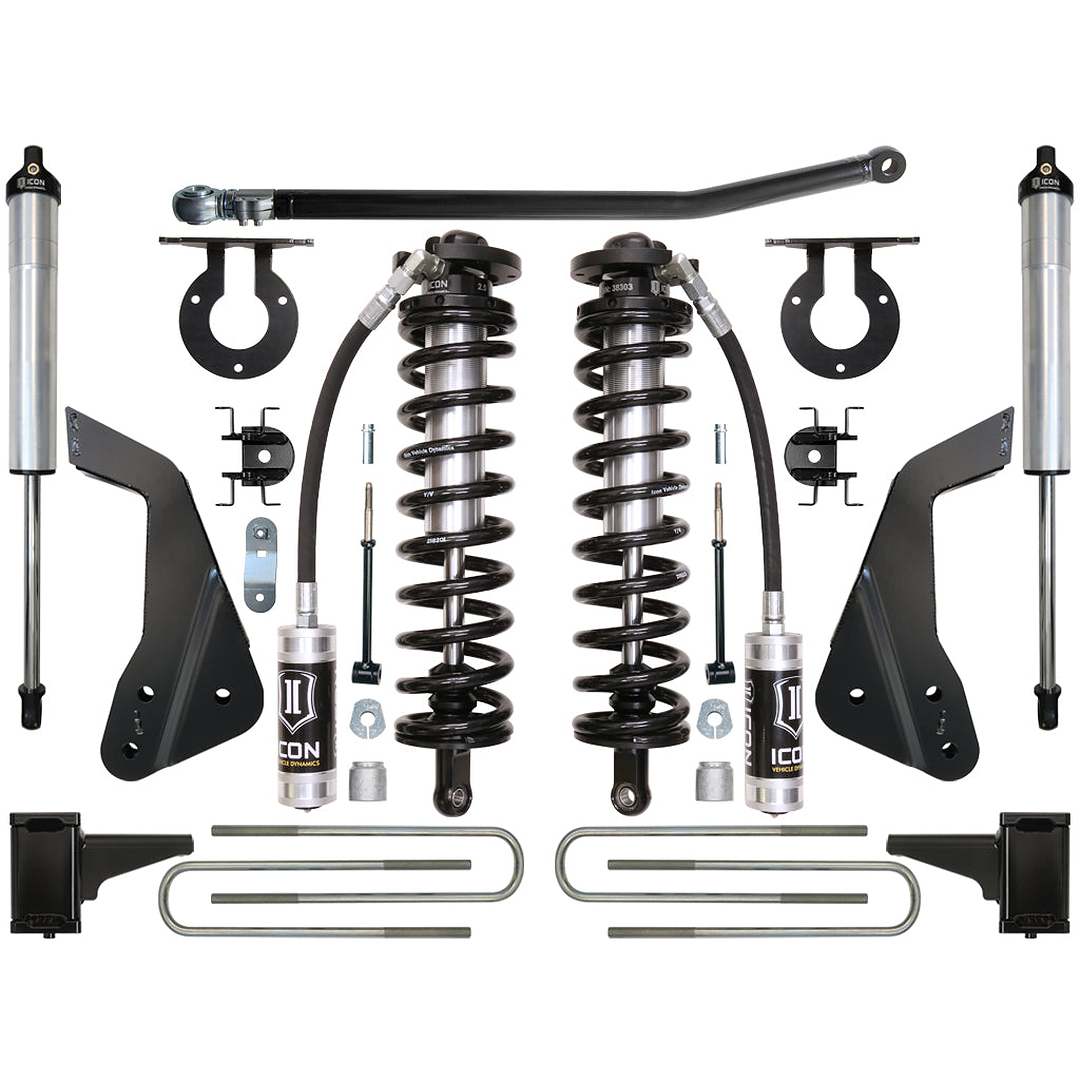

ICON 2005-2010 Ford F-250/F-350 Super Duty 4WD 4-5.5" Lift Stage 2 Coilover Conversion System (K63112)

The ICON Vehicle Dynamics Stage 2 Coilover Conversion System is a premium suspension upgrade designed for 2005–2010 Ford F-250 and F-350 Super Duty 4WD trucks. This system replaces the factory coil spring setup with high-performance coilovers, delivering improved ride quality, increased wheel travel, and superior damping control. Engineered for both on-road comfort and off-road capability, it provides a significant performance upgrade over traditional lift systems.

Adjustable 4–5.5” Lift for Custom Ride Height

This system offers adjustable lift from 4 to 5.5 inches, allowing you to fine-tune your truck’s stance, improve ground clearance, and accommodate larger wheel and tire combinations. The adjustability ensures optimal performance for a variety of driving conditions.

2.5 Series Coilover Conversion Performance

ICON 2.5 Series coilovers are designed to significantly improve damping performance and ride quality over stock suspension. Vehicle-specific valving ensures a smooth, controlled ride both on the highway and in demanding off-road environments.

Bolt-In Design for Easy Installation

This coilover conversion system is engineered as a bolt-in upgrade that mounts directly into the factory coil bucket location. No major fabrication is required, making installation straightforward while delivering professional-level performance gains.

Increased Wheel Travel and Stability

The conversion to a coilover system increases usable suspension travel, reduces body roll, and enhances overall vehicle stability. This results in improved handling, better traction, and greater control across varying terrain.

Expandable Performance Capability

The coilover design allows for the addition of secondary shocks, giving users the ability to further enhance suspension performance for extreme off-road conditions or heavy-duty applications.

Durable, Serviceable Construction

ICON coilovers feature corrosion-resistant CAD-plated shock bodies and large 7/8” shafts for strength and longevity. They are fully rebuildable and revalvable, ensuring long-term performance and serviceability.

Specifications

  • Vehicle Fitment: 2005–2010 Ford F-250/F-350 Super Duty 4WD
  • Lift Height: 4–5.5" Adjustable Lift
  • Front Suspension: ICON 2.5 Series Coilover Conversion
  • Shock Type: Coilover Shocks with Vehicle-Specific Valving
  • Mounting: Bolt-In System (Factory Coil Bucket Location)
  • Suspension Travel: Increased Wheel Travel Over Stock
  • Adjustability: Ride Height Adjustable Coilovers
  • Shock Construction: CAD-Plated Steel Bodies with 7/8" Shafts
  • Serviceability: Fully Rebuildable & Revalvable Shocks
  • Expansion Capability: Supports Secondary Shock Add-On
  • Recommended Tire Size: Up to 37" (May Require Modifications)
  • Install Type: Bolt-On System
  • Use Case: Off-Road, Towing, Daily Driving, Overlanding
