ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 13 Suspension System, Billet, Overland Rear Springs (K53303X)

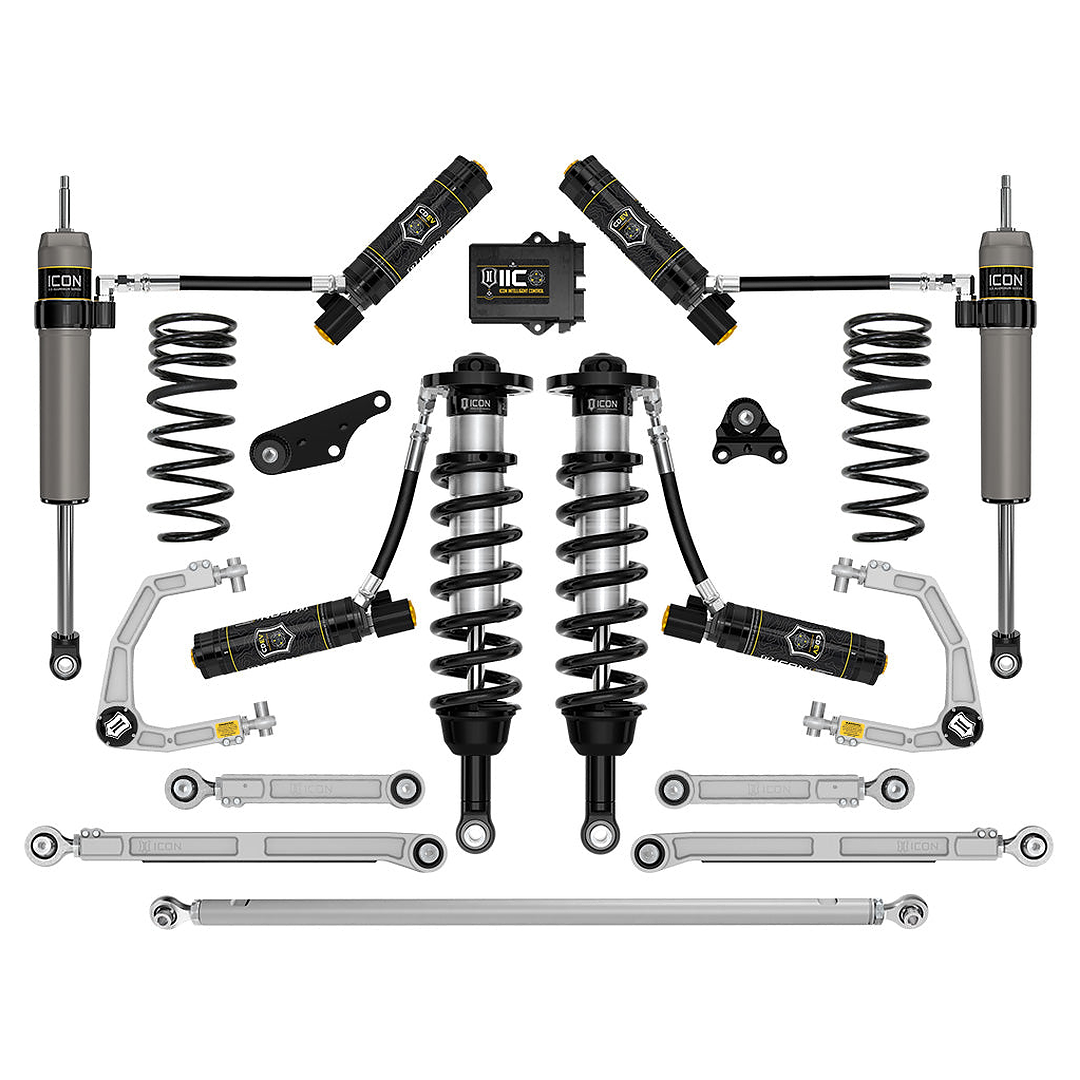

The ICON Vehicle Dynamics Stage 13 Suspension System is a top-tier suspension upgrade engineered for the 2024–2025 Toyota Tacoma, delivering exceptional wheel travel, active damping control, and outstanding ride quality on-road and off-road. Featuring 2.5 Series front coilovers with CDEV-equipped remote reservoirs, billet aluminum upper control arms, billet rear links, an adjustable rear track bar, and overland-spec rear springs designed for additional rear load, this system is built for serious drivers who demand premium performance, comfort, and control in all conditions.
Adjustable 1.25–3” Front Lift for Aggressive Stance
The front coilovers provide adjustable lift from 1.25” to 3” over stock, allowing you to dial in ride height for improved ground clearance, larger wheel and tire fitment, and a more commanding stance. This adjustability helps optimize both appearance and off-road capability for your Tacoma build.
2.5 Series Coilovers with CDEV Remote Reservoirs
ICON’s 2.5 Series front coilovers feature remote reservoirs and Compression Damping Electronic Valve technology for superior cooling, increased oil volume, and consistent damping performance under hard use. This premium shock configuration resists fade during extended off-road driving while delivering excellent control throughout the suspension cycle.
ICON Intelligent Control for Active Damping Adjustment
This Stage 13 system includes ICON Intelligent Control, which uses onboard sensors to monitor chassis movement and G-forces, then makes near-instant compression damping adjustments through the CDEV system. The result is a smarter suspension setup that adapts to changing terrain and driving conditions for improved comfort, stability, and confidence behind the wheel.
Billet Aluminum Upper Control Arms with Delta Joint PRO
The included billet aluminum upper control arms improve front suspension geometry, increase caster and camber adjustment, and enhance component clearance for better overall drivability. Equipped with ICON’s patented Delta Joint PRO, they offer up to 90 degrees of articulation while eliminating bind and maximizing usable suspension travel.
Overland Rear Springs Tuned for Added Weight
The rear dual-rate overland coil springs are designed to provide approximately 0.5” of rear lift over stock with around 600 pounds of additional rear weight. This spring design delivers a softer initial ride rate for comfort, along with a firmer overload rate for load support, bottom-out resistance, and better performance on fully outfitted overland builds.
Billet Rear Links for Strength and Articulation
Billet rear upper and lower links are included to improve rear suspension articulation and allow on-vehicle pinion angle adjustment. Their high-strength construction, combined with greaseless bushings and FK rod ends, delivers an ideal balance of articulation, durability, reduced deflection, and improved ride refinement.
Adjustable Billet Rear Track Bar for Proper Axle Centering
The billet adjustable rear track bar helps re-center the rear axle after lift installation and allows easy on-vehicle length adjustment. This component improves rear suspension performance and ensures the Tacoma maintains proper geometry and handling characteristics after being lifted.
Optimized Front Suspension Geometry and CV Reliability
A front differential drop system is included for 4WD applications to improve CV joint operating angles and maximize front suspension travel. Polyurethane differential mounting bushings help reduce unwanted differential movement under load, improving long-term durability and drivetrain reliability.
Balanced Rear Shock Performance with Integrated Bump Zones
ICON 2.5 Aluminum Series rear shocks with CDEV-equipped remote reservoirs and integrated bump zones are specifically valved for the Tacoma platform. This rear shock setup balances the front coilovers perfectly, enhancing stability, damping control, and ride quality across varied terrain.
Specifications
- Vehicle Fitment: 2024–2025 Toyota Tacoma
- SKU: K53303X
- Lift Height: 1.25"–3" Adjustable Front Lift / ~0.5" Rear Lift with Approximately 600 lbs Added Rear Weight
- Front Shocks: ICON 2.5 Series Coilovers with CDEV Remote Reservoirs
- Rear Shocks: ICON 2.5 Aluminum Series CDEV Remote Reservoir Shocks with Integrated Bump Zones
- Rear Springs: Dual-Rate Overland Rear Coil Springs
- Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Billet Adjustable Rear Track Bar
- Suspension Travel: Increased Wheel Travel Over Stock
- Differential Drop: Included for 4WD Models
- Bushings: Polyurethane Differential Mount Bushings
- Shock Shafts: 7/8"
- Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
- Recommended Tire Size: Up to 33" x 11.50"
- Wheel Fitment: OEM Wheels and Tires Compatible
- Serviceability: Fully Serviceable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Not Compatible with AVS Equipped Vehicles
- Application Note: Requires ADAS Recalibration After Installation
- Use Case: Daily Driving, Overlanding, Off-Road Performance
