ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 13 Suspension System, Tubular, Overland Rear Springs (K53303TX)

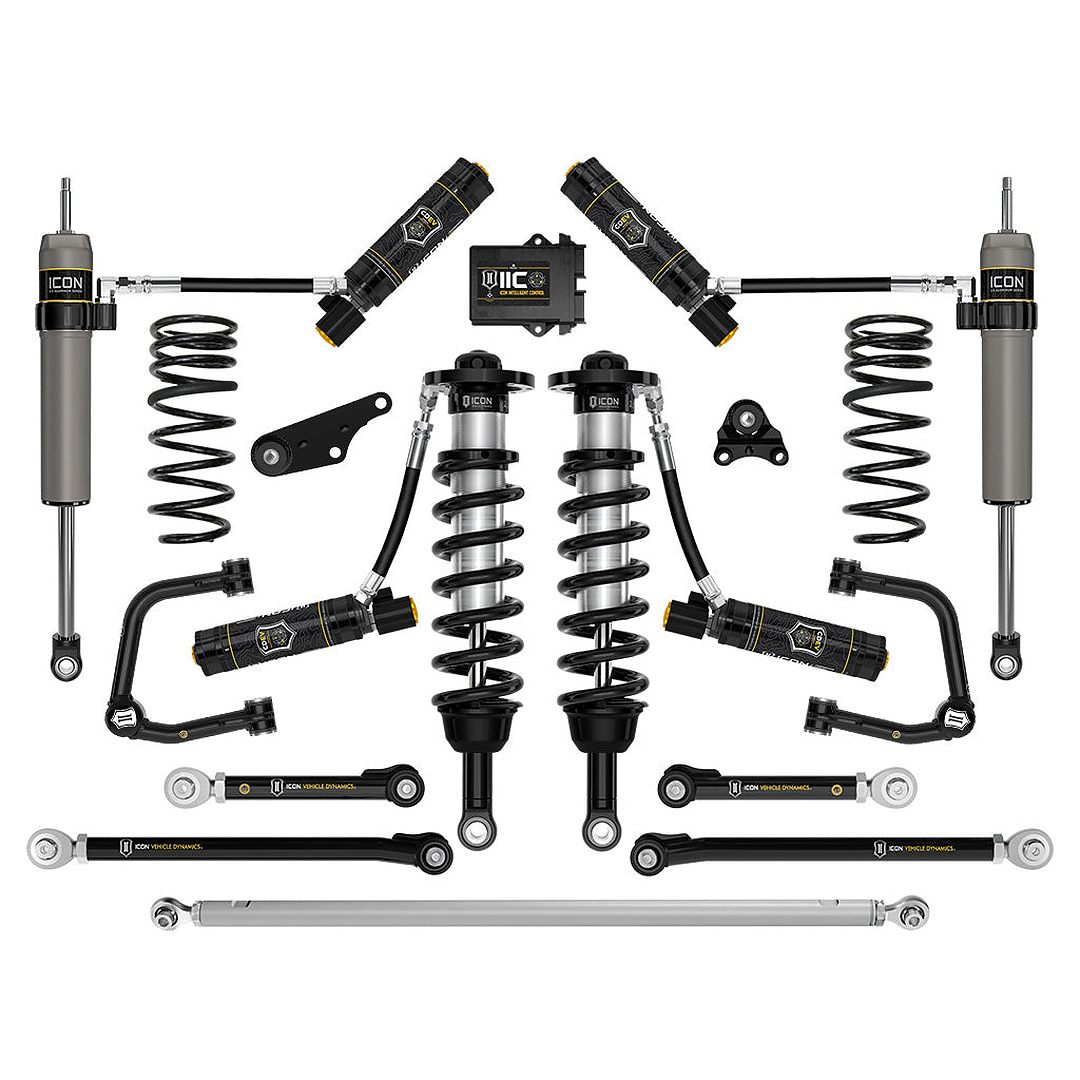

The ICON Vehicle Dynamics Stage 13 Suspension System is a top-tier performance upgrade engineered for the 2024–2025 Toyota Tacoma, delivering maximum wheel travel, intelligent damping control, and outstanding ride quality both on and off-road. Featuring 2.5 Series front coilovers with CDEV-equipped remote reservoirs, tubular upper control arms, billet rear links, and overland-spec rear coil springs, this system is built for drivers who demand premium performance, adaptive suspension technology, and superior durability across demanding terrain conditions.
Adjustable 1.25–3” Front Lift for Larger Tire Clearance
ICON 2.5 Series coilovers provide adjustable lift height from 1.25” to 3” over stock, allowing for larger wheel and tire fitment while improving ground clearance and vehicle stance. This adjustable lift capability helps optimize suspension geometry and enhances both off-road capability and daily drivability.
2.5 Series Coilovers with CDEV Remote Reservoir Technology
The front coilovers feature CDEV-equipped remote reservoirs that increase oil capacity and cooling efficiency to resist overheating and shock fade during demanding use. ICON’s Compression Damping Electronic Valve system enables near-instant adjustments to damping performance for improved vehicle control across changing terrain conditions.
ICON Intelligent Control for Adaptive Suspension Performance
This Stage 13 system includes ICON Intelligent Control (IIC), which uses onboard sensors to monitor vehicle movement and terrain conditions. The system automatically adjusts compression damping in real time and can be configured through the IIC mobile app, providing optimized performance without constant manual adjustments.
Tubular Upper Control Arms with Delta Joint PRO
The included tubular upper control arms improve suspension geometry and alignment while increasing durability. Equipped with ICON’s patented Delta Joint PRO, these control arms provide up to 90 degrees of articulation while eliminating bind, maximizing usable suspension travel and long-term reliability.
Overland Rear Springs for Loaded Vehicle Performance
The dual-rate overland rear coil springs are engineered to provide approximately 0.5” of rear lift when carrying around 600 pounds of additional rear weight. This spring design delivers improved load support, enhanced bottom-out resistance, and excellent ride comfort for overland builds equipped with gear or accessories.
Billet Rear Links for Increased Strength and Articulation
Billet rear upper and lower links improve rear suspension articulation and allow on-vehicle pinion angle adjustment. Their high-strength construction helps maintain drivetrain alignment and reduces deflection under load for improved durability and suspension performance.
Adjustable Rear Track Bar for Proper Axle Centering
An adjustable rear track bar is included to properly re-center the rear axle after lift installation. The on-vehicle adjustment capability simplifies setup while maintaining proper suspension geometry and handling performance.
Balanced Rear Shock Performance with Integrated Bump Zones
ICON 2.5 Aluminum Series rear shocks with CDEV remote reservoirs feature integrated bump zones and vehicle-specific valving, providing balanced front-to-rear suspension performance, improved damping control, and increased resistance to bottoming under aggressive use.
Optimized Front Suspension Geometry and Drivetrain Reliability
A front differential drop system is included to improve CV joint operating angles and maximize available suspension travel on 4WD models. Polyurethane differential bushings help limit unwanted movement under load, improving long-term drivetrain reliability.
Specifications
- Vehicle Fitment: 2024–2025 Toyota Tacoma
- SKU: K53303TX
- Lift Height: 1.25"–3" Adjustable Front Lift / ~0.5" Rear Lift with ~600 lbs Added Rear Weight
- Front Shocks: ICON 2.5 Series Coilovers with CDEV Remote Reservoirs
- Rear Shocks: ICON 2.5 Aluminum Series CDEV Remote Reservoir Shocks with Integrated Bump Zones
- Rear Springs: Dual-Rate Overland Rear Coil Springs
- Upper Control Arms: Tubular Steel UCAs with Delta Joint PRO
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Adjustable Rear Track Bar
- Suspension Travel: Increased Wheel Travel Over Stock
- Differential Drop: Included for 4WD Models
- Bushings: Polyurethane Differential Mount Bushings
- Shock Shafts: 7/8"
- Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
- Recommended Tire Size: Up to 33" x 11.50"
- Wheel Fitment: Compatible with OEM Wheels and Tires
- Serviceability: Fully Serviceable and Rebuildable Shocks
- Install Type: Bolt-On System
- Technology: ICON Intelligent Control (IIC) with CDEV Electronic Damping
- Application Note: Advertised rear lift based on approximately 600 lbs added load
- Use Case: Daily Driving, Overlanding, Off-Road Performance
