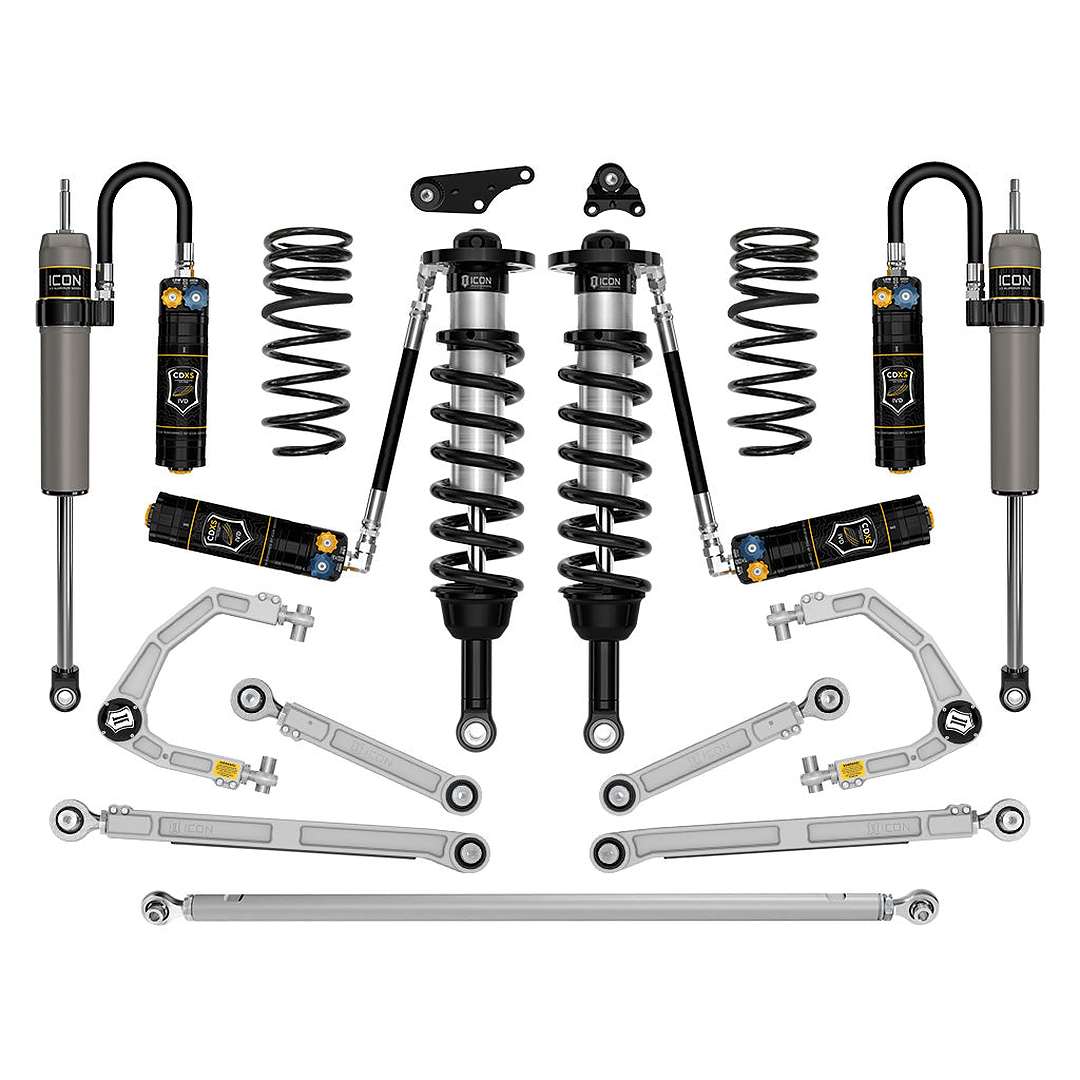

ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 12 Suspension System, Billet, Overland Rear Springs (K53302X)
The ICON Vehicle Dynamics Stage 12 Suspension System is a premium suspension upgrade engineered for the 2024–2025 Toyota Tacoma, delivering increased wheel travel, advanced damping adjustability, and superior ride quality both on and off-road. Featuring 2.5 Series front coilovers with CDXS remote reservoirs, billet aluminum upper control arms, billet rear links, an adjustable rear track bar, and overland-spec rear springs designed to support additional load, this system is built for drivers who demand high-performance capability, durability, and precision control across varied terrain.
Adjustable 1.25–3” Front Lift for Improved Clearance
ICON 2.5 Series coilovers provide adjustable lift from 1.25” to 3” over stock, allowing proper ride height tuning for larger tire fitment and improved ground clearance. This adjustability enhances off-road performance while maintaining excellent on-road drivability.
2.5 Series Coilovers with CDXS Remote Reservoirs
The front coilovers feature remote reservoirs that increase oil capacity and cooling efficiency to prevent shock fade during demanding driving conditions. ICON’s Compression Damping Dual Speed (CDXS) valves allow independent high-speed and low-speed compression adjustments, enabling drivers to fine-tune suspension response and ride characteristics.
Billet Aluminum Upper Control Arms with Delta Joint PRO
This system includes CNC-machined billet aluminum upper control arms designed to improve front suspension geometry and alignment capability. The integrated Delta Joint PRO provides up to 90 degrees of articulation while eliminating bind, maximizing wheel travel and durability under heavy use.
Overland Rear Springs for Loaded Vehicles
The dual-rate overland rear coil springs provide approximately 0.5” of rear lift when carrying around 600 pounds of additional rear weight. This spring design delivers improved load support, enhanced bottom-out resistance, and superior ride quality for overland or gear-heavy applications.
Billet Rear Links for Enhanced Strength and Adjustability
Billet rear upper and lower links improve articulation and allow precise pinion angle adjustment. Their high-strength construction provides durability and improved drivetrain alignment while supporting increased suspension travel.
Adjustable Billet Rear Track Bar for Proper Geometry
An adjustable billet rear track bar is included to properly re-center the rear axle after lifting. The double-adjuster design allows easy fine-tuning without removing the component, helping maintain proper suspension alignment and handling.
Improved CV Angles and Front-End Reliability
A front differential drop system helps maintain proper CV joint operating angles and maximize available suspension travel. Polyurethane differential bushings reduce unwanted movement under load, improving long-term reliability and performance.
Balanced Rear Shock Performance with Integrated Bump Zones
ICON 2.5 Aluminum Series rear shocks with CDXS remote reservoirs and integrated bump zones provide increased damping capability and balanced performance from front to rear, enhancing stability and control on uneven terrain.
Specifications
- Vehicle Fitment: 2024–2025 Toyota Tacoma
- SKU: K53302X
- Lift Height: 1.25"–3" Adjustable Front Lift / ~0.5" Rear Lift with Approximately 600 lbs Added Rear Weight
- Front Shocks: ICON 2.5 Series Coilovers with CDXS Remote Reservoirs
- Rear Shocks: ICON 2.5 Aluminum Series CDXS Remote Reservoir Shocks with Integrated Bump Zones
- Rear Springs: Dual-Rate Overland Rear Coil Springs
- Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Billet Adjustable Rear Track Bar
- Suspension Travel: Increased Wheel Travel Over Stock
- Differential Drop: Included for 4WD Models
- Bushings: Polyurethane Differential Mount Bushings
- Shock Shafts: 7/8"
- Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
- Recommended Tire Size: Up to 33" x 11.50"
- Wheel Fitment: OEM Wheels and Tires Compatible
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Application Note: Advertised rear lift based on approximately 600 lbs added load
- Use Case: Daily Driving, Overlanding, Off-Road Performance
