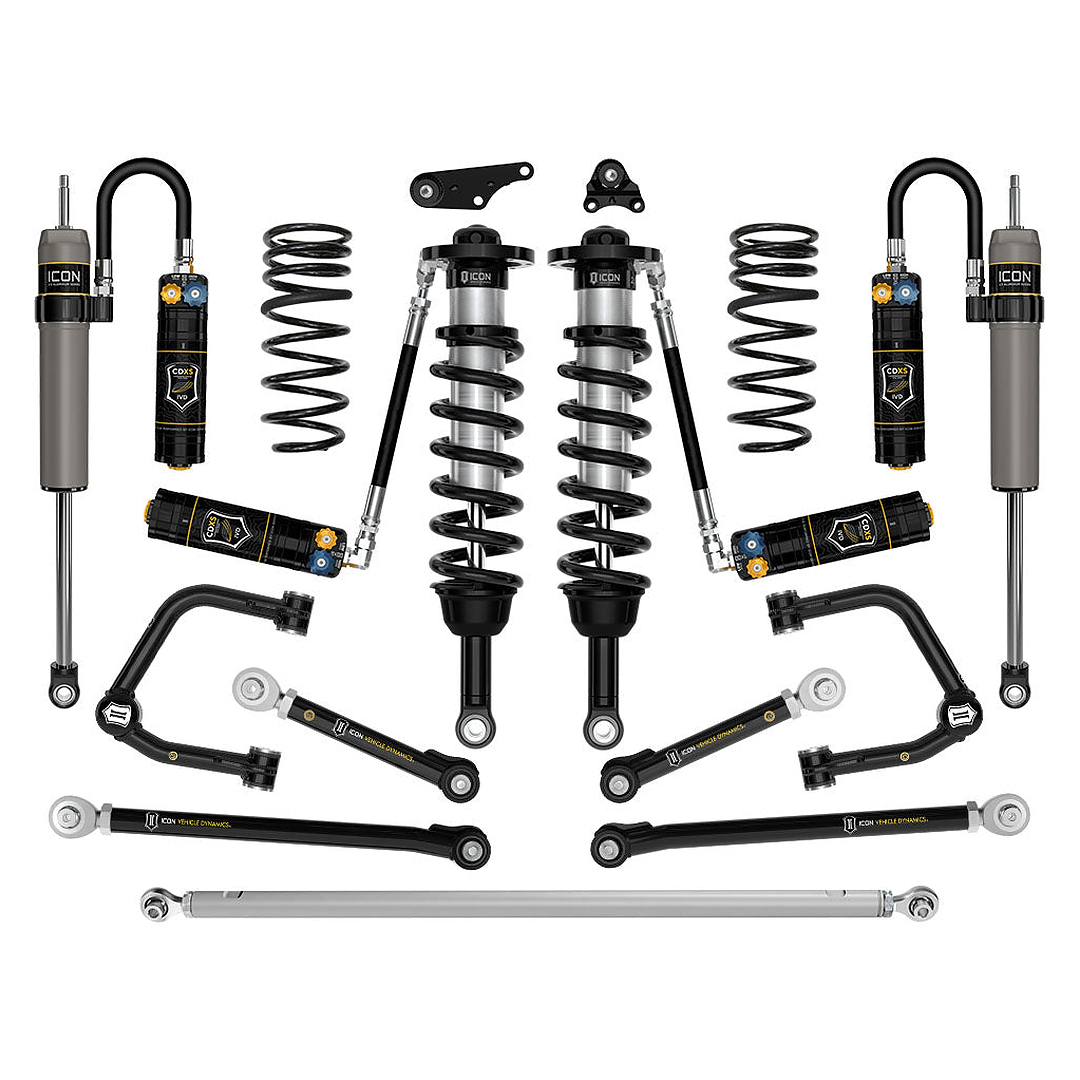

ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 12 Suspension System, Tubular (K53302T)
The ICON Vehicle Dynamics Stage 12 Suspension System with Tubular Upper Control Arms is a high-performance suspension upgrade engineered specifically for 2024–2025 Toyota Tacoma models. Designed to deliver exceptional ride quality, increased suspension travel, and advanced damping control, this system features 2.5 Series remote reservoir coilovers equipped with CDXS dual-speed compression adjustment, tubular upper control arms, and a complete rear suspension package including triple-rate springs and adjustable link components. Built for drivers seeking premium on-road comfort and aggressive off-road performance, this system offers outstanding control, durability, and adaptability across a wide range of driving conditions.
Adjustable 1.25–3” Front Lift for Improved Clearance
The ICON 2.5 Series coilovers provide adjustable ride height from approximately 1.25” to 3” of front lift, allowing drivers to fine-tune vehicle stance and support larger wheel and tire combinations. This adjustability enhances ground clearance while maintaining stable suspension geometry and predictable handling characteristics.
2.5 Series Coilovers with CDXS Dual-Speed Compression
Front coilovers feature remote reservoirs and ICON’s Compression Damping Dual Speed (CDXS) technology, allowing independent adjustment of high-speed and low-speed compression damping. This system provides precise tuning capability for improved comfort during daily driving and enhanced control during off-road use.
Tubular Upper Control Arms with Delta Joint PRO
Heavy-duty tubular upper control arms correct suspension geometry and improve caster alignment at increased lift heights. Equipped with ICON’s serviceable Delta Joint PRO, these arms deliver smooth articulation while eliminating bind throughout the suspension travel range.
Triple-Rate Rear Coil Springs for Balanced Ride Quality
The rear suspension includes triple-rate coil springs engineered to provide soft initial ride comfort, balanced mid-range support, and firm overload resistance. This progressive spring design improves load handling while maintaining ride quality on both pavement and rugged terrain.
Rear Links and Adjustable Track Bar
ICON tubular rear upper and lower links combined with an adjustable rear track bar maintain proper axle alignment and improve articulation. These components help reduce drivetrain stress while providing consistent handling and improved suspension performance under load.
2.5 Series Rear Shocks with Integrated Bump Zones
Rear 2.5 Aluminum Series remote reservoir shocks include integrated bump zones that increase damping force during the final stage of compression. This improves bottom-out resistance and enhances overall vehicle stability across uneven terrain.
Differential Drop for Drivetrain Protection
A front differential drop system is included to improve CV joint operating angles and reduce stress on drivetrain components. Polyurethane differential bushings replace factory components to limit unwanted movement and enhance long-term durability.
Engineered for Increased Wheel Travel
ICON engineers designed this system to significantly increase suspension travel compared to factory components. The improved articulation enhances traction, ride comfort, and vehicle control during both daily driving and demanding off-road conditions.
Specifications
- Vehicle Fitment: 2024–2025 Toyota Tacoma (4WD)
- SKU: K53302T
- Lift Height: 1.25"–3" Adjustable Front Lift / ~0.5" Rear Lift
- Front Shocks: ICON 2.5 Series Remote Reservoir Coilovers with CDXS
- Rear Shocks: ICON 2.5 Aluminum Series Remote Reservoir with CDXS
- Rear Springs: Triple-Rate Coil Springs
- Upper Control Arms: Tubular Steel UCAs with Delta Joint PRO
- Rear Links: Tubular Rear Upper and Lower Links
- Rear Track Bar: Adjustable Rear Track Bar Included
- Differential Drop: Included
- Shock Adjustability: Dual-Speed Compression (High & Low Speed)
- Shock Shaft Diameter: 7/8"
- Suspension Travel: Increased Wheel Travel Over Stock
- Recommended Tire Size: Up to 33" x 11.50"
- Recommended Wheels: 17x8.5" with ~25mm Offset
- Material: CNC-Machined Aluminum and High-Strength Steel Components
- Finish: Corrosion-Resistant CAD-Plated Shock Bodies
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Designed for 2024–2025 Tacoma Models
- Fitment Note: Will Not Fit Models Equipped with Rear Leaf Springs
- Use Case: Daily Driving, Overlanding, Off-Road Performance
