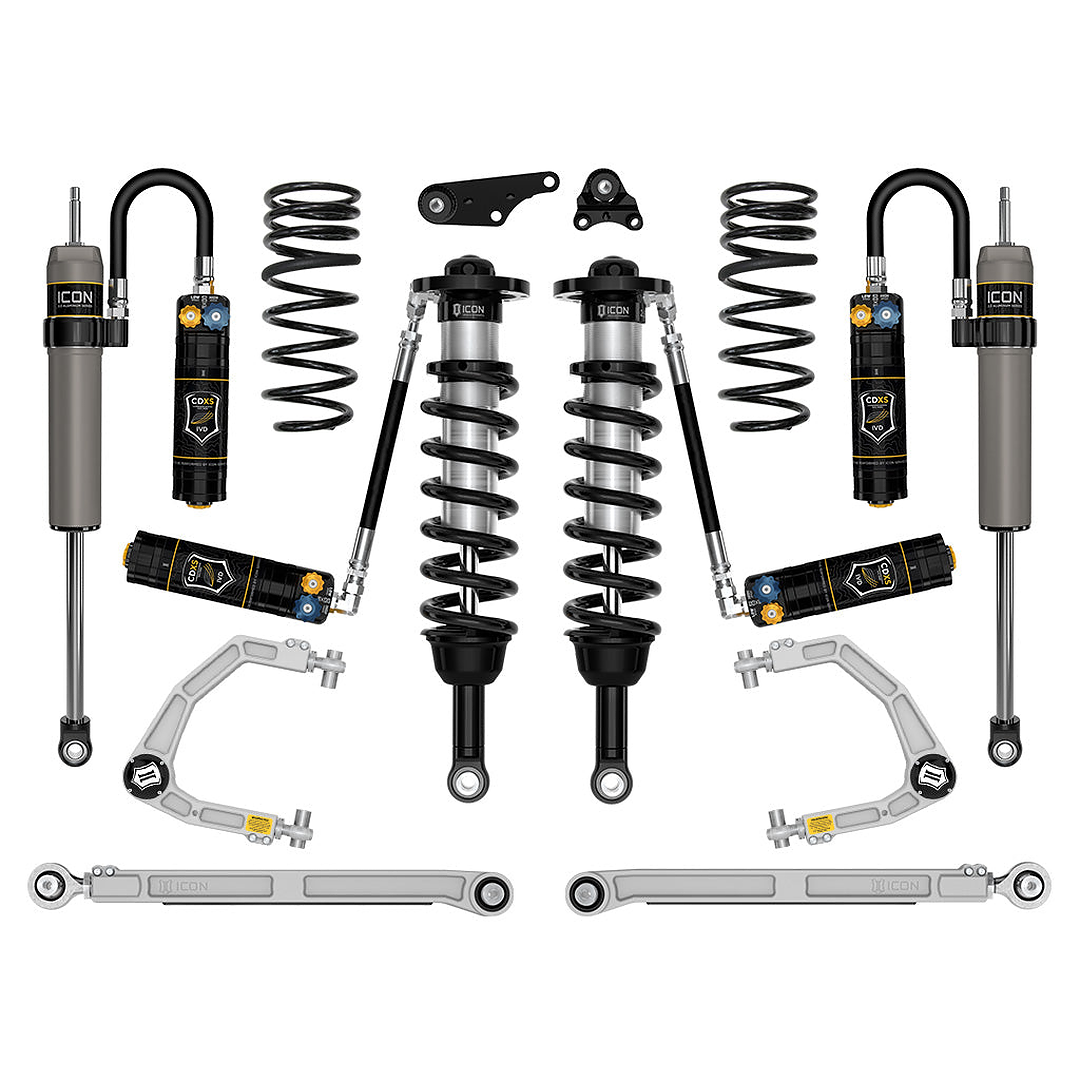

ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 9 Suspension System, Billet, Overland Rear Springs (K53299X)
The ICON Vehicle Dynamics Stage 9 Suspension System with Billet Upper Control Arms and Overland Rear Springs is a premium performance upgrade engineered specifically for 2024–2025 Toyota Tacoma models. Designed to maximize wheel travel, improve damping control, and support heavily equipped overland builds, this system features 2.5 Series remote reservoir coilovers with CDXS compression adjustment, billet aluminum upper control arms, dual-rate overland rear springs, and matched 2.5 Series rear shocks. Built for serious off-road enthusiasts and overlanders, this system delivers superior ride comfort, improved load capacity, and exceptional durability across demanding terrain.
Adjustable 1.25–3” Front Lift for Aggressive Stance
The ICON 2.5 Series front coilovers provide adjustable lift heights ranging from 1.25” to 3”, allowing clearance for larger wheels and tires while improving ground clearance and overall vehicle stance. Remote reservoirs increase oil volume and cooling efficiency, maintaining consistent damping performance during heavy off-road use.
CDXS Dual-Speed Compression Adjustment
This Stage 9 system includes ICON’s advanced Compression Damping Dual Speed (CDXS) technology, offering independent high-speed and low-speed compression adjustment. With 10 selectable settings for each range, drivers can fine-tune suspension response to match terrain conditions, load demands, or driving style.
Billet Aluminum Upper Control Arms with Delta Joint PRO
The included CNC-machined billet aluminum upper control arms correct suspension geometry and increase alignment adjustability. Equipped with ICON’s Delta Joint PRO, these control arms allow full articulation while eliminating bind and improving long-term reliability and durability.
Overland Rear Springs for Added Load Support
The overland dual-rate rear coil springs are engineered to provide approximately 0.5” of rear lift when carrying around 600 pounds of additional cargo weight. This design improves ride comfort under load, enhances bottom-out resistance, and supports vehicles equipped with gear such as bumpers, roof racks, or camping equipment.
2.5 Series Rear Remote Reservoir Shocks
ICON 2.5 Aluminum Series rear shocks feature remote reservoirs and integrated bump zones for improved cooling and enhanced bottom-out control. These shocks are tuned specifically for the Tacoma platform, ensuring balanced suspension performance between front and rear components.
Differential Drop System for Drivetrain Protection
A front differential drop kit improves CV joint operating angles and maximizes available suspension travel on 4WD models. Polyurethane differential bushings help reduce movement under load, improving drivetrain reliability and long-term performance.
Increased Wheel Travel and Vehicle Control
Vehicle-specific shock lengths and geometry correction components significantly increase suspension travel compared to factory suspension systems. This added articulation improves traction, ride stability, and overall vehicle control across challenging terrain.
Specifications
- Vehicle Fitment: 2024–2025 Toyota Tacoma
- SKU: K53299X
- Lift Height: 1.25"–3" Adjustable Front Lift / ~0.5" Rear Lift (with load)
- Front Shocks: ICON 2.5 Series Remote Reservoir Coilovers with CDXS
- Rear Shocks: ICON 2.5 Series Remote Reservoir with Integrated Bump Zones
- Rear Springs: Dual-Rate Overland Rear Coil Springs
- Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
- Differential Drop: Included
- Bushings: Polyurethane Differential Mount Bushings
- Shock Adjustability: Independent High-Speed and Low-Speed Compression (CDXS)
- Shock Body Diameter: 2.5"
- Suspension Travel: Increased Wheel Travel Over Stock
- Rear Load Support: Designed for ~600 lbs Additional Rear Weight
- Recommended Tire Size: Up to 35" x 12.50" (Vehicle Dependent)
- Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
- Shock Construction: CAD-Plated Aluminum Bodies with 7/8" Shafts
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Not Compatible with Tacoma Models Equipped with Rear Leaf Springs
- Application Note: ADAS recalibration required after installation
- Use Case: Overlanding, Heavy Load Applications, Daily Driving, Off-Road Performance
