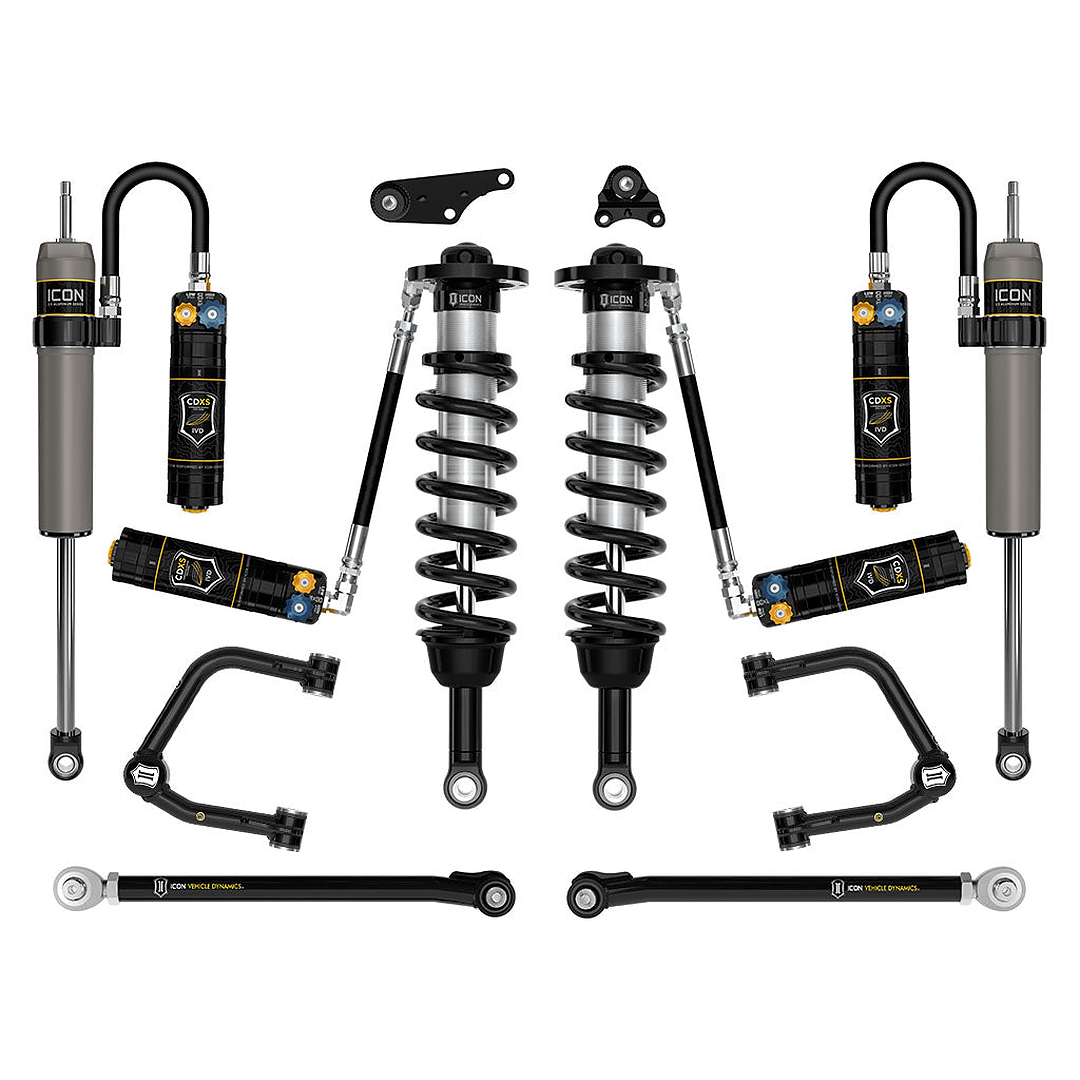

ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 9 Suspension System, Tubular (K53299T)
The ICON Vehicle Dynamics Stage 9 Suspension System with Tubular Upper Control Arms is a premium suspension upgrade engineered specifically for 2024–2025 Toyota Tacoma models. Designed to deliver exceptional damping performance, increased suspension travel, and superior ride comfort, this system features 2.5 Series remote reservoir coilovers equipped with CDXS dual-speed compression adjustment, tubular upper control arms, rear lower links, and matched remote reservoir rear shocks. Built for drivers seeking advanced performance both on and off-road, this system provides improved handling, durability, and control across a wide range of driving conditions.
Adjustable 1.25–3” Front Lift for Improved Clearance
The ICON 2.5 Series coilovers provide adjustable ride height from approximately 1.25” to 3” of front lift, allowing drivers to fine-tune stance and accommodate larger, more aggressive wheel and tire combinations. This adjustability enhances ground clearance while maintaining proper suspension geometry and stability.
2.5 Series Coilovers with CDXS Dual-Speed Compression
Front coilovers feature remote reservoirs and ICON’s Compression Damping Dual Speed (CDXS) technology, allowing independent tuning of high-speed and low-speed compression damping. This provides precise ride tuning for improved comfort during daily driving and enhanced control during aggressive off-road use.
Tubular Upper Control Arms with Delta Joint PRO
Heavy-duty tubular upper control arms improve suspension geometry and alignment at increased ride heights. Featuring ICON’s serviceable Delta Joint PRO, these control arms provide up to 90 degrees of articulation while eliminating bind and maximizing suspension travel.
Tubular Rear Lower Links for Increased Articulation
ICON tubular rear lower links utilize dual-durometer greaseless bushings and FK rod ends to improve rear suspension articulation while minimizing unwanted noise and vibration. These components also allow adjustment of pinion angle for optimal drivetrain alignment.
2.5 Series Rear Shocks with Integrated Bump Zones
The rear suspension includes ICON 2.5 Aluminum Series CDXS remote reservoir shocks with integrated bump zones that increase damping force during the final stage of compression. This enhances bottom-out resistance and improves vehicle stability across rough terrain.
Differential Drop System for Drivetrain Protection
A front differential drop system improves CV joint operating angles and reduces drivetrain stress under lift conditions. Polyurethane differential bushings replace factory components to minimize unwanted movement and improve long-term durability.
Engineered for Increased Wheel Travel
Vehicle-specific shock tuning and geometry correction components significantly increase suspension travel compared to factory components. The improved articulation enhances traction, ride comfort, and off-road capability in challenging terrain conditions.
Specifications
- Vehicle Fitment: 2024–2025 Toyota Tacoma (4WD)
- SKU: K53299T
- Lift Height: 1.25"–3" Adjustable Front Lift / ~0–1" Rear Lift
- Front Shocks: ICON 2.5 Series Remote Reservoir Coilovers with CDXS
- Rear Shocks: ICON 2.5 Aluminum Series Remote Reservoir with CDXS
- Rear Springs: ICON Engineered Coil Springs
- Upper Control Arms: Tubular Steel UCAs with Delta Joint PRO
- Rear Links: Tubular Rear Lower Links
- Differential Drop: Included for 4WD Models
- Shock Adjustability: Dual-Speed Compression (High & Low Speed)
- Shock Shaft Diameter: 7/8"
- Suspension Travel: Increased Wheel Travel Over Stock
- Recommended Tire Size: Up to 33" x 11.50"
- Recommended Wheels: 17x8.5" or 18x9" with Proper Offset
- Material: CNC-Machined Aluminum and High-Strength Steel Components
- Finish: Corrosion-Resistant CAD-Plated Shock Bodies
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Designed for 2024–2025 Tacoma Models
- Fitment Note: Will Not Fit Models Equipped with Rear Leaf Springs
- Use Case: Daily Driving, Overlanding, Off-Road Performance
