ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 6 Suspension System, Tubular, Overland Rear Springs (K53296TX)

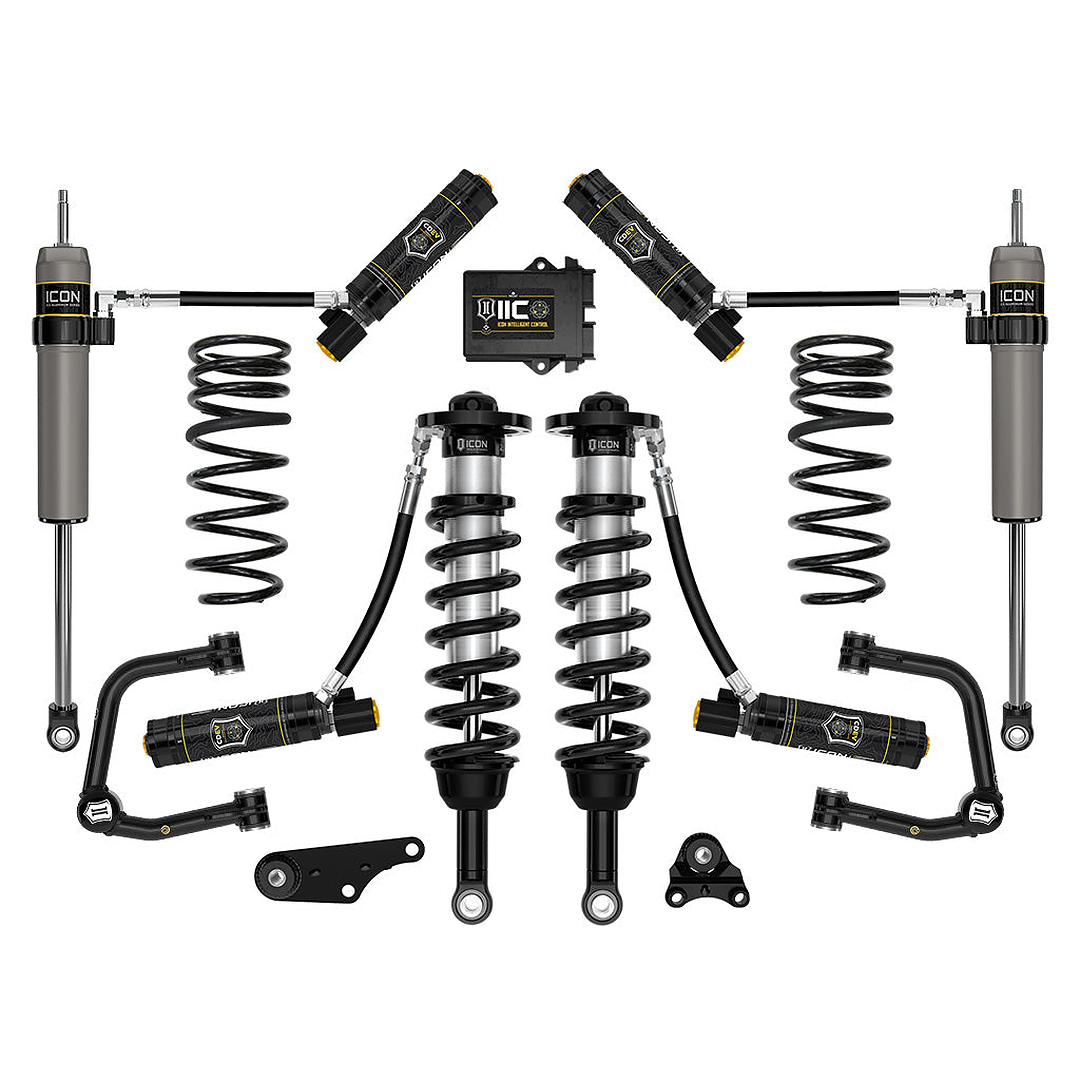

The ICON Vehicle Dynamics Stage 6 Suspension System is a premium suspension upgrade engineered for the 2024–2025 Toyota Tacoma, delivering increased wheel travel, advanced damping performance, and improved ride quality both on and off-road. Featuring 2.5 Series front coilovers with CDEV-equipped remote reservoirs, tubular upper control arms, and overland-spec rear coil springs designed to support additional rear weight, this system is built for drivers who demand performance, durability, and intelligent suspension control in all driving environments.
Adjustable 1.25–3” Front Lift for Larger Tire Fitment
ICON 2.5 Series front coilovers provide adjustable lift height from 1.25” to 3” over stock, allowing you to fine-tune ride height and accommodate larger, more aggressive wheel and tire combinations. This adjustability improves ground clearance, stance, and overall off-road capability.
2.5 Series Coilovers with CDEV Remote Reservoir Technology
The front coilovers feature remote reservoirs that increase oil capacity and cooling surface area, helping resist heat buildup and shock fade under demanding conditions. ICON’s Compression Damping Electronic Valve (CDEV) technology delivers consistent performance and enhanced vehicle control across varied terrain.
ICON Intelligent Control for Adaptive Suspension Performance
This system includes ICON Intelligent Control (IIC), which uses onboard sensors to monitor vehicle movement and terrain conditions, making near-instant compression damping adjustments. Drivers can configure the system wirelessly via the IIC mobile app, allowing optimized suspension response without constant manual adjustment.
Tubular Upper Control Arms with Delta Joint PRO
The included tubular upper control arms improve suspension geometry, increase caster alignment, and enhance component clearance. Equipped with ICON’s patented Delta Joint PRO, these arms provide up to 90 degrees of articulation while eliminating bind and maximizing usable suspension travel.
Overland Rear Springs for Loaded Vehicles
The dual-rate overland rear coil springs are designed to provide approximately 0.5” of rear lift with around 600 pounds of additional rear weight. This design offers a comfortable initial spring rate combined with a firmer overload rate, delivering improved load handling, bottom-out resistance, and stability for heavily equipped overland builds.
Balanced Rear Shock Performance with Integrated Bump Zones
ICON 2.5 Aluminum Series rear shocks with CDEV-equipped remote reservoirs feature integrated bump zones for improved damping and bottom-out control. These shocks are tuned specifically for the Tacoma platform to provide balanced front-to-rear suspension performance.
Improved CV Angles and Front-End Durability
A front differential drop system is included to optimize CV joint angles and maximize available wheel travel on 4WD models. Polyurethane differential bushings help reduce unwanted movement under load, improving long-term drivetrain durability and performance.
Engineered for Maximum Wheel Travel and Ride Quality
ICON engineers designed this system to increase suspension travel and damping ability compared to factory components. The result is improved handling, enhanced off-road capability, and greater comfort for both daily driving and rugged terrain use.
Specifications
- Vehicle Fitment: 2024–2025 Toyota Tacoma
- SKU: K53296TX
- Lift Height: 1.25"–3" Adjustable Front Lift / ~0.5" Rear Lift with Approximately 600 lbs Added Rear Weight
- Front Shocks: ICON 2.5 Series Coilovers with CDEV Remote Reservoirs
- Rear Shocks: ICON 2.5 Aluminum Series CDEV Remote Reservoir Shocks with Integrated Bump Zones
- Rear Springs: Dual-Rate Overland Rear Coil Springs
- Upper Control Arms: Tubular Steel UCAs with Delta Joint PRO
- Suspension Travel: Increased Wheel Travel Over Stock
- Differential Drop: Included for 4WD Models
- Bushings: Polyurethane Differential Mount Bushings
- Shock Shafts: 7/8"
- Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
- Recommended Tire Size: Up to 33" x 11.50"
- Wheel Fitment: OEM Wheels and Tires Compatible
- Serviceability: Fully Serviceable Shocks
- Install Type: Bolt-On System
- Compatibility Note: iOS Device Required for ICON Intelligent Control App
- Application Note: Advertised lift heights based on approximately 600 lbs rear load
- Use Case: Daily Driving, Overlanding, Off-Road Performance
