ICON 2022-2024 Toyota Tundra, 6" Lift, Stage 7 Suspension System, Billet, CDXS (K53277D)

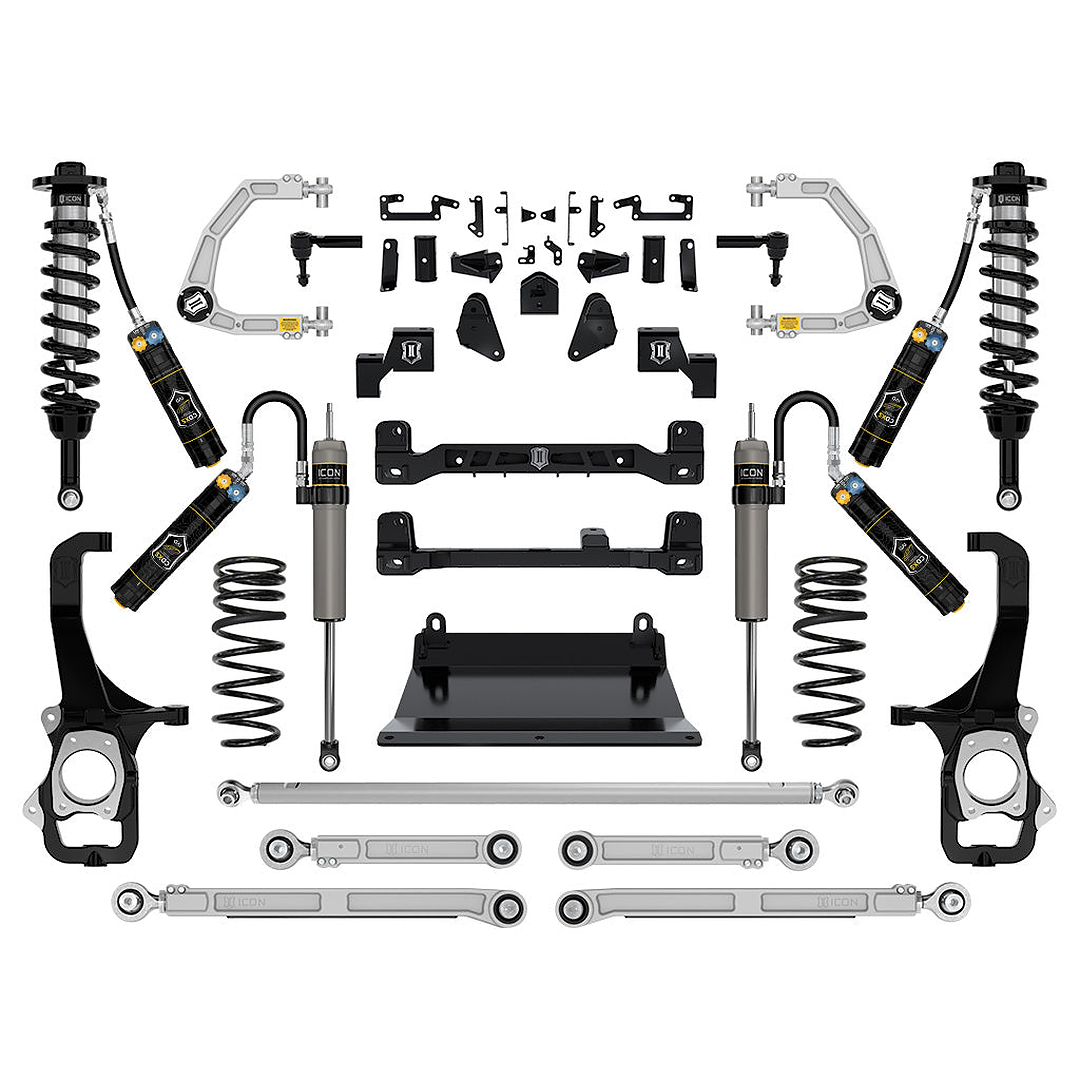

The ICON Vehicle Dynamics Stage 7 Suspension System is an advanced high-performance lift solution engineered for 2022–2024 Toyota Tundra models. Designed to maximize suspension travel, improve damping performance, and enhance off-road capability, this system features 2.5 Series remote reservoir coilovers with CDXS dual-speed compression adjustment, billet aluminum upper control arms, billet rear links, and triple-rate rear springs. Built for aggressive off-road driving and heavy-duty use, this system delivers exceptional ride control, improved geometry, and long-term durability across demanding terrain conditions.
Adjustable 5–6” Front Lift for Maximum Ground Clearance
The included 2.5 Series coilovers provide adjustable front lift ranging from approximately 5” to 6” over stock height. This increased ride height significantly improves ground clearance and allows fitment of up to 37” tires, enhancing off-road capability while maintaining factory track width.
2.5 Series Remote Reservoir Shocks with CDXS Adjustment
All shocks feature remote reservoirs for improved heat dissipation and increased oil capacity. ICON’s CDXS dual-speed compression adjustment allows independent tuning of high-speed and low-speed damping, providing precise control over ride comfort, handling, and bottom-out resistance.
Billet Aluminum Upper Control Arms with Delta Joint PRO
The system includes precision CNC-machined billet aluminum upper control arms equipped with ICON’s Delta Joint PRO, delivering increased strength, improved suspension geometry, and up to 90 degrees of articulation. These components improve alignment capability and maximize suspension travel.
Heavy-Duty Steering Knuckles and Crossmember System
High-strength ductile iron steering knuckles with built-in drop geometry maintain proper alignment while improving durability. High-clearance front crossmembers and skid plates fabricated from heavy-duty steel enhance strength and protection for demanding off-road conditions.
Triple-Rate Rear Coil Springs for Progressive Performance
ICON-engineered triple-rate rear coil springs provide progressive spring rates that improve comfort during normal driving while increasing stability and bottom-out resistance during aggressive off-road use or heavy loading.
Billet Rear Links and Adjustable Track Bar
Heavy-duty billet rear upper and lower links improve articulation and allow on-vehicle adjustment of pinion angles. An adjustable billet rear track bar helps maintain proper axle alignment and improves handling stability after lift installation.
Up to 40% Increase in Front Wheel Travel
This Stage 7 system increases front suspension travel by up to 40% over stock, improving traction and stability while maintaining reliable suspension operation without overstressing factory components.
Engineered for Serious Off-Road Performance
The system includes sway bar drop brackets, heavy-duty bump stop brackets, and high-angle tie rods to support demanding off-road conditions. Fully serviceable shock components ensure long-term performance and durability.
Specifications
- Vehicle Fitment: 2022–2024 Toyota Tundra
- SKU: K53277D
- Lift Height: 5"–6" Adjustable Front Lift / ~3"–3.5" Rear Lift
- Front Shocks: ICON 2.5 Series Remote Reservoir Coilovers with CDXS
- Rear Shocks: ICON 2.5 Series Remote Reservoir with CDXS
- Rear Springs: Triple-Rate Coil Springs
- Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
- Steering Components: High-Strength Ductile Iron Steering Knuckles
- Crossmembers: High-Clearance Steel Crossmembers
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Adjustable Billet Rear Track Bar
- Shock Adjustability: Independent High- and Low-Speed Compression (CDXS)
- Suspension Travel: Up to 40% Increased Front Wheel Travel
- Recommended Tire Size: Up to 37" x 12.50"
- Recommended Wheel Size: Minimum 20" Diameter Wheels
- Track Width: Maintains Factory Track Width
- Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
- Serviceability: Fully Rebuildable and Serviceable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Not Compatible with Load-Leveling Rear Height Control or AVS Systems
- Application Note: ADAS recalibration required after installation
- Use Case: Overlanding, Off-Road Performance, Trail Driving, Performance Builds
