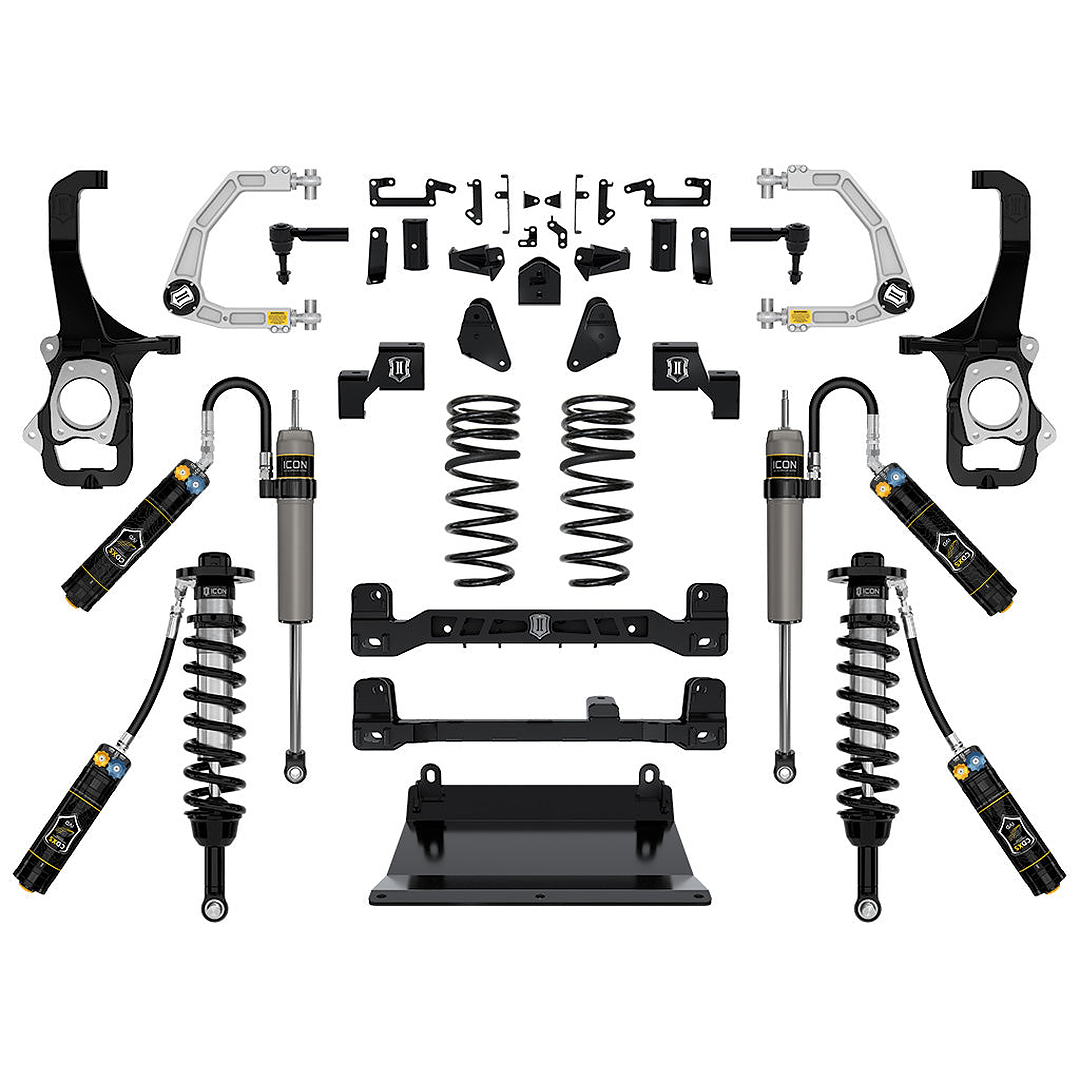

ICON 2022-2024 Toyota Tundra, 6" Lift, Stage 6 Suspension System, Billet, CDXS (K53276D)
The ICON Vehicle Dynamics Stage 6 Suspension System is an advanced 6-inch lift solution engineered specifically for 2022–2024 Toyota Tundra models. Designed to deliver superior ride quality, improved suspension geometry, and maximum off-road capability, this system features 2.5 Series remote reservoir coilovers with CDXS dual-speed compression adjustment, billet aluminum upper control arms, heavy-duty steering components, and triple-rate rear springs. Built for drivers demanding serious performance and aggressive stance, this system supports large tire fitment while maintaining stability, comfort, and durability in demanding off-road and towing conditions.
Massive 6” Lift Height for Maximum Ground Clearance
This system delivers approximately 6 inches of lift using ICON-engineered suspension components designed to maintain factory track width and optimized suspension geometry. The increased ride height allows clearance for larger tire setups and improves off-road capability across rugged terrain.
2.5 Series Coilovers with CDXS Dual-Speed Compression
Front and rear 2.5 Series remote reservoir shocks feature ICON’s CDXS compression adjustment system, allowing independent tuning of high-speed and low-speed compression damping. This provides exceptional ride tuning capability for both daily driving comfort and aggressive off-road performance.
Billet Aluminum Upper Control Arms with Delta Joint PRO
Precision CNC-machined billet aluminum upper control arms improve suspension geometry and caster adjustment while increasing durability. Equipped with ICON’s Delta Joint PRO, these components provide up to 90 degrees of articulation for improved suspension travel and long-term serviceability.
Heavy-Duty Steering Knuckles and Suspension Geometry Correction
High-strength ductile iron steering knuckles with integrated drop geometry restore factory alignment characteristics after lifting. Combined with high-clearance crossmembers and sway bar drop brackets, these components reduce bump steer and improve steering response.
Triple-Rate Rear Coil Springs for Load Handling
ICON engineered triple-rate rear coil springs deliver progressive spring rates that improve ride comfort while maintaining stability under heavy loads. This design enhances bottom-out resistance and keeps the vehicle level during towing or off-road use.
High-Clearance Crossmembers and Skid Plates
The included high-clearance front crossmembers and heavy-duty skid plates are CNC laser-cut and brake-formed from thick steel plate. These components improve underbody protection and ensure long-term durability during aggressive off-road driving.
Increased Suspension Travel and Stability
This Stage 6 system increases front suspension travel by up to 40% over factory components without overstressing OEM hardware. The increased articulation improves traction, ride stability, and overall vehicle control across uneven terrain.
Optimized for Large Tire Fitment
The system is engineered to accommodate up to 37” tires with full suspension articulation when paired with recommended wheels. This allows drivers to achieve an aggressive stance and improved off-road performance capability.
Specifications
- Vehicle Fitment: 2022–2024 Toyota Tundra
- SKU: K53276D
- Lift Height: Up to 6" Front Lift / ~3"–3.5" Rear Lift
- Front Shocks: ICON 2.5 Series Remote Reservoir Coilovers with CDXS
- Rear Shocks: ICON 2.5 Series Remote Reservoir with CDXS
- Rear Springs: Triple-Rate Coil Springs
- Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
- Steering Knuckles: High-Strength Ductile Iron Drop Knuckles
- Crossmembers: High-Clearance CNC Laser-Cut Steel Crossmembers
- Skid Plates: Heavy-Duty Front Skid Plates Included
- Sway Bar Components: Drop Brackets Included
- Shock Adjustability: Dual-Speed Compression Adjustment (CDXS)
- Suspension Travel: Up to 40% Increased Front Wheel Travel
- Recommended Tire Size: Up to 37" x 12.50"
- Recommended Wheels: 20x9" with 5.625" Backspacing / 16mm Offset
- Minimum Wheel Size: 20" Diameter Required
- Material: CNC-Machined Aluminum and High-Strength Steel Components
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Complete Bolt-On Suspension System
- Compatibility Note: Not Compatible with Load-Leveling Air Suspension or AVS Systems
- Application Note: ADAS recalibration required after installation
- Product Weight: Approximately 413 lbs
- Use Case: Heavy-Duty Off-Roading, Overlanding, Towing, Daily Driving
