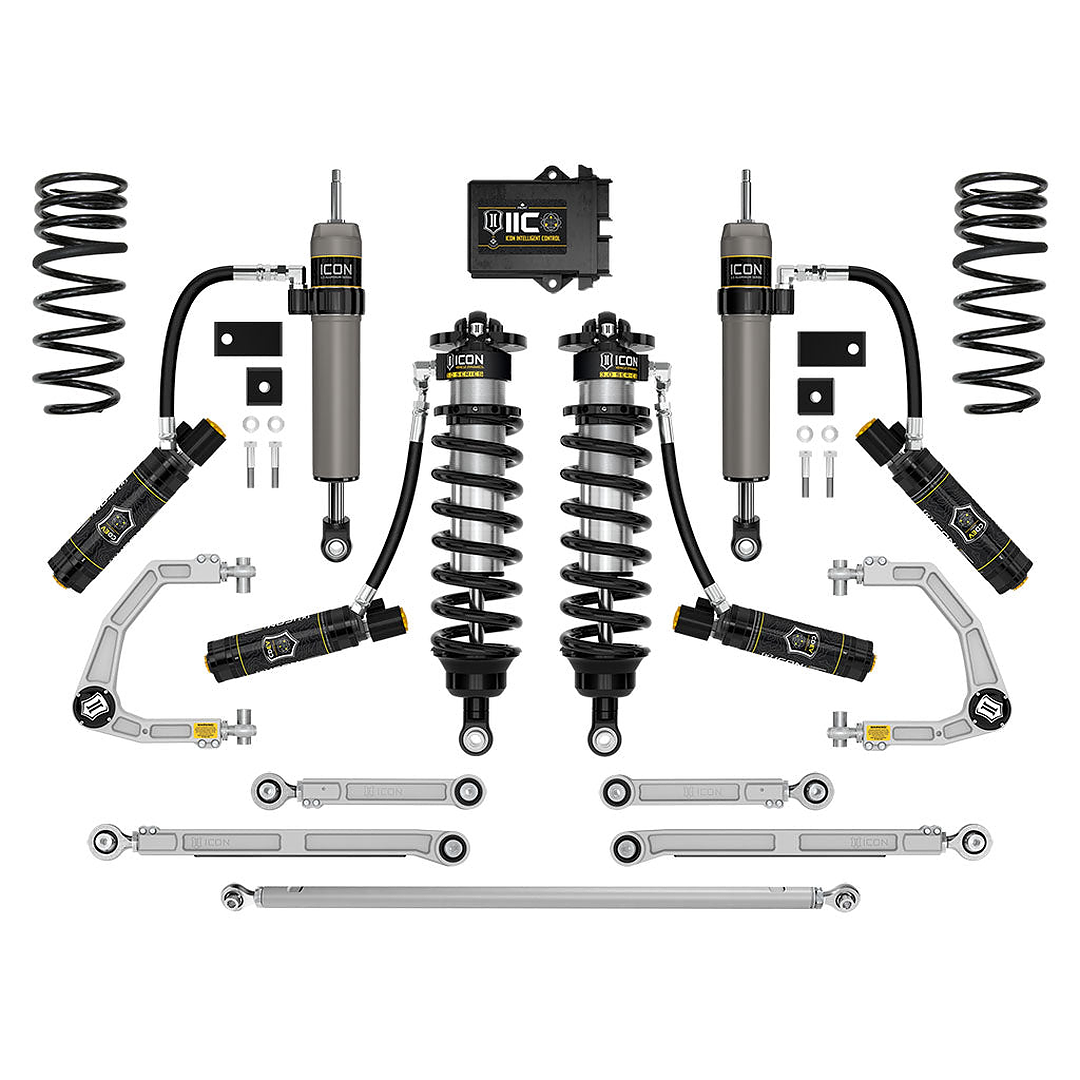

ICON 2023-2025 Toyota Sequoia, 3-4.25" Lift, Stage 3 3.0 Suspension System, Billet (K53253)
The ICON Vehicle Dynamics Stage 3 3.0 Suspension System is a premium performance upgrade engineered specifically for 2023–2025 Toyota Sequoia models. Designed to deliver superior ride control, increased suspension travel, and advanced electronic damping performance, this system features massive 3.0 Series remote reservoir coilovers with CDEV electronic compression adjustment, billet aluminum upper control arms, billet rear links, and matched rear remote reservoir shocks. Built for drivers who demand exceptional ride quality and off-road capability, this system provides improved alignment geometry, increased articulation, and support for larger tire fitment up to 35 inches.
Adjustable 3–4.25” Front Lift for Improved Stance
The ICON 3.0 Series front coilovers provide adjustable ride heights from approximately 3” to 4.25” of lift when paired with billet upper control arms. This adjustability allows proper stance tuning and improved clearance for larger wheels and tires while maintaining optimized suspension geometry.
3.0 Series Coilovers with CDEV Electronic Damping
ICON’s 3.0 Series remote reservoir coilovers utilize Compression Damping Electronic Valve (CDEV) technology, allowing dynamic suspension adjustment through ICON Intelligent Control (IIC). The larger 3.0 shock bodies provide significantly greater piston surface area and improved heat dissipation, delivering consistent damping and enhanced control across varied terrain.
Billet Aluminum Upper Control Arms with Delta Joint PRO
CNC-machined billet aluminum upper control arms improve suspension geometry and allow greater caster and camber adjustment. Equipped with ICON’s serviceable Delta Joint PRO, these arms enable full suspension travel while eliminating bind and improving long-term durability.
Billet Rear Link System for Improved Articulation
Heavy-duty billet rear upper and lower links are constructed from CNC-machined aluminum and feature PTFE-lined rod ends and multi-durometer bushings. This design increases articulation, reduces deflection, and allows on-vehicle pinion angle adjustment for improved drivetrain alignment.
Dual-Rate Rear Coil Springs for Balanced Ride
The included dual-rate rear coil springs provide a softer primary spring rate for ride comfort and a firmer secondary rate for load stability. This progressive design improves bottom-out resistance and maintains consistent ride height under varying load conditions.
Rear Adjustable Track Bar for Axle Alignment
An adjustable billet rear track bar centers the rear axle following installation of the lift system. This component helps maintain proper suspension alignment and improves handling stability across all driving conditions.
2.5 Series Rear Remote Reservoir Shocks
The rear suspension includes ICON 2.5 Series remote reservoir shocks equipped with CDEV technology and internal bump zones. These shocks improve cooling efficiency, reduce fade, and provide increased bottom-out resistance during aggressive off-road use.
Engineered for Increased Wheel Travel
Vehicle-specific shock lengths and geometry correction components increase suspension travel by up to 40% over factory components. The improved articulation enhances traction, ride comfort, and vehicle control on challenging terrain while maintaining excellent on-road performance.
Specifications
- Vehicle Fitment: 2023–2025 Toyota Sequoia
- SKU: K53253
- Lift Height: 3"–4.25" Adjustable Front Lift / ~0"–2" Rear Lift
- Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDEV
- Rear Shocks: ICON 2.5 Series Remote Reservoir with CDEV
- Rear Springs: Dual-Rate Coil Springs
- Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Billet Adjustable Rear Track Bar Included
- Sway Bar Components: Front Sway Bar Drop Brackets Included
- Shock Adjustability: Electronic Compression Damping (CDEV)
- Front Shock Body Diameter: 3.0"
- Rear Shock Body Diameter: 2.5"
- Suspension Travel: Up to 40% Increased Wheel Travel Over Stock
- Recommended Tire Size: Up to 35" x 12.50"
- Recommended Wheels: 17x8.5" with ~25mm Offset
- Material: CNC-Machined 6061 Aluminum and High-Strength Steel Components
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Not Compatible with Load-Leveling Rear Height Control Air Suspension
- Application Note: ICON Intelligent Control (IIC) required for electronic damping operation
- Use Case: Daily Driving, Overlanding, Heavy Off-Road Use
