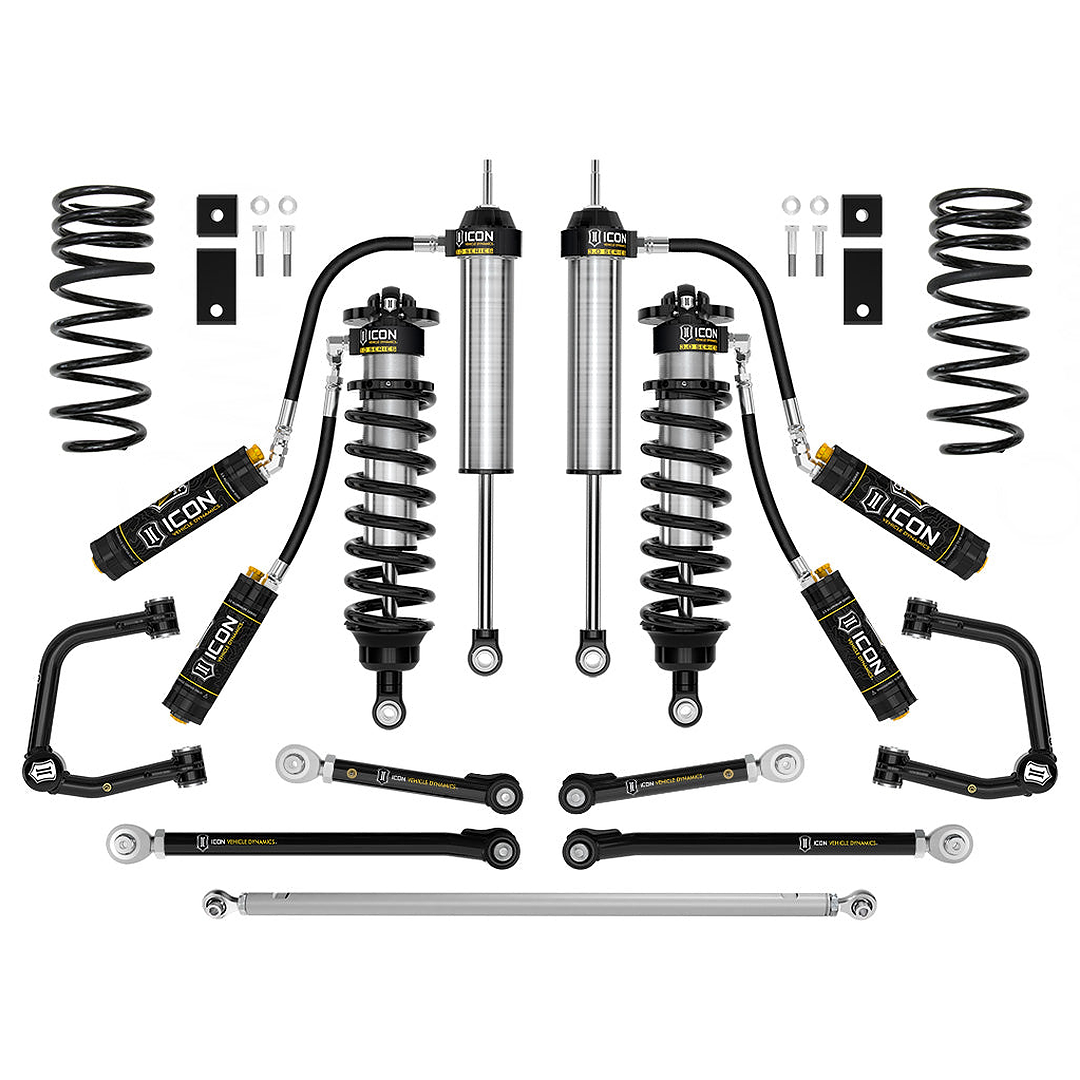

ICON 2023-2025 Toyota Sequoia, 3-4.25" Lift, Stage 2 (TRD), 3.0 Suspension System, Tubular, CDCV (K53252TS)
The ICON Vehicle Dynamics Stage 2 3.0 Suspension System is a premium performance upgrade engineered for the 2023–2025 Toyota Sequoia TRD models, delivering exceptional ride quality, increased suspension travel, and improved off-road capability. Featuring large-diameter 3.0 Series CDCV remote reservoir coilovers, tubular upper control arms, billet rear links, and dual-rate rear springs, this system is designed to provide balanced performance, enhanced durability, and precise suspension tuning for demanding on- and off-road driving conditions.
Adjustable 3–4.25” Lift for Aggressive Stance
ICON 3.0 Series front coilovers provide adjustable lift from 3” to 4.25” over stock, allowing fitment of larger wheel and tire combinations while increasing ground clearance. This adjustable ride height improves off-road capability and vehicle stance without compromising drivability.
3.0 Series Coilovers with CDC Valve Technology
The oversized 3.0 Series remote reservoir front coilovers feature Compression Damping Control Valve (CDCV) technology, offering 10 levels of external compression adjustment. This allows drivers to fine-tune suspension response for changing terrain, load conditions, or driving style.
3.0 Series Rear Remote Reservoir Shocks
The included 3.0 Series rear remote reservoir shocks provide increased oil capacity and improved cooling performance, delivering consistent damping performance and resistance to fade under heavy use. Their larger piston area improves ride quality and enhances vehicle stability across rough terrain.
Tubular Upper Control Arms with Delta Joint PRO
High-strength tubular upper control arms improve suspension geometry, increase caster alignment, and enhance durability. Equipped with ICON’s Delta Joint PRO, these control arms allow full suspension travel while eliminating bind and improving long-term reliability.
Billet Rear Links for Improved Strength and Alignment
Billet aluminum rear upper and lower links allow on-vehicle pinion angle adjustment and increased rear articulation. Their heavy-duty construction improves drivetrain alignment while supporting increased suspension travel.
Adjustable Rear Track Bar for Proper Axle Centering
An adjustable rear track bar helps properly center the rear axle following lift installation. This component maintains proper suspension geometry and improves overall handling stability.
Dual-Rate Rear Coil Springs for Balanced Ride Quality
Dual-rate rear coil springs provide improved load support and ride comfort, delivering balanced handling across both daily driving and off-road environments. This design also supports proper vehicle stance after lift installation.
Engineered for Maximum Wheel Travel and Performance
This complete suspension system increases suspension travel and improves overall vehicle control compared to factory components. With remote reservoir shocks and advanced damping technology, the system provides increased stability, enhanced off-road capability, and improved ride comfort.
Specifications
- Vehicle Fitment: 2023–2025 Toyota Sequoia (TRD Models)
- SKU: K53252TS
- Lift Height: 3"–4.25" Adjustable Front Lift
- Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDCV Adjustment
- Rear Shocks: ICON 3.0 Series Remote Reservoir Shocks with CDCV Adjustment
- Rear Springs: Dual-Rate Rear Coil Springs
- Upper Control Arms: Tubular Steel UCAs with Delta Joint PRO
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Adjustable Rear Track Bar
- Sway Bar Components: Front Sway Bar Drop Kit Included
- Shock Adjustability: 10-Position External Compression Adjustment
- Suspension Travel: Increased Wheel Travel Over Stock
- Recommended Tire Size: Up to 35" x 12.50"
- Shock Body Size: 3.0" Diameter Front and Rear
- Material: High-Strength Steel and CNC-Machined Aluminum Components
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Designed for TRD Suspension Equipped Models
- Use Case: Daily Driving, Overlanding, Off-Road Performance
