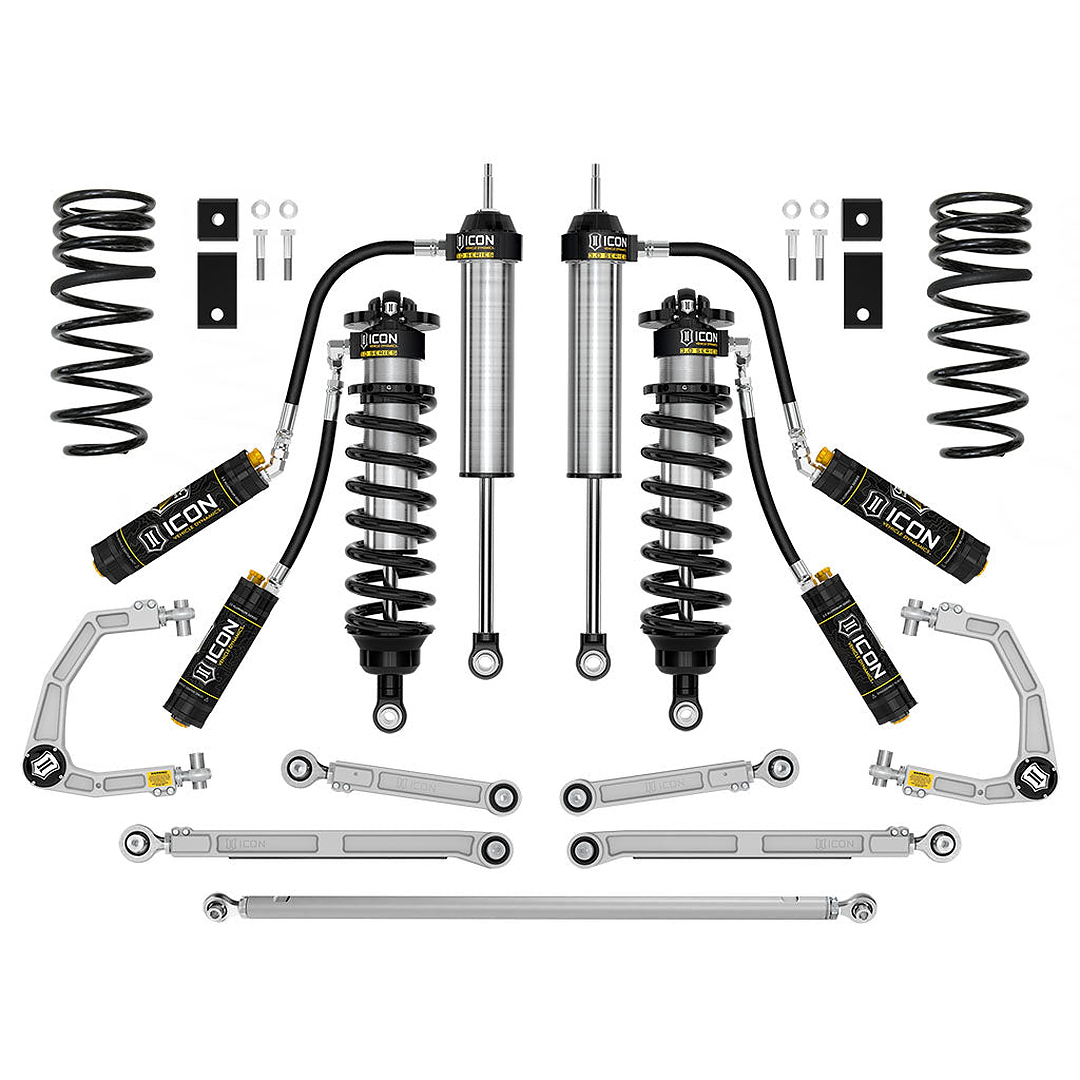

ICON 2023-2025 Toyota Sequoia, 3-4.25" Lift, Stage 2 (TRD), 3.0 Suspension System, Billet, CDCV (K53252S)

ICON 2023-2025 Toyota Sequoia 3-4.25" Lift Stage 2 (TRD) 3.0 Suspension System (Billet, CDCV) (K53252S)

The ICON Vehicle Dynamics Stage 2 3.0 Suspension System for the 2023–2025 Toyota Sequoia (TRD models) is a premium, high-performance upgrade engineered to deliver exceptional damping control, increased wheel travel, and superior on- and off-road capability. Featuring massive 3.0 Series remote reservoir shocks with CDCV adjustability, billet aluminum components, and a complete suspension package, this system is designed for drivers seeking maximum performance, strength, and precision tuning across any terrain.

Adjustable 3–4.25” Lift for Maximum Clearance

This system provides adjustable front lift from 3 to 4.25 inches when paired with ICON billet upper control arms, allowing for proper fitment of up to 35” tires. The increased ride height improves ground clearance, approach angles, and overall off-road capability while maintaining excellent on-road drivability.

3.0 Series Remote Reservoir Coilovers with CDCV

ICON’s 3.0 Series front coilovers feature remote reservoirs for increased oil capacity and superior heat dissipation, ensuring consistent damping performance under extreme conditions. Equipped with CDCV (Compression Damping Control Valve), these shocks offer 10 levels of compression adjustment, allowing you to fine-tune ride quality from comfortable street driving to aggressive off-road use.

3.0 Series Rear Shocks for Balanced Performance

The Stage 2 system upgrades the rear suspension with matching 3.0 Series remote reservoir shocks, providing improved damping control, reduced fade, and better overall balance between the front and rear suspension system. This ensures enhanced stability, comfort, and control across all terrain types.

Billet Aluminum Upper Control Arms with Delta Joint PRO

Precision CNC-machined billet aluminum upper control arms are included to correct suspension geometry and improve alignment adjustability. Equipped with ICON’s Delta Joint PRO, these UCAs provide up to 90 degrees of articulation while eliminating bind and maximizing suspension travel.

Complete Billet Rear Link System & Track Bar

This system includes billet rear upper and lower links to improve axle control, increase articulation, and allow for on-vehicle pinion angle adjustment. An adjustable rear track bar ensures proper axle centering after lifting, improving handling and overall suspension performance.

Dual-Rate Rear Coil Springs for Comfort and Load Handling

Dual-rate rear coil springs provide a smooth initial ride with added support under load, improving both ride comfort and off-road capability. This design enhances stability whether you're daily driving, towing, or exploring rugged terrain.

Optimized Suspension Geometry and Sway Bar Correction

A front sway bar drop kit is included to reduce bind on factory components and maintain proper suspension geometry after lifting. This ensures consistent handling characteristics and improved durability across the full range of suspension travel.

Engineered for Extreme Performance and Durability

Constructed from CNC-machined 6061 aircraft-grade aluminum and premium shock components, this system is built for long-term durability in harsh conditions. ICON shocks are fully rebuildable and revalvable, providing long-lasting performance and serviceability.

Complete Bolt-On Suspension Solution

This Stage 2 system is a comprehensive bolt-on upgrade that dramatically enhances ride quality, stability, and off-road capability without requiring permanent modifications. It is ideal for overlanding, towing, and high-performance off-road driving.

Specifications

• Vehicle Fitment: 2023–2025 Toyota Sequoia (TRD Models)
• Front Lift Height: 3"–4.25" Adjustable
• Rear Lift Height: ~2"–4" (varies by configuration)
• Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDCV
• Rear Shocks: ICON 3.0 Series Remote Reservoir Shocks with CDCV
• Upper Control Arms: Billet Aluminum with Delta Joint PRO
• Rear Links: Billet Upper & Lower Links Included
• Rear Track Bar: Adjustable Track Bar Included
• Rear Springs: Dual-Rate Coil Springs
• Damping Control: CDCV Adjustable Compression (10 Settings)
• Suspension Travel: Increased Wheel Travel Over Stock
• Recommended Tire Size: Up to 35"
• Shock Construction: CNC Machined 6061 Aluminum, Large 3.0 Bodies
• Reservoir Type: Remote Reservoir for Maximum Cooling
• Serviceability: Fully Rebuildable & Revalvable
• Install Type: Bolt-On System
• Use Case: Daily Driving, Overlanding, Towing, High-Performance Off-Road
