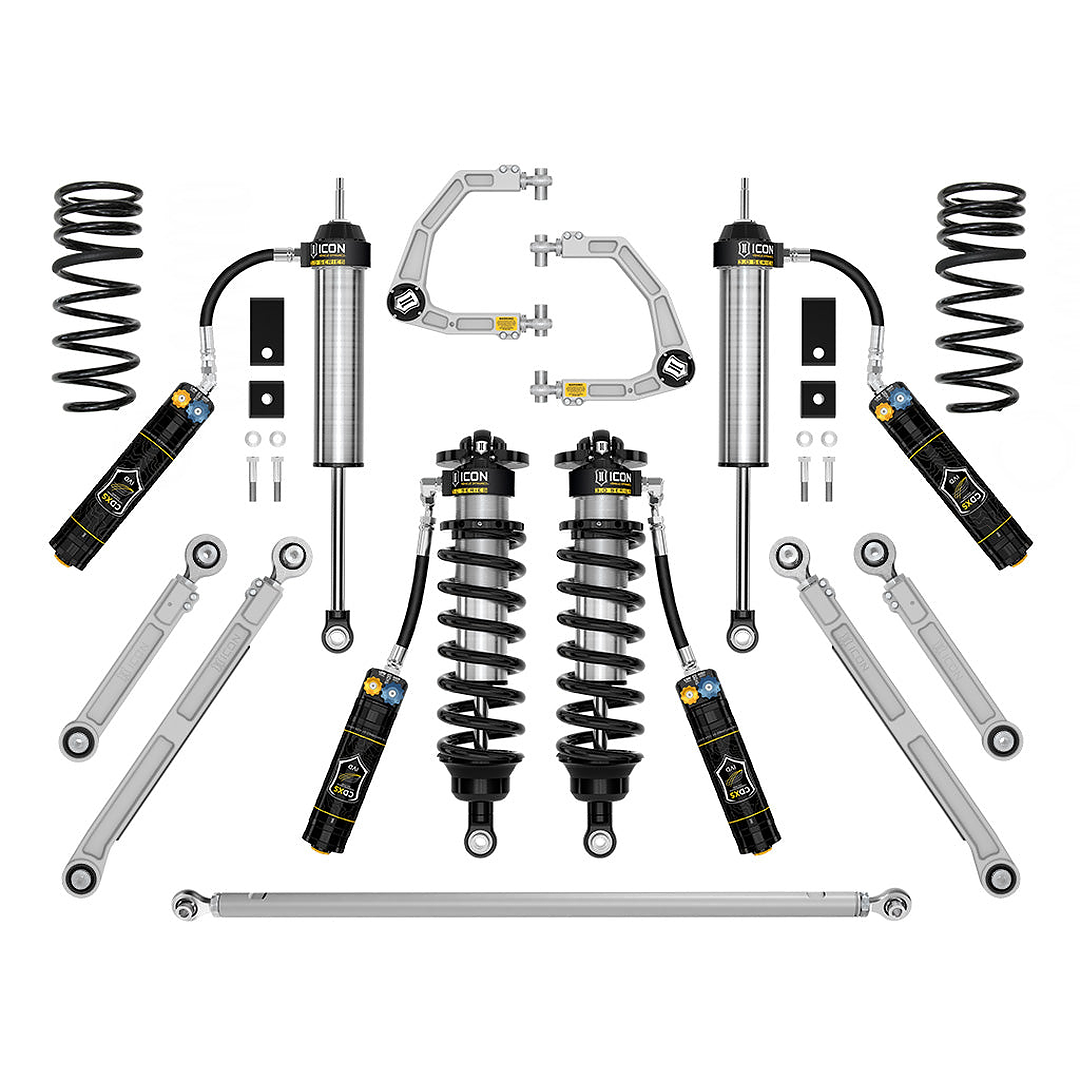

ICON 2023-2025 Toyota Sequoia, 3-4.25" Lift, Stage 2 (TRD), 3.0 Suspension System, Billet, CDXS (K53252DS)
The ICON Vehicle Dynamics Stage 2 3.0 Suspension System with Billet Upper Control Arms and CDXS technology is a premium suspension upgrade engineered specifically for 2023–2025 Toyota Sequoia TRD models. This advanced system builds upon ICON’s Stage 1 platform with upgraded 3.0 Series rear remote reservoir shocks and full CDXS adjustability, delivering exceptional ride control, increased wheel travel, and superior off-road capability. Designed for drivers who demand performance and reliability, this system provides optimized suspension geometry, improved stability, and the ability to run up to 35-inch tires with confidence.
Adjustable 3–4.25” Front Lift for Aggressive Stance
ICON 3.0 Series front coilovers provide adjustable ride height from 3” to 4.25” of lift when paired with the included billet upper control arms. This adjustability allows for proper stance setup, increased ground clearance, and fitment of larger, more aggressive tire combinations.
3.0 Series Coilovers with CDXS Dual-Speed Compression Control
The large-diameter 3.0 Series front coilovers feature ICON’s Compression Damping Dual Speed (CDXS) technology, offering independent high-speed and low-speed compression adjustments. With 10 selectable settings for each range, drivers can precisely tune suspension performance for comfort, load handling, or aggressive off-road driving.
Billet Aluminum Upper Control Arms with Delta Joint PRO
CNC-machined billet aluminum upper control arms correct suspension geometry at increased lift heights while providing additional caster and camber adjustment. Equipped with ICON’s Delta Joint PRO, these arms allow full suspension articulation while eliminating bind and improving long-term durability.
Billet Rear Links and Adjustable Track Bar
This Stage 2 system includes billet aluminum rear upper and lower links along with an adjustable rear track bar. These components help maintain proper axle alignment, improve articulation, and reduce drivetrain stress during off-road operation.
3.0 Series Rear Remote Reservoir Shocks
The system includes ICON 3.0 Series rear remote reservoir shocks that deliver increased oil capacity and superior heat dissipation. Compared to smaller shock designs, these larger shocks provide greater damping consistency, improved bottom-out resistance, and enhanced ride stability across rough terrain.
Dual-Rate Rear Coil Springs for Balanced Load Support
Dual-rate rear coil springs provide progressive performance with a soft initial rate for comfort and a firmer secondary rate for load stability. This design maintains proper ride height and improves overall control when towing or carrying additional cargo.
Increased Suspension Travel and Vehicle Control
Vehicle-specific shock lengths and optimized geometry components increase suspension travel by up to 40% compared to factory suspension. This improved articulation enhances traction, ride comfort, and handling performance across uneven terrain.
Engineered for TRD Performance Models
This system is specifically designed for TRD-equipped Sequoia models, ensuring compatibility with factory components while delivering increased off-road capability and improved driving confidence in demanding conditions.
Specifications
- Vehicle Fitment: 2023–2025 Toyota Sequoia (TRD Models)
- SKU: K53252DS
- Lift Height: 3"–4.25" Adjustable Front Lift
- Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDXS
- Rear Shocks: ICON 3.0 Series Remote Reservoir with CDXS
- Rear Springs: Dual-Rate Coil Springs
- Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Billet Adjustable Rear Track Bar Included
- Sway Bar Components: Front Sway Bar Drop Kit Included
- Shock Adjustability: Independent High-Speed and Low-Speed Compression (CDXS)
- Shock Body Diameter: 3.0"
- Suspension Travel: Up to 40% Increased Wheel Travel Over Stock
- Recommended Tire Size: Up to 35" x 12.50" (Minor Trimming May Be Required)
- Recommended Wheels: 17x8.5" with ~25mm Offset or 18x9" with ~25mm Offset
- Material: CNC-Machined 6061 Aluminum and High-Strength Steel Components
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Not Compatible with Load-Leveling Rear Height Control Air Suspension
- Application Note: ADAS recalibration required after installation
- Use Case: Daily Driving, Overlanding, Towing, Off-Road Performance
