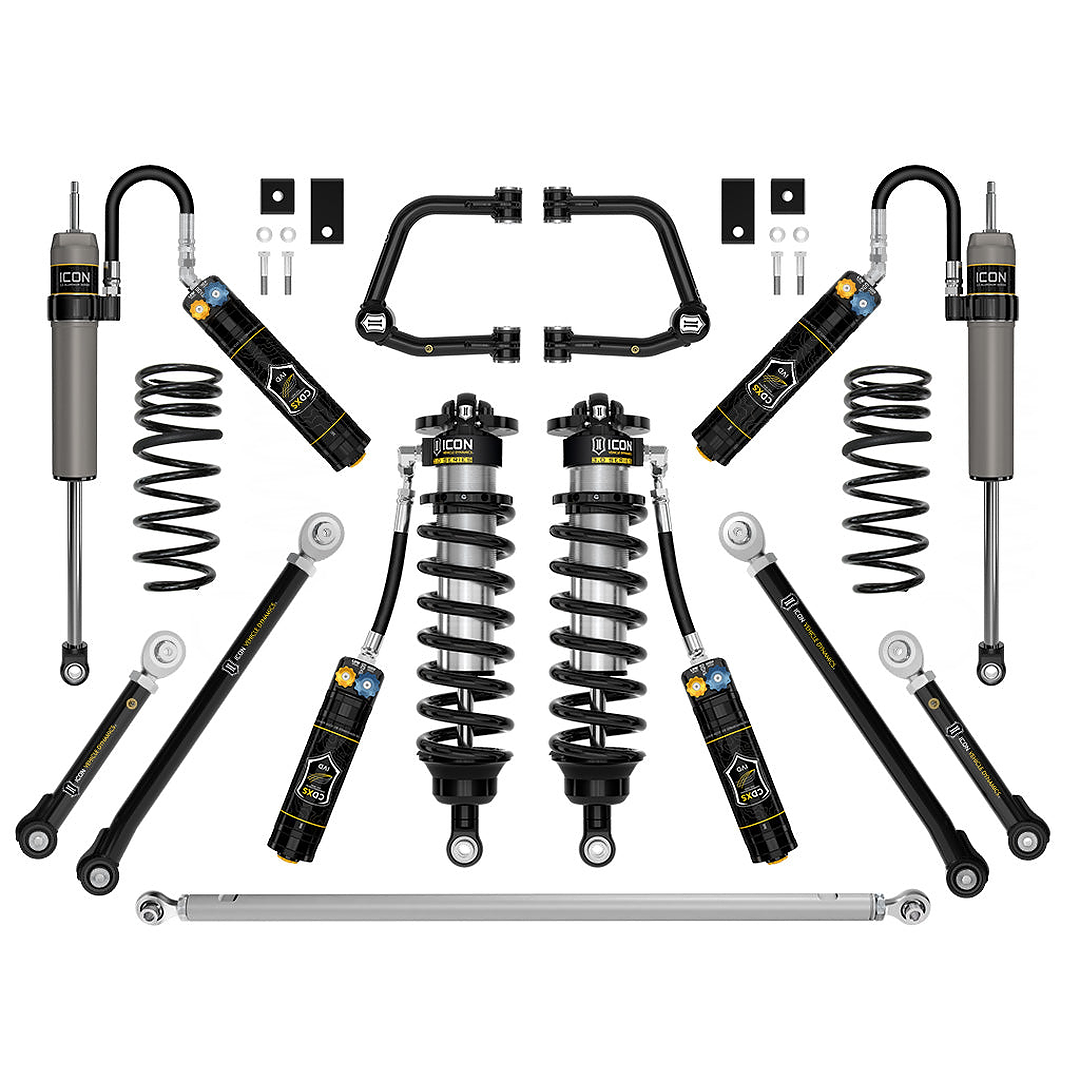

ICON 2023-2025 Toyota Sequoia, 3-4.25" Lift, Stage 1, 3.0 Suspension System, Tubular, CDXS (K53251TD)
The ICON Vehicle Dynamics Stage 1 3.0 Suspension System is a premium suspension upgrade engineered specifically for 2023–2025 Toyota Sequoia models. Designed to significantly improve ride quality, off-road performance, and suspension capability, this system features massive 3.0 Series front coilovers with CDXS dual-speed compression adjustment, tubular upper control arms, billet rear link components, and matched 2.5 Series rear remote reservoir shocks. Built for drivers seeking increased ground clearance and superior damping control, this system delivers outstanding performance across daily driving, towing, and off-road terrain.
Adjustable 3–4.25” Front Lift for Larger Tire Fitment
The ICON 3.0 Series front coilovers provide adjustable lift heights from approximately 3” to 4.25” when paired with tubular upper control arms. This increased ride height allows the installation of larger wheel and tire combinations, supporting up to 35” tires for improved stance and off-road clearance.
3.0 Series Coilovers with CDXS Dual-Speed Compression
ICON’s 3.0 Series remote reservoir coilovers feature CDXS dual-speed compression adjustment, allowing independent tuning of both high-speed and low-speed compression damping. The large 3.0" shock body increases fluid capacity and heat dissipation, improving performance and reducing fade during aggressive driving.
Hydraulic Bump Zone for Maximum Bottom-Out Control
The advanced multi-stage hydraulic bump zone increases damping force during the final portion of suspension travel. This technology dramatically improves bottom-out resistance and helps maintain vehicle control during hard impacts and rough terrain driving.
Tubular Upper Control Arms for Corrected Geometry
Heavy-duty tubular upper control arms improve suspension geometry and alignment angles when operating at increased ride heights. These components provide improved durability and proper caster correction for stable handling characteristics.
2.5 Series Rear Remote Reservoir Shocks
The rear suspension includes ICON 2.5 Series CDXS remote reservoir shocks that provide improved damping balance and cooling capacity. These shocks work together with the front suspension to maintain predictable handling and ride comfort under heavy loads or aggressive off-road conditions.
Rear Links and Track Bar for Improved Alignment
Billet rear upper and lower link components along with an adjustable rear track bar help maintain proper axle alignment and pinion angle. These upgrades improve articulation, reduce drivetrain stress, and enhance long-term suspension performance.
Dual-Rate Rear Coil Springs for Balanced Ride Quality
The included dual-rate rear coil springs deliver progressive support that enhances daily ride comfort while improving load-handling capability. This design helps maintain consistent ride height and improves bottom-out resistance under heavy cargo or towing conditions.
Engineered for Increased Travel and Stability
Vehicle-specific shock lengths and geometry correction components provide significantly increased suspension travel compared to factory components. The result is improved traction, enhanced ride stability, and greater confidence when driving on uneven terrain.
Specifications
- Vehicle Fitment: 2023–2025 Toyota Sequoia
- SKU: K53251TD
- Lift Height: 3"–4.25" Adjustable Front Lift / ~0"–2" Rear Lift
- Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDXS
- Rear Shocks: ICON 2.5 Series Remote Reservoir with CDXS
- Rear Springs: Progressive Dual-Rate Coil Springs
- Upper Control Arms: Tubular Steel UCAs
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Adjustable Rear Track Bar Included
- Sway Bar Components: Front Sway Bar Drop Kit Included
- Shock Adjustability: Independent High- and Low-Speed Compression (CDXS)
- Front Shock Body Diameter: 3.0"
- Rear Shock Body Diameter: 2.5"
- Suspension Travel: Increased Wheel Travel Over Stock
- Recommended Tire Size: Up to 35" x 12.50"
- Recommended Wheels: 17x8.5" with 5.75" Backspacing / 25mm Offset
- Material: High-Strength Steel and CNC-Machined Components
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Designed for Standard (Non-TRD Specific) Sequoia Models
- Application Note: ADAS recalibration recommended after installation
- Use Case: Daily Driving, Overlanding, Off-Road Performance
