ICON 2023-2025 Toyota Sequoia, 3-4.25" Lift, Stage 1 (TRD), 3.0 Suspension System, Billet, CDXS (K53251DS)

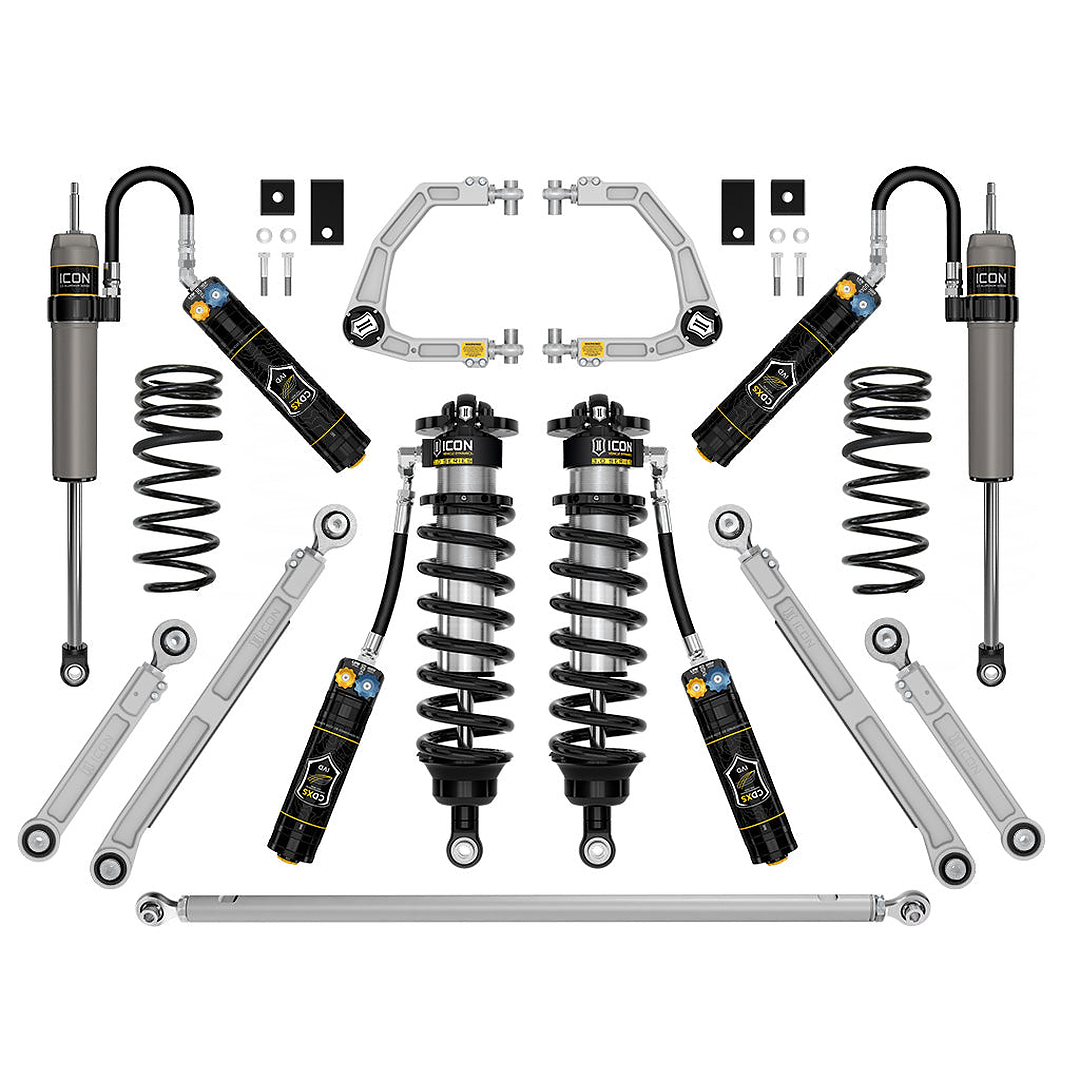

The ICON Vehicle Dynamics Stage 1 3.0 Suspension System is a premium upgrade engineered for 2023–2025 Toyota Sequoia TRD models. Designed to significantly improve ride quality, suspension performance, and overall vehicle capability, this system features 3.0 Series remote reservoir front coilovers with CDXS dual-speed compression adjustment, billet aluminum upper control arms, billet rear links, and dual-rate rear coil springs. Built for drivers who demand superior handling, load capability, and off-road performance, this system delivers increased wheel travel, enhanced stability, and improved ride comfort across all terrain conditions.
Adjustable 3–4.25” Front Lift for Enhanced Clearance
The ICON 3.0 Series front coilovers provide adjustable lift height from approximately 3” to 4.25” over stock when paired with the included billet upper control arms. This added ride height improves ground clearance and allows fitment of up to 35” tires for increased off-road capability and improved stance.
3.0 Series Coilovers with CDXS Dual-Speed Compression Adjustment
The front coilovers feature large-diameter 3.0 Series shock bodies with remote reservoirs and ICON’s CDXS technology. This system allows independent adjustment of high-speed and low-speed compression damping, providing precise control over ride comfort, handling response, and bottom-out resistance during aggressive off-road driving.
Billet Aluminum Upper Control Arms with Delta Joint PRO
Precision CNC-machined billet aluminum upper control arms improve suspension geometry, increase caster and camber adjustment, and provide enhanced durability. ICON’s Delta Joint PRO delivers up to 90 degrees of articulation while maintaining long-term reliability and serviceability.
Dual-Rate Rear Coil Springs for Balanced Ride Performance
Dual-rate rear coil springs provide improved comfort during normal driving while increasing bottom-out resistance under load. On TRD-equipped Sequoia models, these springs provide approximately 2” of rear lift, helping maintain a balanced stance and improved load-handling capability.
Billet Rear Links for Strength and Articulation
Billet aluminum rear upper and lower links improve rear suspension articulation and allow precise pinion angle adjustment. Their durable construction enhances drivetrain alignment and supports increased suspension travel during off-road use.
Adjustable Rear Track Bar for Proper Axle Alignment
An adjustable billet rear track bar is included to properly center the rear axle following lift installation. On-vehicle adjustability simplifies alignment and ensures proper suspension geometry for improved handling and stability.
Balanced Rear Performance with 2.5 Series CDXS Shocks
ICON 2.5 Aluminum Series rear remote reservoir shocks equipped with CDXS technology provide balanced damping performance and improved cooling efficiency. This design maintains consistent shock performance across demanding terrain and extended driving conditions.
Up to 40% Increase in Suspension Travel
The extended travel design of the 3.0 Series coilovers increases front suspension travel by up to 40% compared to stock components, improving traction, vehicle stability, and overall off-road capability.
Specifications
- Vehicle Fitment: 2023–2025 Toyota Sequoia (TRD Models)
- SKU: K53251DS
- Lift Height: 3"–4.25" Adjustable Front Lift / ~2" Rear Lift (TRD Models)
- Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDXS
- Rear Shocks: ICON 2.5 Aluminum Series Remote Reservoir with CDXS
- Rear Springs: Dual-Rate Coil Springs
- Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Adjustable Billet Rear Track Bar
- Sway Bar Components: Front Sway Bar Drop Brackets Included
- Shock Adjustability: Independent High- and Low-Speed Compression (CDXS)
- Suspension Travel: Up to 40% Increased Front Wheel Travel
- Recommended Tire Size: Up to 35" x 12.50"
- Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
- Shock Body Diameter: 3.0" Front / 2.5" Rear
- Serviceability: Fully Rebuildable and Re-Tunable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Not Compatible with Load-Leveling Rear Height Control or AVS Systems
- Application Note: ADAS recalibration required after installation
- Use Case: Daily Driving, Overlanding, Off-Road Performance
