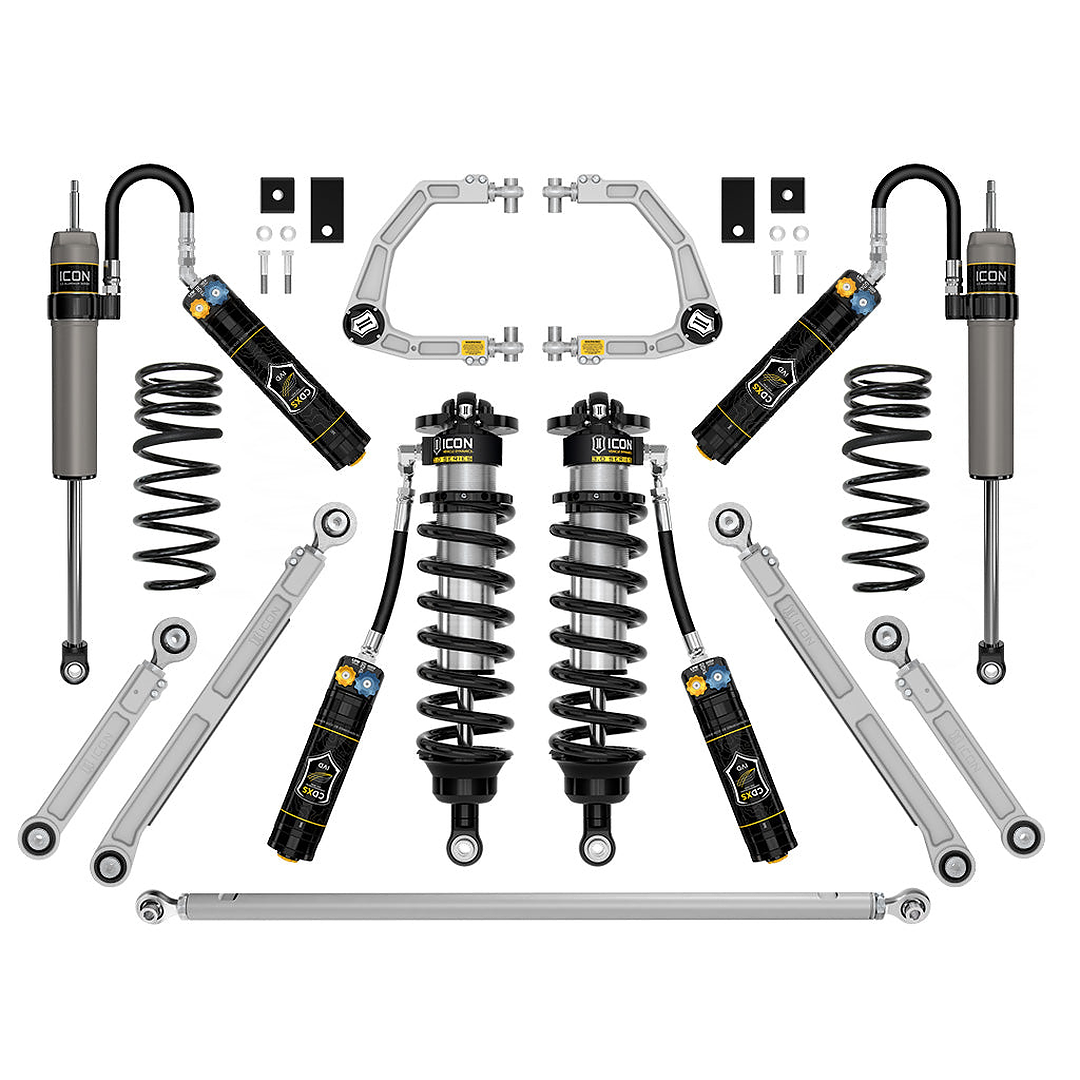

ICON 2023-2025 Toyota Sequoia 3-4.25" Lift Stage 1 3.0 Suspension System (Billet, CDXS) (K53251D)
The ICON Vehicle Dynamics Stage 1 3.0 Suspension System for the 2023–2025 Toyota Sequoia is a premium performance upgrade designed to deliver increased wheel travel, superior damping control, and enhanced ride quality both on and off-road. Featuring massive 3.0 Series remote reservoir coilovers with CDXS adjustability, billet aluminum upper control arms, and a complete rear suspension package, this system is engineered for drivers seeking maximum performance, durability, and precise tuning capability.
Adjustable 3–4.25” Lift for Maximum Clearance
This system provides adjustable front lift from 3 to 4.25 inches when paired with ICON billet upper control arms, allowing for proper alignment and clearance for up to 35” tires. The increased ride height improves ground clearance, approach angles, and overall off-road capability.
3.0 Series Remote Reservoir Coilovers with CDXS
ICON’s 3.0 Series front coilovers feature large shock bodies with increased piston surface area for improved damping performance and heat dissipation. Equipped with CDXS (Compression Damping Dual Speed), these shocks offer independent high- and low-speed compression adjustment, allowing you to fine-tune ride quality and performance for any terrain or driving style.
Advanced Hydraulic Bump Zone Technology
The 3.0 Series shocks incorporate a multi-stage hydraulic bump zone that progressively increases damping force during the final portion of suspension travel. This dramatically improves bottom-out resistance and keeps the vehicle stable during hard impacts and aggressive off-road driving.
Billet Aluminum Upper Control Arms with Delta Joint PRO
Precision CNC-machined billet aluminum upper control arms are included to correct suspension geometry and increase alignment adjustability. Equipped with ICON’s Delta Joint PRO, they provide up to 90 degrees of articulation while eliminating bind and maximizing usable wheel travel.
Complete Rear Suspension with CDXS Shocks
The rear suspension features ICON 2.5 Series remote reservoir shocks with CDXS adjustability, providing excellent damping control and balanced performance with the front system. Dual-rate rear coil springs enhance comfort while maintaining stability under load.
Billet Rear Link System & Adjustable Track Bar
This system includes billet aluminum upper and lower rear links for improved axle control, articulation, and durability. An adjustable rear track bar ensures proper axle centering after lifting, improving handling and overall suspension performance.
Optimized Geometry and Sway Bar Correction
A front sway bar drop kit is included to maintain proper suspension geometry and reduce component bind after lifting. This ensures consistent handling characteristics and long-term reliability.
Engineered for Maximum Performance and Durability
Constructed from CNC-machined 6061 aircraft-grade aluminum and premium shock components, this system is built to withstand extreme conditions. ICON shocks are fully rebuildable and revalvable, ensuring long-term serviceability and consistent performance.
Complete Bolt-On Suspension System
This Stage 1 system is a comprehensive bolt-on upgrade that dramatically enhances ride quality, stability, and off-road capability without requiring permanent modifications. It is ideal for overlanding, towing, and high-performance off-road use.
Specifications
- Vehicle Fitment: 2023–2025 Toyota Sequoia
- Front Lift Height: 3"–4.25" Adjustable
- Rear Lift Height: ~2"–3" (varies by configuration)
- Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDXS
- Rear Shocks: ICON 2.5 Series Remote Reservoir Shocks with CDXS
- Upper Control Arms: Billet Aluminum with Delta Joint PRO
- Rear Links: Billet Upper & Lower Links Included
- Rear Track Bar: Adjustable Track Bar Included
- Rear Springs: Dual-Rate Coil Springs
- Damping Control: CDXS Independent High/Low Speed Compression Adjustment
- Suspension Travel: Increased Wheel Travel Over Stock
- Recommended Tire Size: Up to 35"
- Shock Construction: CNC Machined 6061 Aluminum Bodies
- Reservoir Type: Remote Reservoir for Maximum Cooling
- Serviceability: Fully Rebuildable & Revalvable
- Install Type: Bolt-On System
- Use Case: Daily Driving, Overlanding, Towing, High-Performance Off-Road
