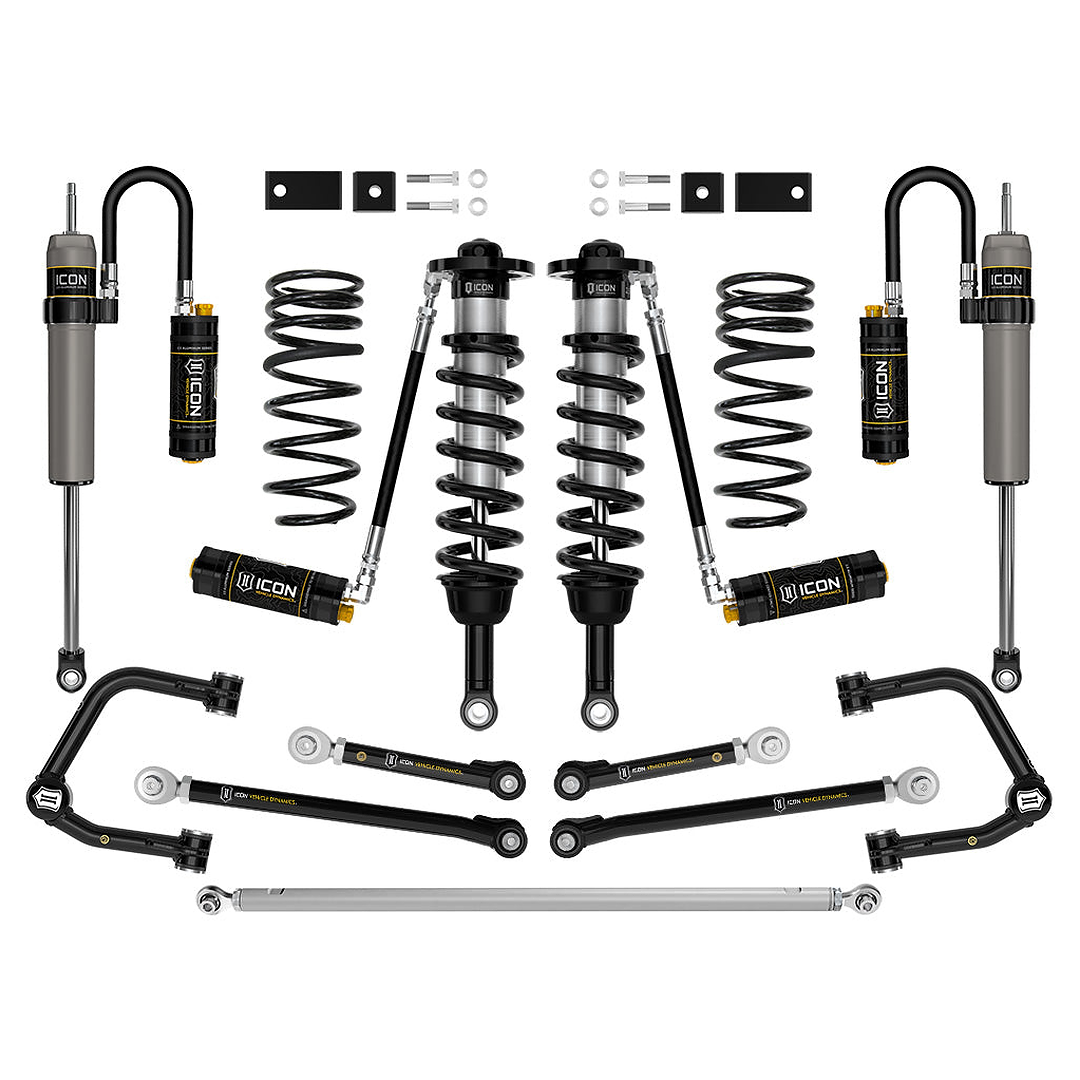

ICON 2023-2025 Toyota Sequoia, 3-4.5" Lift, Stage 10 Suspension System, Tubular, CDCV, TRD (K53240TS)
The ICON Vehicle Dynamics Stage 10 Suspension System is a premium performance upgrade engineered specifically for 2023–2025 Toyota Sequoia TRD models. Designed to deliver exceptional ride quality, increased wheel travel, and superior off-road capability, this system builds upon the Stage 9 platform with the addition of billet rear links and an adjustable rear track bar. Featuring 2.5 Series remote reservoir coilovers with CDCV compression adjustment, tubular upper control arms, and dual-rate rear coil springs, this system provides outstanding handling, durability, and control for both daily driving and demanding off-road environments.
Adjustable 3–4.5” Front Lift for Larger Tire Fitment
The included ICON 2.5 Series remote reservoir front coilovers provide adjustable lift height ranging from approximately 3” to 4.5”. This lift range allows clearance for larger wheel and tire combinations, supporting up to 35” tires while maintaining proper suspension geometry and improved ground clearance.
2.5 Series Coilovers with CDCV Compression Adjustment
ICON 2.5 Series coilovers are equipped with CDC Valves offering 10 levels of compression damping adjustment. This allows drivers to fine-tune suspension performance from soft comfort settings to firm off-road control, improving handling and ride quality across varying terrain conditions.
Tubular Upper Control Arms with Delta Joint PRO
Heavy-duty tubular upper control arms improve front suspension geometry and alignment at increased lift heights. The integrated Delta Joint PRO allows full suspension travel while reducing bind, improving articulation, and enhancing long-term durability.
Billet Rear Link System and Adjustable Track Bar
This Stage 10 system includes billet aluminum rear upper and lower links along with an adjustable rear track bar. These components maintain proper axle alignment, improve articulation, and reduce drivetrain stress, resulting in enhanced handling and long-term reliability.
Dual-Rate Rear Coil Springs for Load Stability
The included dual-rate rear coil springs provide progressive support that improves ride comfort while maintaining stability under load. This design enhances bottom-out resistance and helps maintain proper ride height when towing or carrying cargo.
Rear Remote Reservoir Shocks with Internal Bump Zones
ICON 2.5 Aluminum Series rear remote reservoir shocks increase oil capacity and cooling efficiency, reducing heat buildup during extended use. Integrated internal bump zones increase damping force during hard impacts, improving stability and overall control.
Improved Suspension Travel and Performance
Vehicle-specific shock tuning and optimized suspension geometry provide up to 40% increased wheel travel compared to factory components. This added articulation improves traction, ride stability, and overall vehicle performance across rugged terrain.
Engineered for TRD Performance Models
This system is designed specifically for TRD-equipped Sequoia models, ensuring compatibility with factory features while delivering enhanced off-road capability and driving confidence in demanding environments.
Specifications
- Vehicle Fitment: 2023–2025 Toyota Sequoia (TRD Models)
- SKU: K53240TS
- Lift Height: 3"–4.5" Adjustable Front Lift / Up to ~2" Rear Lift
- Front Shocks: ICON 2.5 Series Remote Reservoir Coilovers with CDCV
- Rear Shocks: ICON 2.5 Series Remote Reservoir with CDCV
- Rear Springs: Dual-Rate Coil Springs
- Upper Control Arms: Tubular Steel UCAs with Delta Joint PRO
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Billet Adjustable Rear Track Bar Included
- Sway Bar Components: Front Sway Bar Drop Kit Included
- Shock Adjustability: 10-Position Compression Adjustment (CDCV)
- Shock Body Diameter: 2.5"
- Suspension Travel: Up to 40% Increased Wheel Travel Over Stock
- Recommended Tire Size: Up to 35" x 12.50"
- Recommended Wheels: 17x8.5" or 18x9" with Proper Backspacing
- Material: High-Strength Steel and CNC-Machined Aluminum Components
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Not Compatible with Load-Leveling Rear Height Control Air Suspension
- Application Note: ADAS recalibration required after installation
- Use Case: Daily Driving, Overlanding, Towing, Off-Road Performance
