ICON 2022-2025 Toyota Tundra, 2-3.25" Lift, Stage 4, 3.0 Suspension System, Tubular (K53214T)

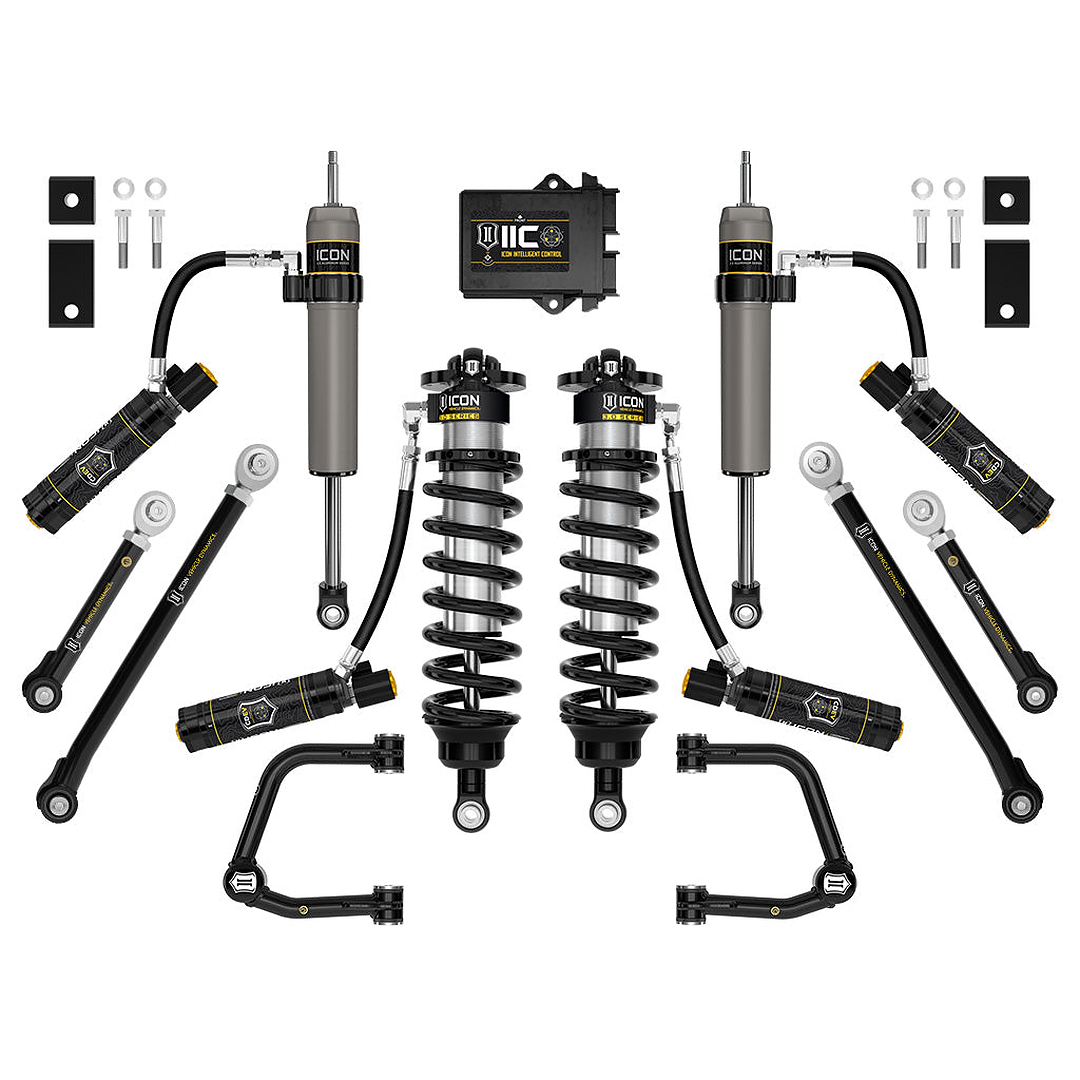

The ICON Vehicle Dynamics Stage 4 3.0 Suspension System with Tubular Upper Control Arms is a premium suspension upgrade engineered specifically for 2022–2025 Toyota Tundra models. This advanced system builds upon ICON’s Stage 1 platform with the addition of electronic compression damping technology, tubular suspension links, and enhanced geometry correction components. Featuring massive 3.0 Series remote reservoir coilovers with CDEV electronic damping, tubular upper control arms, and matched 2.5 Series rear reservoir shocks, this system delivers exceptional ride comfort, improved handling, and increased wheel travel for demanding off-road and overland applications.
Adjustable 2–3.25” Front Lift for Larger Tire Fitment
The ICON 3.0 Series front coilovers provide adjustable ride height from approximately 2” to 3.25” of lift when used with the included tubular upper control arms. This lift range improves ground clearance and allows fitment of up to 35” tires, enhancing both off-road performance and overall vehicle stance.
3.0 Series Coilovers with CDEV Electronic Damping
The large-diameter 3.0 Series coilovers feature Compression Damping Electronic Valve (CDEV) technology, allowing real-time adjustment of damping performance through the ICON Intelligent Control (IIC) system. This advanced technology automatically adapts to changing terrain conditions, delivering optimal ride comfort and control.
Tubular Upper Control Arms with Delta Joint PRO
The included tubular upper control arms improve suspension geometry, provide additional caster correction, and enhance durability. Equipped with ICON’s patented Delta Joint PRO, these control arms allow full suspension travel while eliminating bind and maximizing articulation.
Tubular Rear Upper and Lower Links
Heavy-duty tubular rear links are constructed from DOM steel tubing and feature PTFE-lined rod ends for improved articulation and strength. These adjustable components allow on-vehicle pinion angle tuning while reducing drivetrain stress during off-road use.
2.5 Series Rear Remote Reservoir Shocks
The system includes ICON 2.5 Aluminum Series rear remote reservoir shocks designed to provide consistent damping performance and increased cooling capacity. Internal bump zones increase bottom-out resistance, improving vehicle control during aggressive driving conditions.
Hydraulic Bump Zone for Improved Bottom-Out Control
ICON’s multi-stage hydraulic bump zone technology increases damping force during the final stage of compression travel. This design significantly improves bottom-out resistance and maintains vehicle stability when encountering harsh terrain or sudden impacts.
Sway Bar Drop Kit for Full Suspension Movement
Included sway bar drop brackets reduce binding in the factory sway bar links, allowing smoother suspension operation and maximizing available wheel travel without overstressing factory components.
Increased Suspension Travel and Vehicle Stability
Vehicle-specific shock lengths and geometry correction components allow up to a 40% increase in front wheel travel compared to factory suspension. This improvement enhances traction, ride comfort, and overall vehicle control across challenging terrain.
Specifications
- Vehicle Fitment: 2022–2025 Toyota Tundra
- SKU: K53214T
- Lift Height: 2"–3.25" Adjustable Front Lift
- Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDEV
- Rear Shocks: ICON 2.5 Series Remote Reservoir with CDEV
- Upper Control Arms: Tubular Steel UCAs with Delta Joint PRO
- Rear Links: Tubular Adjustable Rear Upper and Lower Links
- Sway Bar Components: Sway Bar Drop Brackets Included
- Shock Adjustability: Electronic Compression Damping (CDEV)
- Suspension Travel: Up to 40% Increased Wheel Travel Over Stock
- Recommended Tire Size: Up to 35" x 12.50" (Minor Trimming May Be Required)
- Recommended Wheels: 17x8.5" with 5.75" Backspacing / 25mm Offset
- Material: DOM Steel Tubular Components and CNC-Machined Aluminum
- Finish: Multi-Stage Corrosion-Resistant Powder Coat
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Compatibility Note: Not Compatible with Load-Leveling Rear Height Control Air Suspension
- Application Note: Requires recalibration of Advanced Driver Assistance Systems (ADAS)
- Use Case: Daily Driving, Overlanding, Heavy Off-Road Use
