ICON Vehicle Dynamics

ICON 2022-2025 Toyota Tundra, 1.25-3.25" Lift, Stage 4, 3.0 Suspension System, Billet (K53214)

SKU ICOK53214
$11,056.36
$11,056.36

Estimated shipping time

You can typically expect your items to arrive within 4–7 business days, depending on your location and product availability.

What is your Return Policy?

At Course & Trail, we want every customer to shop with confidence. If something doesn’t go as planned, we’ve made returns and refunds simple and fair. Here’s how it works:

  • 14-Day Return Window: You can return unused, undamaged items in original packaging within 14 days of receiving your order.
  • Free Return Shipping: We cover return shipping costs for eligible returns and exchanges.
  • Change of Mind? Return within 7 days for a refund (25% restocking fee applies).
  • Defective or Wrong Item? Contact us within 48 hours—we’ll replace it or refund you in full.
  • Didn’t Receive Your Order? Let us know and we’ll investigate or send a replacement.
  • Exclusions: Custom items, perishables, intimate goods (unless unopened), gift cards, and digital products are non-returnable.

Refunds are processed to your original payment method within 14 days of approval.

Questions? Reach us at support@courseandtrail.com or +1 463-465-2453 (Mon–Fri, 9am–5pm EST)

Product Description

ICON 2022-2025 Toyota Tundra, 1.25-3.25" Lift, Stage 4, 3.0 Suspension System, Billet (K53214)

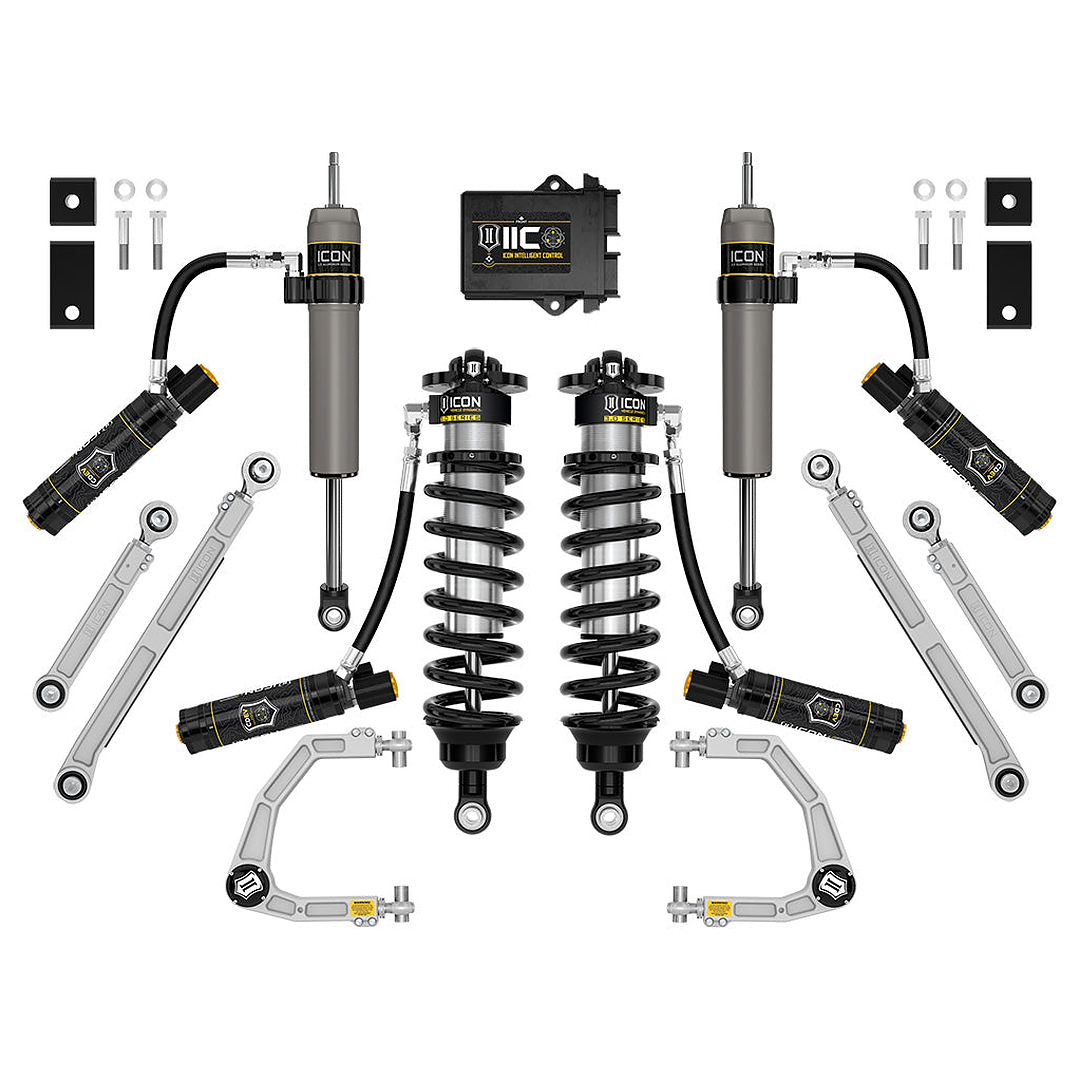

The ICON Vehicle Dynamics Stage 4 3.0 Suspension System is a premium performance upgrade engineered for 2022–2025 Toyota Tundra models. Building upon the Stage 1 platform, this system introduces advanced Compression Damping Electronic Valve (CDEV) technology and ICON Intelligent Control (IIC), delivering active suspension tuning and exceptional ride control. Featuring 3.0 Series remote reservoir coilovers, billet aluminum upper control arms, billet rear links, and 2.5 Series rear remote reservoir shocks, this system provides increased suspension travel, enhanced alignment capability, and improved performance both on-road and off-road.

Adjustable 1.25–3.25” Front Lift for Improved Stance

The included 3.0 Series coilovers provide adjustable front lift from 1.25” to 3.25” when paired with the billet upper control arms. This increased height improves ground clearance and allows installation of up to 35” tires, delivering a more aggressive stance and enhanced off-road capability.

3.0 Series Coilovers with CDEV and Intelligent Control

This system features ICON’s CDEV technology with ICON Intelligent Control (IIC), enabling active compression damping adjustments based on terrain conditions. Drivers can fine-tune suspension behavior using the IIC interface, allowing precise control of ride quality and bottom-out resistance during aggressive driving.

Billet Aluminum Upper Control Arms with Delta Joint PRO

Precision CNC-machined billet aluminum upper control arms improve suspension geometry, allowing increased caster and camber adjustment. ICON’s Delta Joint PRO design replaces factory ball joints and allows full suspension travel while minimizing binding and increasing long-term durability.

Billet Rear Links for Improved Articulation

This system includes billet rear upper and lower links designed to enhance articulation and allow precise pinion angle adjustments. These components improve suspension function and drivetrain alignment under demanding driving conditions.

2.5 Series Rear Remote Reservoir Shocks

ICON 2.5 Aluminum Series rear shocks with remote reservoirs provide improved heat dissipation and consistent damping performance. Their larger oil capacity supports balanced suspension behavior and improved ride quality across rough terrain.

Hydraulic Bump Zone for Superior Bottom-Out Control

The 3.0 Series coilovers feature ICON’s multi-stage hydraulic “Bump Zone,” which increases damping force near the end of suspension travel. This design significantly improves bottom-out resistance during high-speed off-road driving or unexpected impacts.

Enhanced Suspension Travel and Ride Control

Vehicle-specific shock lengths and advanced geometry provide up to a 40% increase in front wheel travel compared to stock suspension. This increased articulation improves traction, ride stability, and driver confidence across challenging terrain.

Specifications

  • Vehicle Fitment: 2022–2025 Toyota Tundra
  • SKU: K53214
  • Lift Height: 1.25"–3.25" Adjustable Front Lift
  • Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDEV
  • Rear Shocks: ICON 2.5 Aluminum Series Remote Reservoir with CDEV
  • Rear Springs: Factory-Compatible Rear Suspension with Link Upgrades
  • Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
  • Rear Links: Billet Adjustable Rear Upper and Lower Links
  • Sway Bar Components: Front Sway Bar Drop Kit Included
  • Shock Adjustability: Electronic Compression Adjustment (CDEV with IIC)
  • Suspension Travel: Up to 40% Increased Front Wheel Travel
  • Recommended Tire Size: Up to 35" Tires
  • Shock Body Diameter: 3.0" Front / 2.5" Rear
  • Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
  • Serviceability: Fully Rebuildable and Revalvable Shocks
  • Install Type: Bolt-On System
  • Compatibility Note: Not Compatible with Load-Leveling Air Suspension
  • Fitment Note: Excludes TRD Pro Models
  • Application Note: Requires ICON Intelligent Control setup
  • Use Case: Daily Driving, Overlanding, Off-Road Performance
