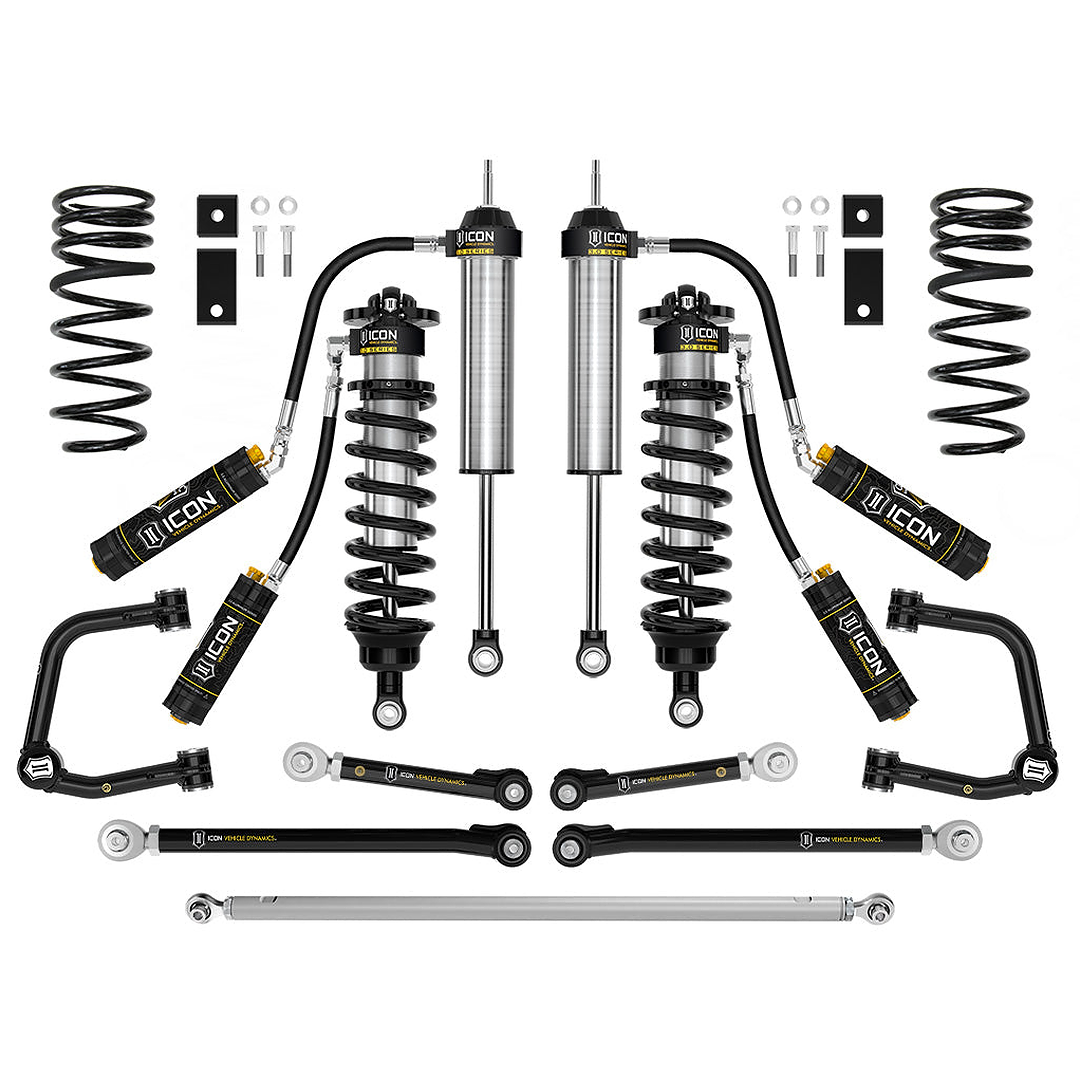

ICON 2022-2025 Toyota Tundra, 2-3.25" Lift, Stage 3, 3.0 Suspension System, Tubular, CDCV (K53213T)
The ICON Vehicle Dynamics Stage 3 3.0 Suspension System is a high-performance suspension upgrade engineered for the 2022–2025 Toyota Tundra. Designed to deliver increased suspension travel, superior damping performance, and improved ride quality, this system features large-diameter 3.0 Series CDCV remote reservoir coilovers, tubular upper control arms, billet rear links, triple-rate rear coil springs, and an adjustable rear track bar. Built for drivers who demand serious capability, this system enhances both daily driving comfort and off-road performance while supporting aggressive wheel and tire setups.
Adjustable 2–3.25” Front Lift for Aggressive Tire Fitment
The ICON 3.0 Series front coilovers provide adjustable lift height from 2” to 3.25” over stock when paired with the included tubular upper control arms. This adjustability improves ground clearance and allows fitment of larger, more aggressive tires while maintaining proper suspension geometry and alignment.
3.0 Series Coilovers with CDC Valve Technology
The oversized 3.0 Series remote reservoir coilovers feature Compression Damping Control Valve (CDCV) technology, offering 10 external compression adjustment settings. These larger shocks provide increased oil capacity, improved cooling efficiency, and enhanced resistance to shock fade during aggressive driving conditions.
Tubular Upper Control Arms with Delta Joint PRO
The included tubular steel upper control arms improve front-end geometry and increase caster alignment while enhancing durability. ICON’s Delta Joint PRO provides excellent articulation and long-term reliability, eliminating bind and allowing maximum suspension travel throughout the suspension cycle.
Triple-Rate Rear Coil Springs for Comfort and Load Support
Triple-rate rear coil springs provide improved ride comfort with a progressive spring design that offers soft initial compliance and firm overload resistance. These springs enhance rear suspension performance and provide approximately 0.5” of rear lift for improved vehicle balance.
Adjustable Billet Rear Track Bar for Proper Axle Alignment
An adjustable billet rear track bar is included to properly re-center the rear axle following lift installation. The on-vehicle adjustability simplifies setup while maintaining correct suspension geometry and improving overall handling stability.
Billet Rear Links for Strength and Articulation
Heavy-duty billet rear upper and lower links improve articulation and allow pinion angle adjustment. Their strong construction enhances drivetrain alignment and supports increased suspension travel for improved durability under demanding driving conditions.
Balanced Rear Shock Performance with 3.0 Series Reservoir Shocks
ICON 3.0 Series rear remote reservoir shocks provide approximately 20% more rear wheel travel over stock. Their larger piston size and increased oil volume deliver consistent damping performance and improved vehicle control across uneven terrain.
Designed for Maximum Suspension Travel and Performance
This Stage 3 system builds upon ICON’s Stage 2 platform by adding triple-rate rear coils and an adjustable rear track bar. The result is improved ride quality, enhanced suspension performance, and reliable control during both highway driving and demanding off-road use.
Specifications
- Vehicle Fitment: 2022–2025 Toyota Tundra
- SKU: K53213T
- Lift Height: 2"–3.25" Adjustable Front Lift / ~0.5" Rear Lift
- Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDCV Adjustment
- Rear Shocks: ICON 3.0 Series Remote Reservoir CDCV Shocks
- Rear Springs: Triple-Rate Rear Coil Springs
- Upper Control Arms: Tubular Steel UCAs with Delta Joint PRO
- Rear Links: Billet Adjustable Rear Upper and Lower Links
- Rear Track Bar: Billet Adjustable Rear Track Bar
- Sway Bar Components: Front Sway Bar Drop Kit Included
- Shock Adjustability: 10-Position External Compression Adjustment
- Suspension Travel: Up to ~20% Increased Rear Travel
- Recommended Tire Size: Up to 35" Tires
- Shock Body Size: 3.0" Diameter Front and Rear
- Material: High-Strength Steel and CNC-Machined Aluminum Components
- Serviceability: Fully Rebuildable and Revalvable Shocks
- Install Type: Bolt-On System
- Fitment Notes: Designed for 2022–2025 Toyota Tundra Models
- Use Case: Daily Driving, Overlanding, Towing, Off-Road Performance
