Product Description

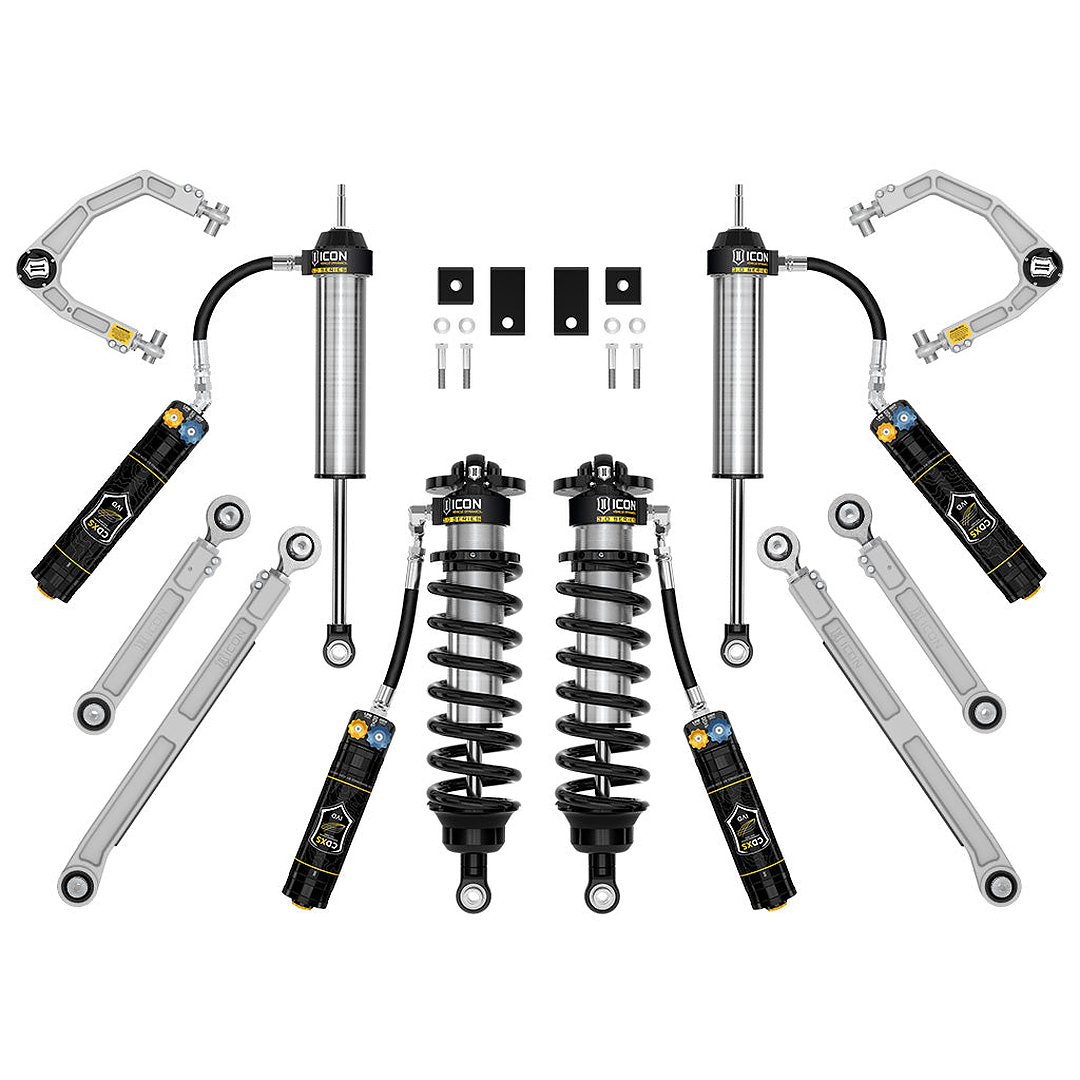

ICON 2022-2025 Toyota Tundra 1.25-3.25" Lift Stage 2 3.0 Suspension System (Billet, CDXS) (K53212D)

The ICON Vehicle Dynamics Stage 2 3.0 Suspension System for the 2022–2025 Toyota Tundra is a high-performance upgrade engineered to deliver superior damping control, increased wheel travel, and exceptional ride quality on and off-road. Built around massive 3.0 Series remote reservoir shocks with CDXS compression adjustability, billet aluminum components, and a complete front and rear suspension package, this system is designed for drivers who demand premium performance, strength, and tunability.

Adjustable 1.25–3.25” Lift for Optimal Stance

The front 3.0 Series coilovers provide adjustable lift from 1.25” to 3.25”, allowing you to dial in the perfect ride height for larger tires and improved ground clearance. When paired with ICON billet upper control arms, this system ensures proper alignment geometry and allows fitment of up to 35” tires.

3.0 Series Remote Reservoir Coilovers with CDXS

This system features ICON’s premium 3.0 Series shocks with remote reservoirs for increased oil capacity and heat dissipation. The CDXS (Compression Damping eXternal System) allows precise adjustment of compression damping, giving you the ability to fine-tune ride quality for daily driving, towing, or aggressive off-road conditions.

Increased Shock Performance and Capacity

The larger 3.0 shock bodies provide significantly increased piston surface area—up to 50% more in the ride zone and 100% more in the bump zone compared to 2.5 Series shocks—resulting in improved control, reduced fade, and superior performance under extreme conditions.

Billet Aluminum Upper Control Arms with Delta Joint PRO

Precision CNC-machined billet aluminum upper control arms are included to correct suspension geometry and increase strength. Equipped with ICON’s Delta Joint PRO, these UCAs provide up to 90 degrees of articulation, maximizing suspension travel while eliminating bind and improving durability.

Complete Billet Rear Link System

The rear suspension includes billet aluminum upper and lower links designed to improve axle control, increase articulation, and enhance overall durability. These components ensure consistent handling and stability whether on the highway or navigating technical terrain.

Front Sway Bar Drop Kit for Geometry Correction

A front sway bar drop kit is included to maintain proper sway bar angles after lifting, improving handling characteristics and ensuring optimal suspension performance across the entire travel range.

Engineered for Maximum Performance and Durability

Constructed from CNC-machined 6061 aircraft-grade aluminum and premium shock components, this system is fully rebuildable and revalvable for long-term performance. It is designed to handle demanding off-road environments while maintaining excellent on-road comfort.

Complete Bolt-On Suspension Solution

This Stage 2 system is a comprehensive bolt-on upgrade that dramatically enhances ride quality, wheel travel, and vehicle capability without requiring permanent modifications. It is ideal for overlanding, towing, and high-performance off-road driving.

Specifications

  • Vehicle Fitment: 2022–2025 Toyota Tundra
  • Front Lift Height: 1.25"–3.25" Adjustable
  • Rear Lift Height: ~1"–2" (varies by setup)
  • Front Shocks: ICON 3.0 Series Remote Reservoir Coilovers with CDXS
  • Rear Shocks: ICON 3.0 Series Remote Reservoir Shocks with CDXS
  • Upper Control Arms: Billet Aluminum with Delta Joint PRO
  • Rear Links: Billet Upper & Lower Link System
  • Damping Control: CDXS External Compression Adjustment
  • Suspension Travel: Increased Wheel Travel Over Stock
  • Recommended Tire Size: Up to 35"
  • Shock Construction: CNC Machined 6061 Aluminum, Large 3.0 Bodies
  • Reservoir Type: Remote Reservoir for Maximum Cooling
  • Serviceability: Fully Rebuildable & Revalvable
  • Install Type: Bolt-On System
  • Use Case: Daily Driving, Towing, Overlanding, High-Performance Off-Road
