Product Description

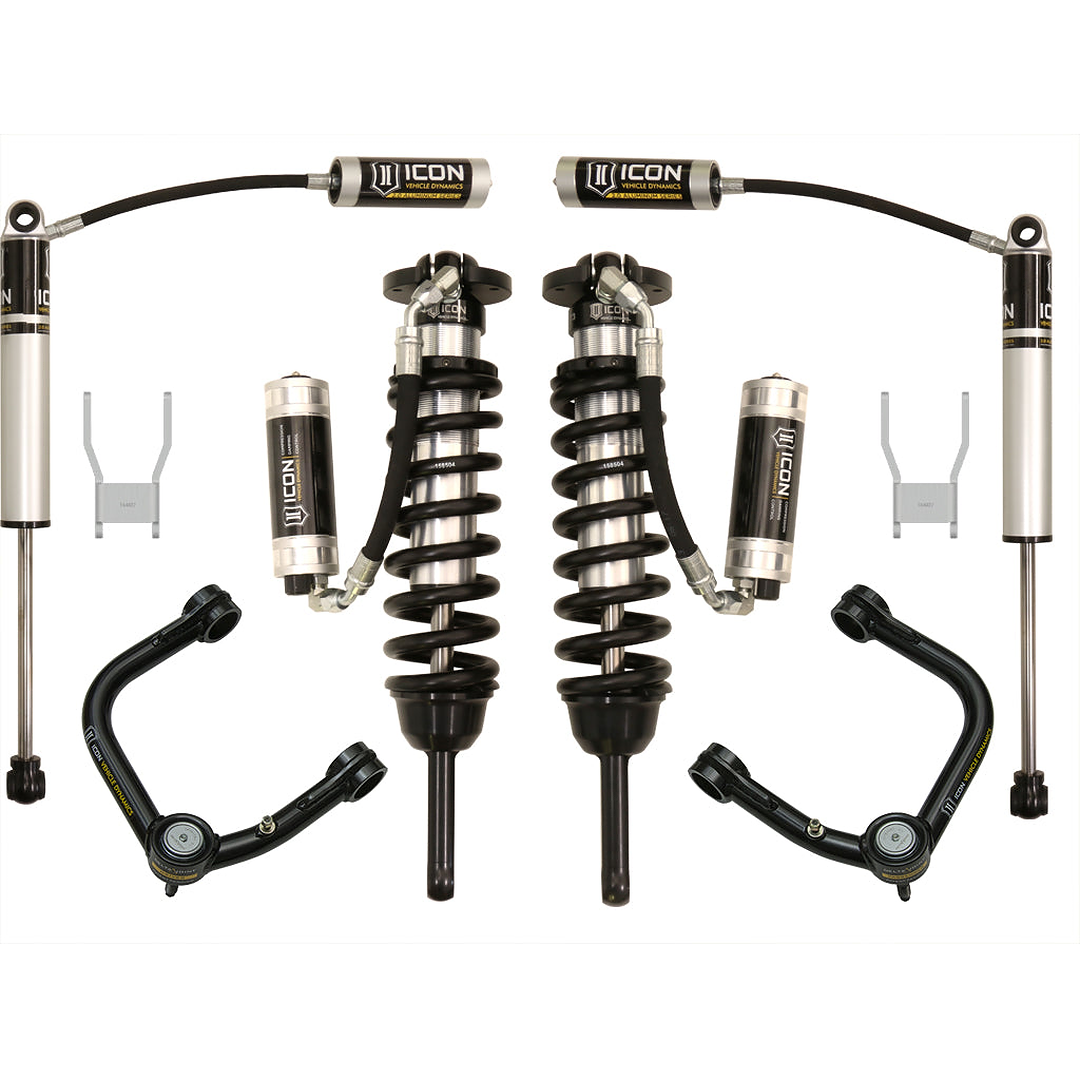

ICON 2005-2011 Toyota Hilux 0-3" Lift Stage 5 Suspension System (Tubular UCA) (K53140T)

The ICON Vehicle Dynamics Stage 5 Suspension System for the 2005–2011 Toyota Hilux is a premium, performance-driven upgrade engineered to dramatically improve ride quality, increase wheel travel, and enhance off-road capability. Designed with global Hilux applications in mind, this system features 2.5 Series remote reservoir coilovers with CDCV adjustability, tubular upper control arms, and matched rear shocks to deliver exceptional control, durability, and versatility across all terrains.

Adjustable 0–3” Lift for Versatile Performance

The front coilovers provide adjustable lift from 0 to 3 inches, allowing you to fine-tune ride height for larger tires and improved ground clearance. This flexibility makes the system ideal for both daily driving and demanding off-road conditions.

2.5 Series Remote Reservoir Coilovers with CDCV

ICON’s 2.5 Series coilovers feature remote reservoirs that increase oil capacity and reduce heat buildup, ensuring consistent damping performance. Equipped with CDCV (Compression Damping Control Valve), these shocks offer external adjustability so you can dial in ride quality for any terrain or load condition.

Tubular Upper Control Arms for Strength and Geometry

Heavy-duty tubular upper control arms are included to improve suspension geometry and alignment at increased ride heights. These UCAs enhance durability while allowing proper camber and caster adjustment for optimal handling and tire wear.

Balanced Rear Suspension with Remote Reservoir Shocks

The rear suspension utilizes ICON 2.0 Aluminum Series remote reservoir shocks, providing excellent damping control and heat dissipation. A rear shackle system is included to maintain factory payload capacity while improving ride height and suspension travel.

Vehicle-Specific Shock Tuning

ICON engineered this system specifically for the Hilux platform, accounting for its chassis characteristics and varying payload demands. The result is a well-balanced suspension system that delivers consistent performance across a wide range of driving conditions.

Built for Durability and Long-Term Performance

Constructed with CNC-machined 6061 aircraft-grade aluminum components, CAD-plated shock bodies, and FK rod end bearings, this system is designed for maximum strength and longevity. All shocks are fully rebuildable and revalvable for long-term serviceability.

Complete Bolt-On Suspension System

This Stage 5 system is a 100% bolt-on upgrade requiring no cutting or welding, making installation straightforward while delivering a significant improvement in ride quality, control, and off-road capability.

Specifications

  • Vehicle Fitment: 2005–2011 Toyota Hilux
  • Front Lift Height: 0"–3" Adjustable
  • Rear Lift Height: ~1"–2" (via rear shackle)
  • Front Shocks: ICON 2.5 Series Remote Reservoir Coilovers with CDCV
  • Rear Shocks: ICON 2.0 Aluminum Series Remote Reservoir Shocks
  • Upper Control Arms: Tubular Steel Construction
  • Rear Components: Rear Shackle Kit Included
  • Damping Control: CDCV External Compression Adjustment
  • Suspension Travel: Increased Wheel Travel Over Stock
  • Recommended Tire Size: Up to 33" x 11.25"
  • Shock Construction: CNC Machined 6061 Aluminum with CAD-Plated Bodies
  • Front Shock Shafts: 7/8"
  • Rear Shock Shafts: 5/8"
  • Bearings: FK Rod End Bearings
  • Serviceability: Fully Rebuildable & Revalvable
  • Install Type: 100% Bolt-On System
  • Use Case: Daily Driving, Overlanding, Off-Road Performance
