Product Description

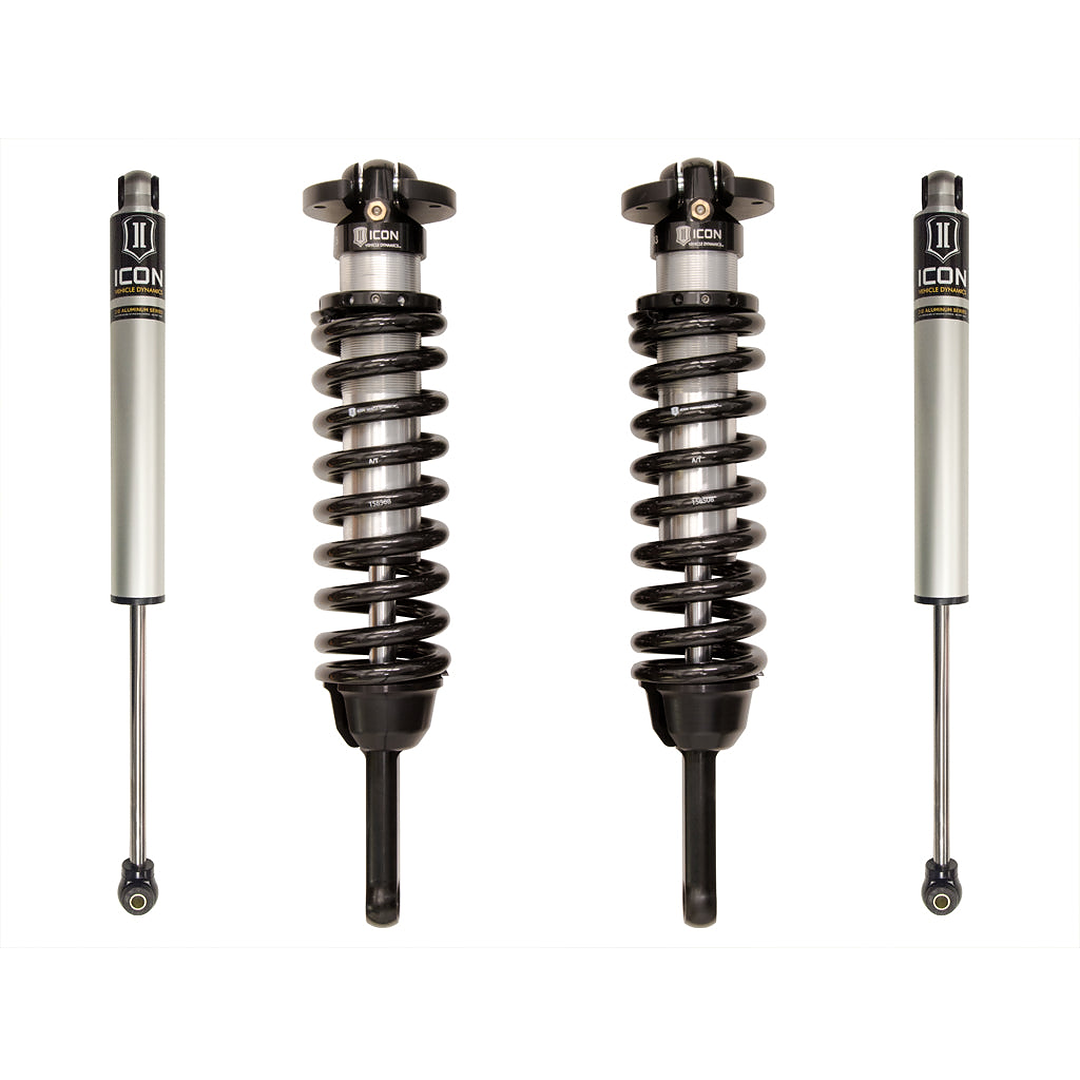

ICON 2005-2011 Toyota Hilux, 0-3" Lift, Stage 1 Suspension System (K53136)

The ICON Vehicle Dynamics Stage 1 Suspension System is a performance-focused upgrade engineered specifically for 2005–2011 Toyota Hilux models. Designed to improve ride quality, increase wheel travel, and enhance off-road capability, this system includes vehicle-specific tuned 2.5 Series front coilovers and 2.0 Aluminum Series rear shocks. Built to handle diverse driving conditions worldwide, this suspension system delivers improved handling, durability, and comfort whether on-road or off-road.

Adjustable 0–3” Front Lift for Versatile Performance

The included ICON 2.5 Series front coilovers feature adjustable ride height from 0” to 3”, allowing drivers to level the vehicle and accommodate larger tire and wheel combinations. This flexibility enhances ground clearance and vehicle stance while maintaining balanced suspension performance.

2.5 Series Coilovers with Internal Reservoirs

Front coilovers utilize internal reservoir technology to improve heat dissipation and maintain consistent damping performance. ICON-engineered coil springs deliver superior ride feel throughout the suspension travel range, improving control across varied terrain conditions.

2.0 Aluminum Series Rear Shocks

The system includes ICON 2.0 Aluminum Series monotube rear shocks designed to complement the front coilovers. These shocks provide balanced front-to-rear performance, ensuring improved ride stability and comfort across both highway and off-road driving.

Vehicle-Specific Shock Tuning

ICON engineers developed this system specifically for the Hilux platform, accounting for the vehicle’s chassis characteristics and varied global usage conditions. This precise tuning results in improved shock damping and enhanced durability across different terrain types and payload conditions.

Increased Wheel Travel and Ride Quality

The Stage 1 system increases suspension travel compared to factory components, improving traction and overall ride comfort without affecting towing capability. Enhanced articulation allows better tire contact with the ground, improving vehicle control on uneven surfaces.

Durable CNC-Machined Components

ICON uses high-quality CNC-machined 6061 aircraft-grade aluminum components and corrosion-resistant finishes to ensure long-term durability. Heavy-duty construction improves reliability and maintains consistent suspension performance over extended use.

Designed for Everyday and Off-Road Use

This system provides a strong foundation for improving overall vehicle capability while maintaining everyday drivability. It is ideal for drivers seeking better ride comfort, improved control, and enhanced off-road performance from their Hilux.

Specifications

  • Vehicle Fitment: 2005–2011 Toyota Hilux
  • SKU: K53136
  • Lift Height: 0"–3" Adjustable Front Lift
  • Rear Lift Height: Vehicle Dependent (Rear Springs Optional)
  • Front Shocks: ICON 2.5 Series Coilovers (Internal Reservoir)
  • Rear Shocks: ICON 2.0 Aluminum Series Monotube Shocks
  • Front Coil Springs: ICON-Engineered Performance Coil Springs
  • Shock Body Construction: Corrosion-Resistant CAD-Plated Aluminum
  • Shock Shaft Size: 7/8"
  • Suspension Travel: Increased Wheel Travel Over Stock
  • Recommended Tire Size: Up to 33" x 11.25" (Minor Trimming May Be Required)
  • Recommended Wheels: 17x8.5" with 0mm Offset
  • Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
  • Serviceability: Fully Rebuildable and Revalvable Shocks
  • Install Type: Bolt-On System
  • Compatibility Note: Rear Lift Springs Available Separately for Additional Rear Height
  • Use Case: Daily Driving, Work Trucks, Overlanding, Off-Road Performance
