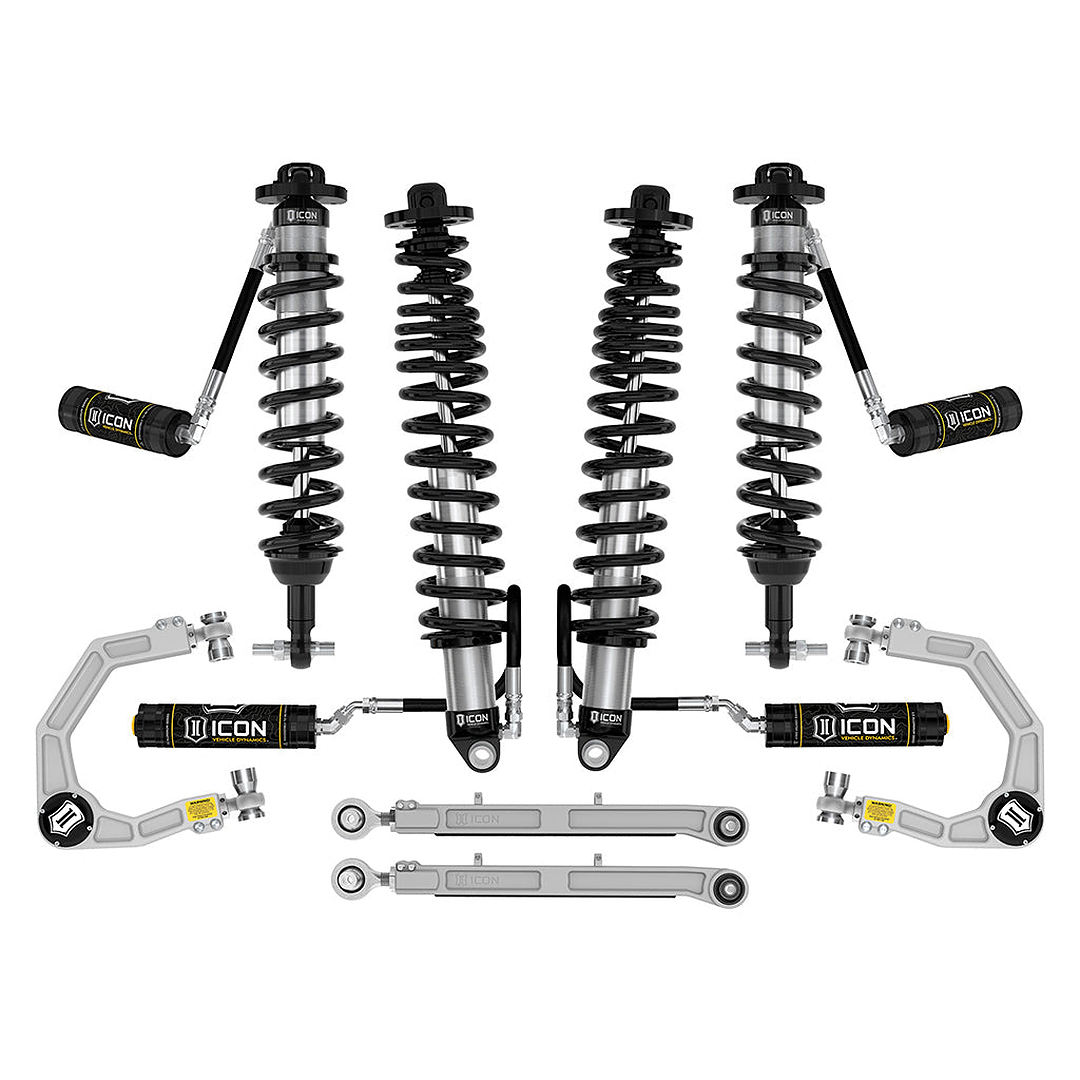

ICON 2021-2026 Ford Bronco Non-Sasquatch 3-4" Lift Stage 5 Suspension System (Billet, Heavy Rate Rear Springs) (K40005X)

The ICON Vehicle Dynamics Stage 5 Suspension System is a premium, high-performance upgrade designed for 2021–2026 Ford Bronco models without the Sasquatch package. Engineered to deliver maximum suspension travel, superior damping control, and exceptional ride quality, this system is ideal for serious off-road enthusiasts and overlanders. Featuring remote reservoir coilovers, billet aluminum components, and heavy-rate rear springs, it provides unmatched performance both on and off the trail.

Adjustable 3–4” Lift for Maximum Clearance

This system provides adjustable front lift from 3 to 4 inches and 2 to 3 inches of rear lift, allowing for increased ground clearance, improved approach angles, and fitment of larger wheel and tire combinations.

2.5 Series Remote Reservoir Coilovers

ICON 2.5 Series coilovers with remote reservoirs are precision-valved for the Bronco platform, offering exceptional damping performance and heat dissipation. These shocks maintain consistent performance during aggressive off-road driving and extended use.

CDCV Adjustable Compression Damping

Equipped with ICON’s Compression Damping Control Valve (CDCV), this system provides 10 levels of compression adjustment. This allows you to fine-tune ride quality and performance for different terrains, loads, and driving styles.

Billet Aluminum Upper Control Arms with Delta Joint PRO

CNC-machined billet aluminum upper control arms improve suspension geometry, increase strength, and provide additional alignment adjustability. Featuring ICON’s Delta Joint PRO, they deliver high articulation, reduced bind, and long-term durability in harsh conditions.

Billet Rear Lower Links for Strength and Articulation

Heavy-duty billet aluminum rear lower links increase rear suspension strength and allow for improved articulation. These links feature dual-durometer bushings and high-quality rod ends for optimal performance, durability, and adjustability.

Heavy-Rate Rear Coil Springs

Heavy-rate rear coil springs are designed to support additional weight from gear, armor, or overlanding setups while maintaining ride height and stability. This ensures consistent performance even under heavy loads.

Maximum Travel and Balanced Performance

ICON engineered this Stage 5 system to maximize usable wheel travel and provide a balanced suspension setup front to rear. The result is improved traction, stability, and control across all terrain types without sacrificing on-road comfort.

Specifications

  • Vehicle Fitment: 2021–2026 Ford Bronco (Non-Sasquatch Models)
  • Lift Height: 3–4" Front / 2–3" Rear
  • Front Shocks: ICON 2.5 Series Remote Reservoir Coilovers w/ CDCV
  • Rear Shocks: ICON 2.5 Series Remote Reservoir Coilovers w/ CDCV
  • Upper Control Arms: Billet Aluminum UCAs with Delta Joint PRO
  • Rear Links: Billet Aluminum Adjustable Lower Links
  • Rear Springs: Heavy-Rate Coil Springs
  • Damping Adjustment: 10-Position Compression Adjustment (CDCV)
  • Suspension Travel: Increased Wheel Travel Over Stock
  • Shock Construction: CAD-Plated Aluminum Bodies with 7/8" Shafts
  • Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
  • Recommended Tire Size: Up to 37" (May Require Additional Modifications)
  • Install Type: Bolt-On System
  • Compatibility Notes: Designed for Non-Sasquatch Models Only
  • Use Case: Off-Road, Overlanding, Daily Driving
