ICON 2023-2025 Toyota Sequoia, 3-4.5" Lift, Stage 5 Suspension System, Tubular (K53235T)

ICON 2023-2025 Toyota Sequoia 3-4.5" Lift Stage 5 Suspension System (Tubular)

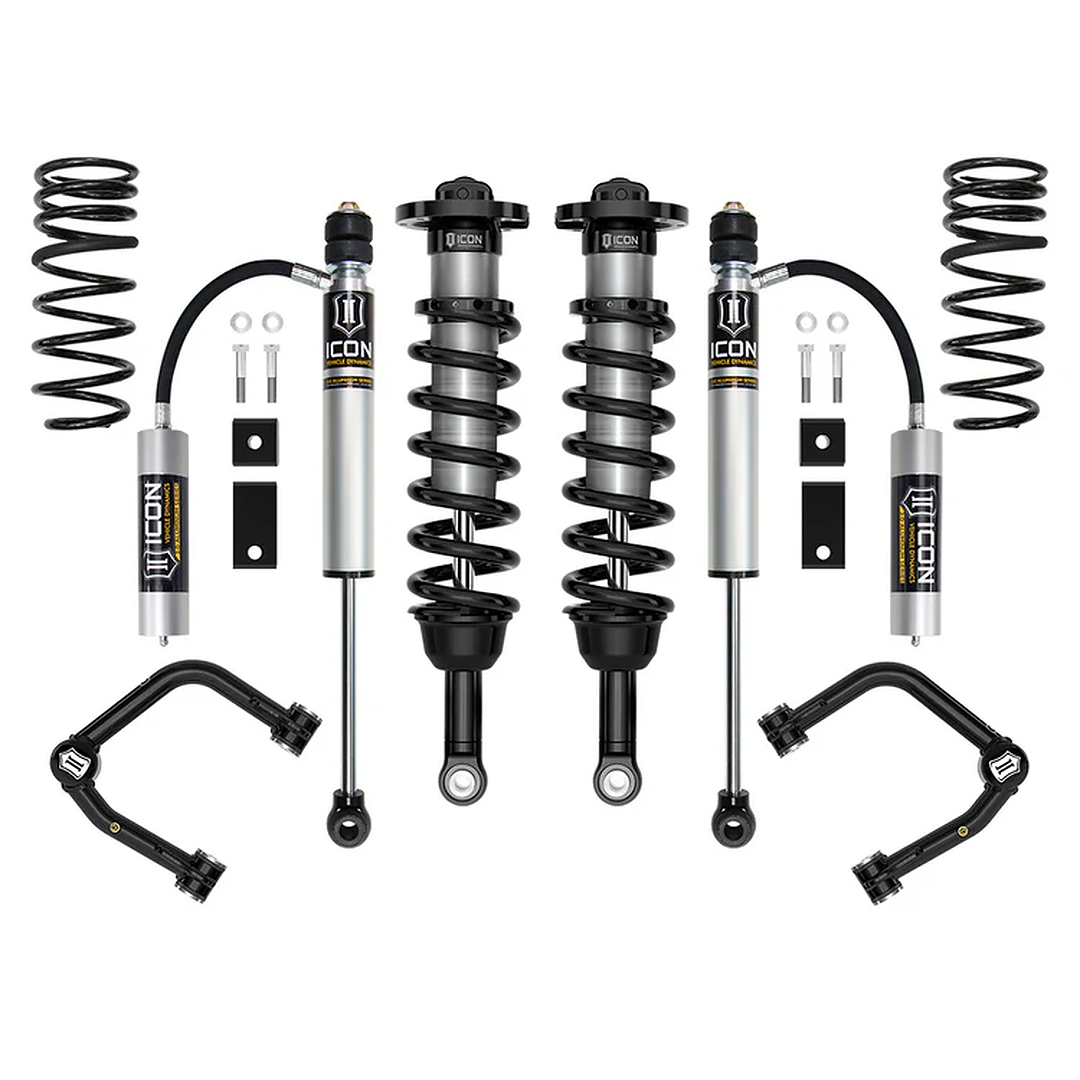

The ICON Vehicle Dynamics Stage 5 Suspension System (K53235T) is a top-tier, fully engineered suspension upgrade for the 2023–2025 Toyota Sequoia. Building upon the Stage 4 system, this kit adds remote reservoir rear shocks for improved damping consistency and heat dissipation under extreme conditions. Designed for serious off-road performance and overland builds, this system delivers increased wheel travel, improved suspension geometry, and the ability to run up to 35” tires while maintaining excellent on-road comfort.

3”–4.5” Adjustable Front Lift for Maximum Clearance

ICON 2.5 Series front coilovers provide adjustable lift from 3” to 4.5” over stock, allowing precise tuning for ride height, tire fitment, and suspension geometry. This adjustability enables aggressive stance setups while maintaining proper alignment and drivability.

2.5 Series Coilovers with Internal Reservoirs

The front suspension features ICON’s 2.5 Series internal reservoir coilovers, engineered for superior heat management and consistent damping performance. Increased piston area and vehicle-specific valving deliver up to 40% more wheel travel compared to stock while maintaining a smooth, controlled ride.

Tubular Upper Control Arms with Delta Joint PRO

Heavy-duty tubular upper control arms are included to correct suspension geometry and improve durability. Equipped with ICON’s Delta Joint PRO, they provide up to 90 degrees of articulation, eliminate bind, and maximize usable suspension travel for demanding off-road conditions.

Sway Bar Drop Kit for Improved Suspension Cycling

The included sway bar drop brackets reduce preload and binding in the factory sway bar system, allowing the suspension to cycle more freely through its full range of motion. This improves articulation and prevents unnecessary stress on OEM components.

Dual-Rate Rear Coil Springs for Comfort and Load Handling

The dual-rate rear coil springs provide a soft initial spring rate for ride comfort and a firmer secondary rate for improved load handling and bottom-out resistance. This design delivers a balanced ride both unloaded and when carrying overland gear.

2.0 Aluminum Series Remote Reservoir Rear Shocks

Upgrading from internal reservoir shocks, the included ICON 2.0 Aluminum Series remote reservoir rear shocks offer improved cooling and consistent damping during extended off-road use. This results in better performance, reduced fade, and enhanced control in harsh environments.

Maximum Wheel Travel and Balanced Performance

This Stage 5 system is engineered to provide up to 40% increased front wheel travel over stock while maintaining proper suspension geometry and drivetrain reliability. The combination of coilovers, UCAs, and remote reservoir shocks ensures a balanced and capable suspension system for all terrains.

Specifications

• Vehicle Fitment: 2023–2025 Toyota Sequoia
• Lift Height: 3”–4.5” Adjustable Front Lift / ~0"–2" Rear Lift (varies by trim)
• Front Shocks: ICON 2.5 Series Coilovers (Internal Reservoir)
• Rear Shocks: ICON 2.0 Aluminum Series Remote Reservoir
• Rear Springs: Dual-Rate Coil Springs
• Upper Control Arms: Tubular UCAs with Delta Joint PRO
• Sway Bar Drop Kit: Included
• Suspension Travel: Up to ~40% Increase Over Stock
• Shock Construction: 2.5” Aluminum Body Front / 2.0” Aluminum Body Rear
• Recommended Tire Size: Up to 35" x 12.50"
• Material: High-Strength Tubular Steel & Aircraft-Grade Aluminum Components
• Serviceability: Fully Rebuildable & Revalvable Shocks
• Install Type: Bolt-On Suspension System
• Use Case: Overlanding, Off-Road Performance, Daily Driving
