Product Description

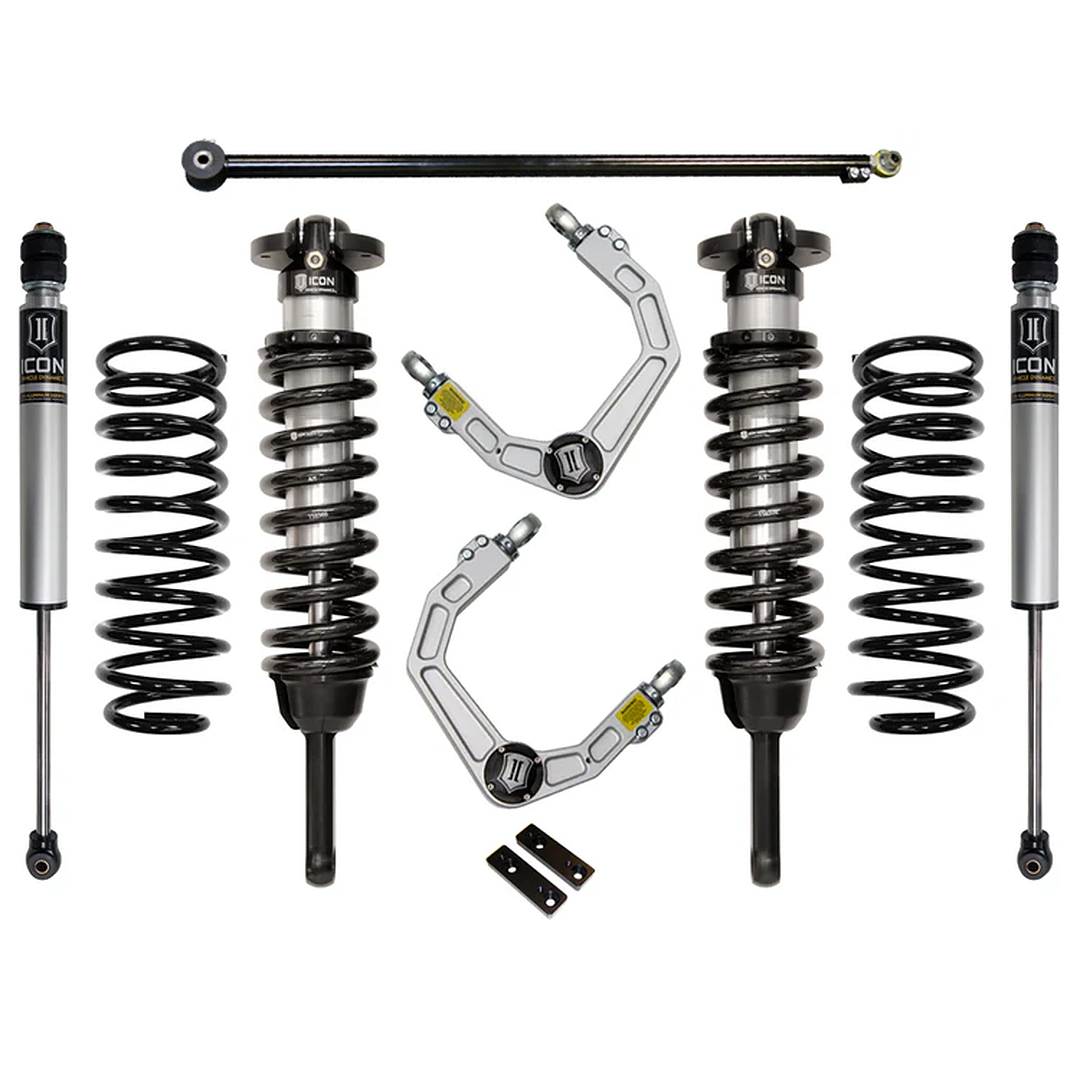

ICON 2010-Up Lexus GX460 0-3.5" Lift Stage 2 Suspension System (Billet UCA)

The ICON Vehicle Dynamics Stage 2 Suspension System (K53182) is a premium performance upgrade engineered for the 2010–2024 Lexus GX460. Designed to significantly increase wheel travel, improve damping control, and enhance overall ride quality, this system builds upon Stage 1 by adding extended travel coilovers and billet aluminum upper control arms. Ideal for both daily driving and serious off-road use, this system delivers a balanced combination of comfort, strength, and precision handling.

Adjustable 0–3.5” Front Lift for Versatile Performance

ICON 2.5 Series extended travel coilovers provide adjustable lift from 0 to 3.5 inches, allowing precise tuning for ride height, tire clearance, and suspension geometry. This adjustability supports larger, more aggressive wheel and tire combinations while maintaining optimal drivability.

2.5 Series Extended Travel Coilovers with Internal Reservoirs

The front coilovers feature extended travel design with internal reservoirs to improve heat dissipation and maintain consistent damping performance under demanding conditions. This setup increases front wheel travel and enhances control across all terrain types.

Billet Aluminum Upper Control Arms with Delta Joint

This system includes CNC-machined billet aluminum upper control arms designed to correct suspension geometry and improve alignment at increased lift heights. Equipped with ICON’s patented Delta Joint, they combine the durability of a ball joint with the articulation of a uniball for long-lasting, bind-free performance.

Rear Coil Springs and 2.0 Aluminum Series Shocks

The rear suspension is upgraded with 2” lift coil springs and ICON 2.0 Aluminum Series internal reservoir shocks. These components are tuned specifically for the GX460 platform, providing balanced front-to-rear damping, improved ride comfort, and enhanced off-road capability.

Adjustable Rear Track Bar for KDSS Compatibility

An adjustable rear track bar is included to correct axle alignment after lifting and ensure proper geometry on KDSS-equipped models. This improves handling stability and maintains predictable performance both on and off-road.

Engineered for Increased Travel and Bolt-On Installation

This system is designed to maximize suspension travel while maintaining reliability and proper geometry. With a fully bolt-on installation requiring no cutting or welding, it provides a straightforward upgrade path with long-term durability and serviceability.

Specifications

  • Vehicle Fitment: 2010–2024 Lexus GX460
  • Lift Height: 0"–3.5" Adjustable Front Lift / ~2" Rear Lift
  • Front Shocks: ICON 2.5 Series Extended Travel Coilovers (Internal Reservoir)
  • Rear Shocks: ICON 2.0 Aluminum Series (Internal Reservoir)
  • Rear Springs: 2" Lift Coil Springs
  • Upper Control Arms: Billet Aluminum UCAs with Delta Joint
  • Rear Track Bar: Adjustable (KDSS compatible)
  • Suspension Travel: Increased Front Droop and Overall Wheel Travel
  • Shock Construction: CAD-Plated Coilover Bodies with 7/8" Shafts
  • Rear Shock Shafts: 5/8"
  • Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
  • Recommended Tire Size: Up to 33" x 11.50"
  • Serviceability: Fully Rebuildable & Revalvable Shocks
  • Install Type: Bolt-On Suspension System
  • Use Case: Daily Driving, Overlanding, Moderate to Aggressive Off-Road
