Product Description

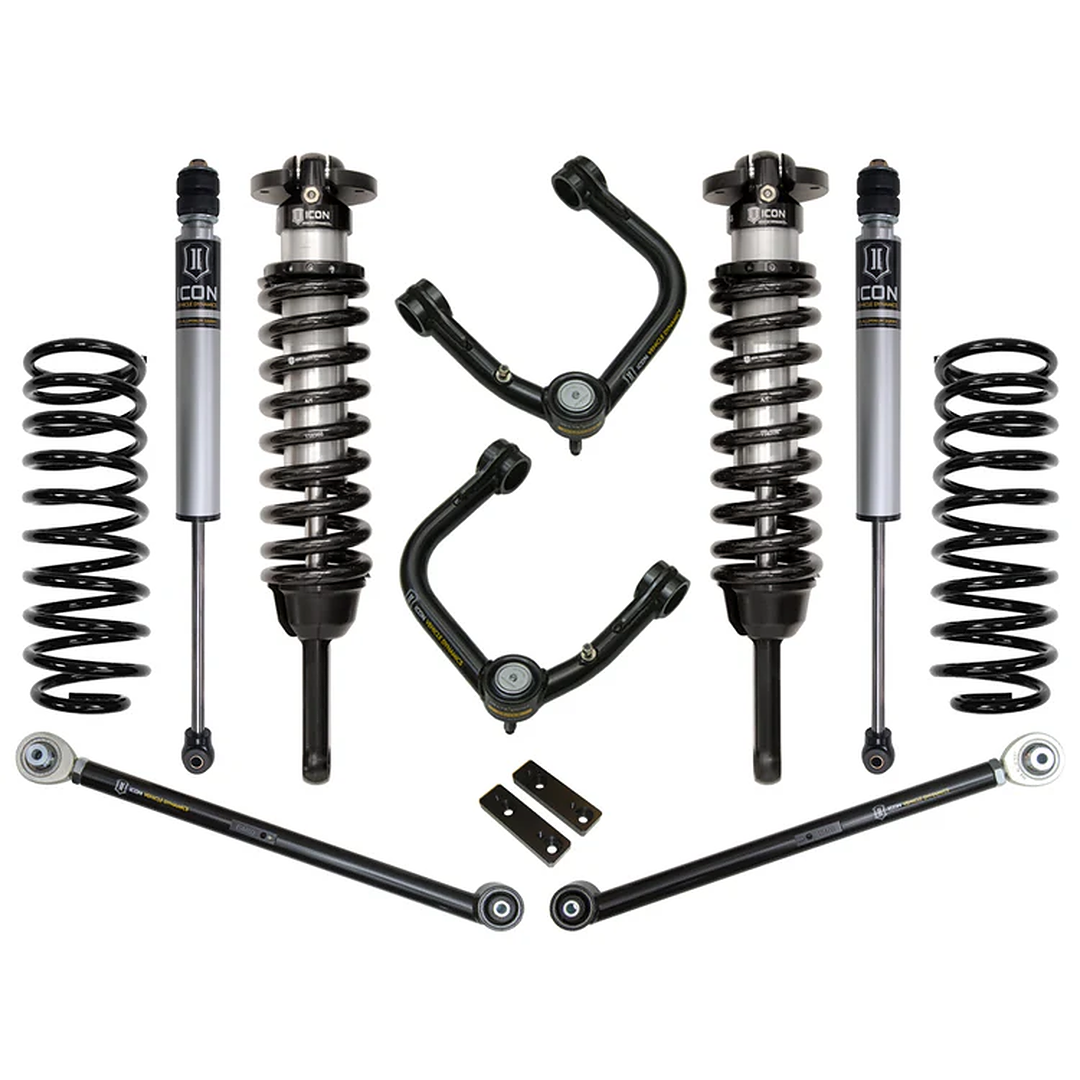

ICON 2010-2024 Toyota 4Runner / 2010-2014 Toyota FJ Cruiser 0-3.5" Lift Stage 3 Suspension System (Tubular UCA) (K53063T)

The ICON Vehicle Dynamics Stage 3 Suspension System is a premium upgrade engineered for 2010–2024 Toyota 4Runner and 2010–2014 Toyota FJ Cruiser platforms. Designed to maximize wheel travel and damping performance, this system delivers exceptional ride quality, improved off-road capability, and precise on-road handling. With extended travel coilovers, tubular upper control arms, and upgraded rear links, it provides a complete, balanced suspension solution for demanding drivers.

Adjustable 0–3.5” Lift for Proper Stance

ICON 2.5 Series coilovers provide adjustable front lift from 0 to 3.5 inches, allowing you to level your vehicle, increase ground clearance, and fit larger, more aggressive wheel and tire combinations.

2.5 Series Extended Travel Coilovers

These high-performance coilovers feature internal reservoirs for improved heat dissipation and consistent damping. Their extended travel design increases front wheel travel, enhancing off-road capability and overall ride control.

Tubular Upper Control Arms with Delta Joint

Heavy-duty tubular upper control arms improve alignment geometry and increase suspension articulation. Equipped with ICON’s Delta Joint, they provide excellent durability, corrosion resistance, and extended service life while maintaining proper alignment at increased ride heights.

Upgraded Tubular Rear Lower Links

This Stage 3 system includes tubular steel rear lower links that are stronger than factory components and feature multi-durometer bushings. They allow for pinion angle adjustment and improved rear suspension geometry for better overall performance.

2” Rear Lift with Balanced Shock Performance

ICON rear coil springs provide approximately 2 inches of rear lift for a level stance, while ICON 2.0 Aluminum Series rear shocks deliver vehicle-specific damping for consistent control and ride quality across all terrains.

Increased Wheel Travel and Ride Quality

Engineered to improve suspension travel and damping characteristics, this system enhances traction, stability, and comfort whether you're navigating rough trails or daily driving on pavement.

Specifications

  • Vehicle Fitment: 2010–2024 Toyota 4Runner / 2010–2014 Toyota FJ Cruiser
  • Lift Height: 0–3.5" Front / ~2" Rear
  • Front Shocks: ICON 2.5 Series Extended Travel Coilovers (Internal Reservoir)
  • Rear Shocks: ICON 2.0 Aluminum Series Internal Reservoir
  • Upper Control Arms: Tubular Steel UCAs with Delta Joint
  • Rear Links: Tubular Steel Adjustable Lower Links
  • Rear Springs: 2” Lift Coil Springs
  • Suspension Travel: Increased Wheel Travel Over Stock
  • Shock Construction: CAD-Plated Aluminum Bodies with 7/8" Shafts
  • Rear Shock Shafts: 5/8"
  • Recommended Tire Size: Up to 33" x 11.50" (Larger may require modifications)
  • Material: CNC-Machined 6061 Aircraft-Grade Aluminum Components
  • Serviceability: Fully Rebuildable & Revalvable Shocks
  • Install Type: Bolt-On System (No Cutting or Welding Required)
  • Use Case: Daily Driving, Overlanding, Off-Road Performance
